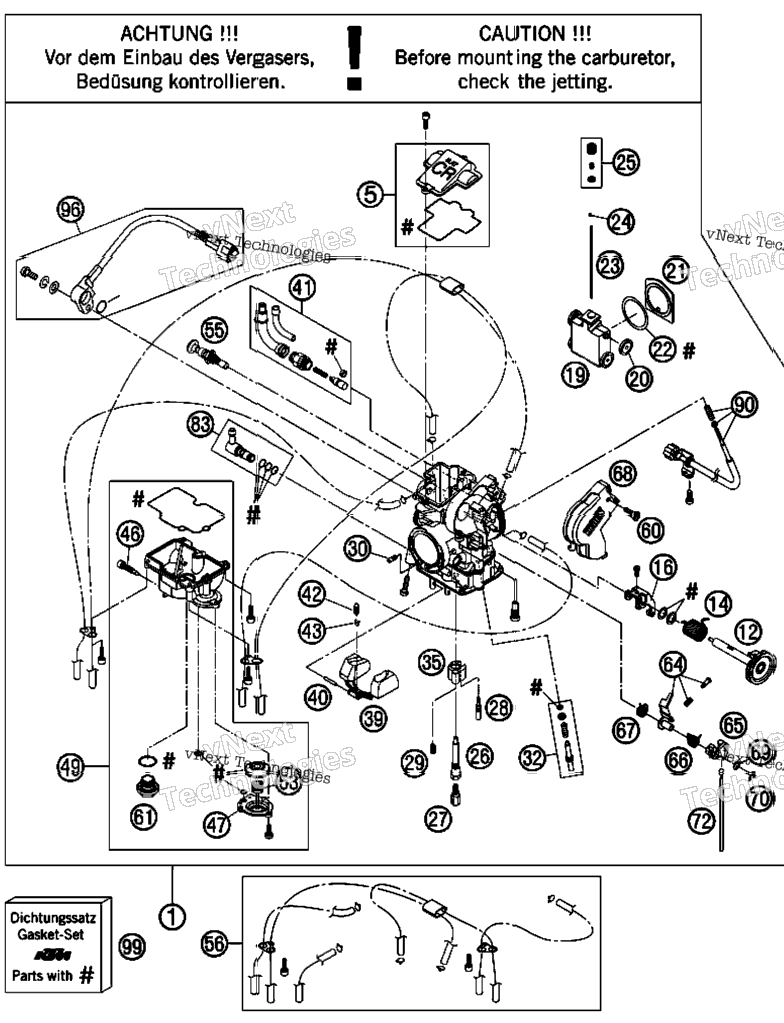

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 77331001100 | CARBURETOR FCR-MX 4125I,TPS 08 | ||
| 1 | 57331027044 | CARBURETOR COVER WITH GASKET | 1 |
| 57331046100 | THROTTLE SHAFT CPL. 06 06 | ||
| 1 | 57331046050 | COIL SPRING THROTTLE SHAFT | 1 |
| 76231035051 | LINK ARM THROTTLE VALVE CPL.07 | ||
| 57331035100 | THROTTLE VALVE CPL. FCRMX 2007 2007 | ||
| 1 | 59031035050 | BUSHING THROTTLE VALVE | 1 |
| 1 | 57331035153 | GASKET PLATE THROTTLE VALVE 04 04 | 1 |
| 1 | 59031035052 | GASKET WASHER THROTTLE VALVE | 1 |
| 1 | 59031021000 | JET NEEDLE KEIHIN OBDTM (As required) | 1 |
| 1 | 59031034000 | JET NEEDLE KEIHIN OBDTN (As required) | 1 |
| 1 | 59031034400 | JET NEEDLE KEIHIN OBDTP (As required) | 1 |
| 1 | 59031034500 | JET NEEDLE KEIHIN OBDTQ (As required) | 1 |
| 1 | 59031034600 | JET NEEDLE KEIHIN OBDTR (As required) | 1 |
| 1 | 59031029000 | BAR CLIP | 1 |
| 1 | 57331032000 | NEEDLE SET SCREW CPL. | 1 |
| 1 | 59031121000 | NEEDLE JET FCR-MX | 1 |
| 1 | 54531623180 | MAIN JET 180 KEIHIN (As required) | 1 |
| 1 | 54531623182 | MAIN JET 182 KEIHIN (As required) | 1 |
| 1 | 54531623185 | MAIN JET 185 KEIHIN (As required) | 1 |
| 1 | 54531623188 | MAIN JET 188 KEIHIN (As required) | 1 |
| 1 | 54531623190 | MAIN JET 190 KEIHIN (As required) | 1 |
| 1 | 54531623192 | MAIN JET 192 KEIHIN (As required) | 1 |
| 1 | 54531623195 | MAIN JET 195 KEIHIN (As required) | 1 |
| 1 | 54531607040 | IDLE JET 40 KEIHIN (As required) | 1 |
| 1 | 54531607042 | IDLE JET 42 KEIHIN (As required) | 1 |
| 1 | 54531607045 | IDLE JET 45 KEIHIN (As required) | 1 |
| 1 | 59031051085 | STARTER JET 85 | 1 |
| 1 | 57331107100 | IDLE AIR JET 100 KEIHIN | 1 |
| 1 | 59031017100 | ADJUST SCREW CPL. FCR-MX | 1 |
| 1 | 57331085000 | BUFFER PLATE | 1 |
| 1 | 57331009000 | FLOAT CPL. | 1 |
| 1 | 57331008000 | ARM PIN FLOAT | 1 |
| 1 | 77031075000 | HOT-STARTER VALVE | 1 |
| 1 | 54631220000 | FLOAT NEEDLE | 1 |
| 1 | 54531621000 | CLAMP | 1 |
| 1 | 76231155000 | DRAIN SCREW + O-RING | 1 |
| 1 | 57331060000 | COVER ACCELERATOR PUMP | 1 |
| 1 | 78031011000 | FLOAT CHAMBER CPL. 08 08 | 1 |
| 1 | 59031059000 | COIL SPRING | 1 |
| 1 | 77031048000 | STARTER VALVE SHORT CPL. | 1 |
| 1 | 57331098000 | BREATH.HOSE FCR-MX KEIHIN CPL. | 1 |
| 1 | 0965050103 | FLAT HEAD SCREW DIN0965-M 5X10 | 1 |
| 1 | 54531699000 | PLUG M 18X1 | 1 |
| 1 | 57331062000 | INTERMEDIATE LEVER CPL. | 1 |
| 1 | 57331056000 | LINK LEVER | 1 |
| 57331059000 | SPRING LINK LEVER | ||
| 1 | 57331159000 | SPRING INTERMEDIATE LEVER | 1 |
| 1 | 57331038200 | CARBURETOR COVER 06 06 | 1 |
| 1 | 57331087000 | WASHER LINK LEVER | 1 |
| 1 | 57331084000 | E-CLIP | 1 |
| 1 | 57331061000 | ROD ACCELERATOR PUMP | 1 |
| 1 | 59031013044 | HOSE CONNECTOR CPL. | 1 |
| 1 | 57331025000 | STOP SCREW CPL. FCR-MX | 1 |
| 1 | 59031077200 | TPS-SENSOR FCRMX 190MM 2006 2006 | 1 |
| 1 | 57331099000 | GASKET SET FCR-MX KEIHIN | 1 |
