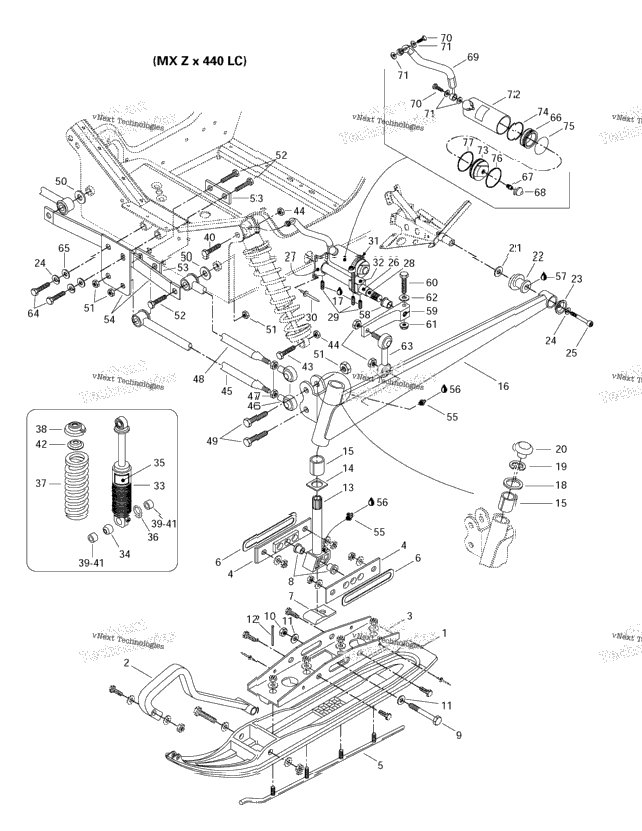

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 572093400 | Plastic Ski MX Z x 440 LC. | ||
| 572093500 | Plastic Handle MX Z x 440 LC. | ||
| 505067900 | Bridge MX Z x 440 LC. | ||
| 505067902 | Reinforcement Plate MX Z x 440 LC. | ||
| 415063000 | Ski Runner MX Z x 440 LC. | ||
| 505068500 | Spacer MX Z x 440 LC. | ||
| 570046800 | Ski Stopper MX Z x 440 LC. | ||
| 415068700 | Cushion MX Z x 440 LC. | ||
| 732601277 | Hex. Screw M12 x 120 MX Z x 440 LC. | ||
| 732610080 | Nut M12 MX Z x 440 LC. | ||
| 4 | 506136400 | FLAT WASHER MX Z x 440 LC. | 4 |
| 371800900 | Cotter Pin MX Z x 440 LC. | ||
| 506139200 | Ski Leg MX Z x 440 LC. | ||
| 506081200 | Wear Plate MX Z x 440 LC. | ||
| 415071300 | Cushion MX Z x 440 LC. | ||
| 506139910 | LH Swing Arm (Yellow) MX Z x 440 LC. | ||
| 506140010 | RH Swing Arm (Yellow) MX Z x 440 LC. | ||
| 1 | 413703000 | Loctite 242, 10 cc MX Z x 440 LC. | 1 |
| 506080900 | Thrust Washer MX Z x 440 LC. | ||
| 2 | 371910400 | CIRCLIP MX Z x 440 LC. | 2 |
| 2 | 572091300 | Cap MX Z x 440 LC. | 2 |
| 2 | 503146700 | WASHER MX Z x 440 LC. | 2 |
| 570062200 | DAMPER MX Z x 440 LC. | ||
| 506079600 | CUP MX Z x 440 LC. | ||
| 4 | 224781140 | Lock Washer 8 mm MX Z x 440 LC. | 4 |
| 2 | 222982565 | Socket Head Screw M8 x 25 MX Z x 440 LC. | 2 |
| 506136200 | Main Tube MX Z x 440 LC. | ||
| 506139000 | Housing MX Z x 440 LC. | ||
| 506141200 | Stabilisator Bar MX Z x 440 LC. | ||
| 486073600 | Stabilisator (Use with 561 7233 00) MX Z x 440 LC. | ||
| 486073800 | Stabilisator (Use with 486 0739 00) MX Z x 440 LC. | ||
| 486074000 | Stabilisator (Use with 486 0741 00) MX Z x 440 LC. | ||
| 6 | 414440800 | Socket Set Screw M8 X 10 MX Z x 440 LC. | 6 |
| XXXX | Not Available As Spare Part - Rivet MX Z x 440 LC. | ||
| 408802000 | Tridon Gear Clamp MX Z x 440 LC. | ||
| 506141500 | Tank Bracket MX Z x 440 LC. | ||
| 415039302 | Take Apart Shock(LH) MX Z x 440 LC. | ||
| 415039300 | Take Apart Shock(RH) MX Z x 440 LC. | ||
| 414562900 | RADIAL BALL-JOINT MX Z x 440 LC. | ||
| 414871400 | HPG Decal MX Z x 440 LC. | ||
| 371910600 | INTERIOR CIRCLIP MX Z x 440 LC. | ||
| 415063300 | Spring (Yellow) MX Z x 440 LC. | ||
| 2 | 503140600 | Spring Stopper MX Z x 440 LC. | 2 |
| 506120200 | BUSHING MX Z x 440 LC. | ||
| 2 | 222006065 | Hex. Screw M10 x 60 MX Z x 440 LC. | 2 |
| 506141700 | Bushing MX Z x 440 LC. | ||
| 2 | 503141600 | Cap MX Z x 440 LC. | 2 |
| 2 | 222005565 | Hex. Screw M10 x 55 MX Z x 440 LC. | 2 |
| 8 | 228501045 | Elastic Stop Nut M10 MX Z x 440 LC. | 8 |
| 580656000 | Long Arm Ass'y MX Z x 440 LC. | ||
| 415042500 | RH Ball Joint MX Z x 440 LC. | ||
| 4 | 228371042 | Hex. Jam Nut M14 MX Z x 440 LC. | 4 |
| 580656100 | Short Arm Ass'y MX Z x 440 LC. | ||
| 222025565 | Hex. Screw M12 x 55 MX Z x 440 LC. | ||
| 2 | 224021251 | Flat Washer 12 mm MX Z x 440 LC. | 2 |
| 8 | 228521045 | Elastic Stop Nut M12 MX Z x 440 LC. | 8 |
| 732601113 | Hex. Screw M12 x 100 MX Z x 440 LC. | ||
| 415061100 | Link Low Plate MX Z x 440 LC. | ||
| 415065300 | Plate Link MX Z x 440 LC. | ||
| 4 | 408200700 | Grease Fitting MX Z x 440 LC. | 4 |
| 413706100 | LITHIUM GREASE, 400 GR MX Z x 440 LC. | ||
| 1 | 293550014 | Grease, Super Lube #823-28 MX Z x 440 LC. | 1 |
| 561723300 | Cushion MX Z x 440 LC. | ||
| 561723300 | Cushion (Use with 486 0736 00) MX Z x 440 LC. | ||
| 486073900 | Cushion (Use with 486 0738 00) MX Z x 440 LC. | ||
| 486074100 | Bushing (Use with 486 0740 00) MX Z x 440 LC. | ||
| 506141100 | Lever-Stabilizer MX Z x 440 LC. | ||
| 2 | 222084565 | Screw-Hex.Cap Din.931 MX Z x 440 LC. | 2 |
| 2 | 228781045 | Elastic Flange Stop Nut M8 MX Z x 440 LC. | 2 |
| 2 | 224081171 | Flat Washer 8 mm MX Z x 440 LC. | 2 |
| 415042300 | Double Ball Joint MX Z x 440 LC. | ||
| 2 | 222082565 | Hex. Screw M8 x 25 MX Z x 440 LC. | 2 |
| 2 | 224080251 | Washer 8 mm MX Z x 440 LC. | 2 |
| 415093812 | FREE PISTON MX Z x 440 LC. | ||
| 2 | 414888314 | AIR VALVE MX Z x 440 LC. | 2 |
| 414888313 | Valve Cap MX Z x 440 LC. | ||
| 415093811 | LH Hose MX Z x 440 LC. | ||
| 415093815 | RH Hose MX Z x 440 LC. | ||
| 4 | 415093810 | Bolt MX Z x 440 LC. | 4 |
| 8 | 415038700 | O-Ring MX Z x 440 LC. | 8 |
| 415093809 | Tank MX Z x 440 LC. | ||
| 415093808 | Guide MX Z x 440 LC. | ||
| 2 | 415093807 | O-Ring MX Z x 440 LC. | 2 |
| 2 | 415093806 | Piston Ring MX Z x 440 LC. | 2 |
| 2 | 415093805 | STOP RING MX Z x 440 LC. | 2 |
| 2 | 415093804 | O-Ring MX Z x 440 LC. | 2 |
