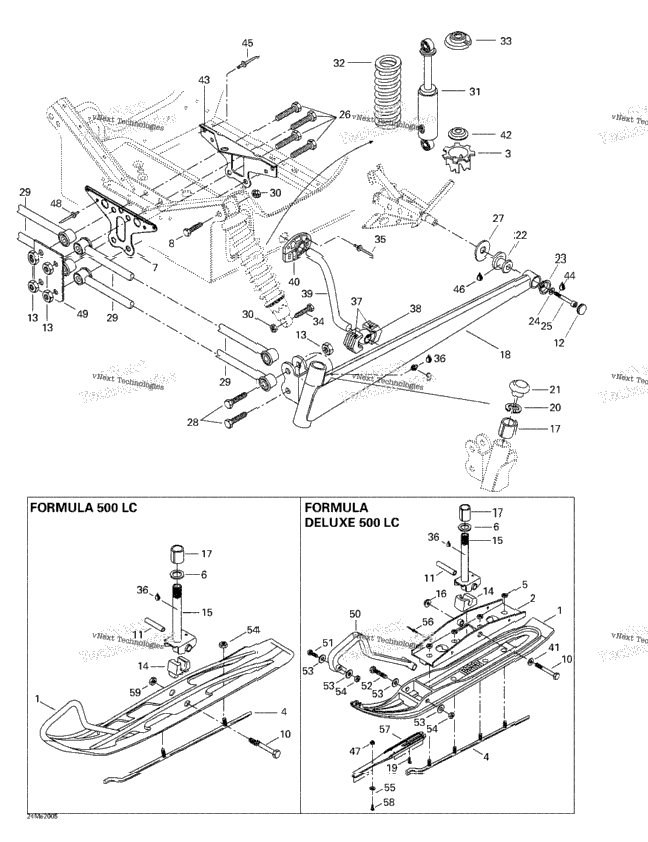

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 505070189 | Ski-Liner Flex Formula DLX 500 LC. | 2 |
| 505070325 | Ski Formula 500 LC. | ||
| 505070055 | Bridge-ass'y Formula DLX 500 LC. | ||
| 2 | 503183700 | Cam 45° | 2 |
| 860502300 | Carbide Runner Kit Formula 500 LC. | ||
| 860501900 | CARBIDE RUNNER Includes 4 - 5. Formula DLX 500 LC. | ||
| 8 | 228501045 | Elastic Stop Nut M10 Formula DLX 500 LC. | 8 |
| 2 | 505070004 | WASHER | 2 |
| 517254800 | Front Link Plate | ||
| 2 | 207006044 | HEX. SCREW M10 X 60 | 2 |
| 2 | 408200700 | Grease Fitting | 2 |
| 2 | 250000001 | HEX. SCREW M10 X 110 | 2 |
| 505070323 | Spacer Formula 500 LC. | ||
| 2 | 506133300 | Spacer Formula DLX 500 LC. | 2 |
| 2 | 572045900 | CAP Formula DLX 500 LC. | 2 |
| 8 | 232521414 | NUT-STOP ELASTIC DIN.985 | 8 |
| 505070324 | Ski Stopper Formula 500 LC. | ||
| 2 | 506151233 | Ski Stopper Formula DLX 500 LC. | 2 |
| 505070321 | Ski Leg Formula 500 LC. | ||
| 506151234 | Ski Leg Formula DLX 500 LC. | ||
| 2 | 233201414 | Hex. Flange Elastic Nut M10 Formula DLX 500 LC. | 2 |
| 4 | 505070003 | Cushion | 4 |
| 505070380 | RH Swing Arm (Silver) | ||
| 505070381 | LH Swing Arm (Silver) | ||
| 12 | 250000016 | Phillips Pan Head Quadrex Screw Formula DLX 500 LC. | 12 |
| 2 | 371910400 | CIRCLIP | 2 |
| 2 | 572091300 | Cap | 2 |
| 570062200 | DAMPER | ||
| 2 | 506115800 | Cup | 2 |
| 2 | 234181401 | Lock Washer 8 mm | 2 |
| 2 | 205082544 | Socket Head Screw M8 X 25 | 2 |
| 230020044 | Hex. Screw M12 x 100 | ||
| 2 | 503146700 | WASHER | 2 |
| 207025044 | Hex. Screw M12 x 50 | ||
| 580649700 | Arm Ass'y (42") | ||
| 4 | 233601416 | Elastic Locking Nut M10 X 1.5 | 4 |
| 505070012 | Shock | ||
| 415075900 | Spring (Yellow) Formula 500 LC. | ||
| 415035900 | Shock Spring (Black) Formula DLX 500 LC. | ||
| 2 | 503140600 | Spring Stopper | 2 |
| 2 | 207005544 | Hex. Screw M10 X 55 | 2 |
| 8 | 390402300 | Pop Rivet 3/16" | 8 |
| 219700417 | SYNTHETIC GREASE, 400 G | ||
| 572069800 | Block Sliding | ||
| 505070068 | Ball Joint | ||
| 505070069 | Stabilisator | ||
| 2 | 505070139 | BUSHING | 2 |
| 2 | 732900049 | Washer Formula DLX 500 LC. | 2 |
| 2 | 503187500 | Spring Guide | 2 |
| 517254900 | Rear Link Plate | ||
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | 390909200 | Avex Rivet | 2 |
| 1 | 293550014 | Grease, Super Lube #823-28 | 1 |
| 4 | 233251414 | Hex. Flange Elastic Nut M5 Formula DLX 500 LC. | 4 |
| 390404900 | Rivet pop 1/4" | ||
| 518306700 | Support | ||
| 2 | 572101000 | Plastic Handle (Europe) Formula DLX 500 LC. | 2 |
| 2 | 207085044 | Hex. Screw M8 X 50 Formula DLX 500 LC. | 2 |
| 2 | 230080044 | SCREW-HEX. M8 X 100 Formula DLX 500 LC. | 2 |
| 8 | 234081410 | Flat Washer 8 mm Formula DLX 500 LC. | 8 |
| 4 | 232581414 | Hex. Elastic Stop Nut M8 | 4 |
| 4 | 234061410 | Flat Washer 6 mm Formula DLX 500 LC. | 4 |
| 390911100 | RIVET_POP 1/4 Formula DLX 500 LC. | ||
| 505070232 | PROACTIVE CONTROL (GT ONLY) Formula DLX 500 LC. | ||
| 250000015 | Socket Head Screw M5 x 25 (Europe) Formula DLX 500 LC. | ||
| 2 | 233601416 | Elastic Locking Nut M10 X 1.5 Formula 500 LC. | 2 |
