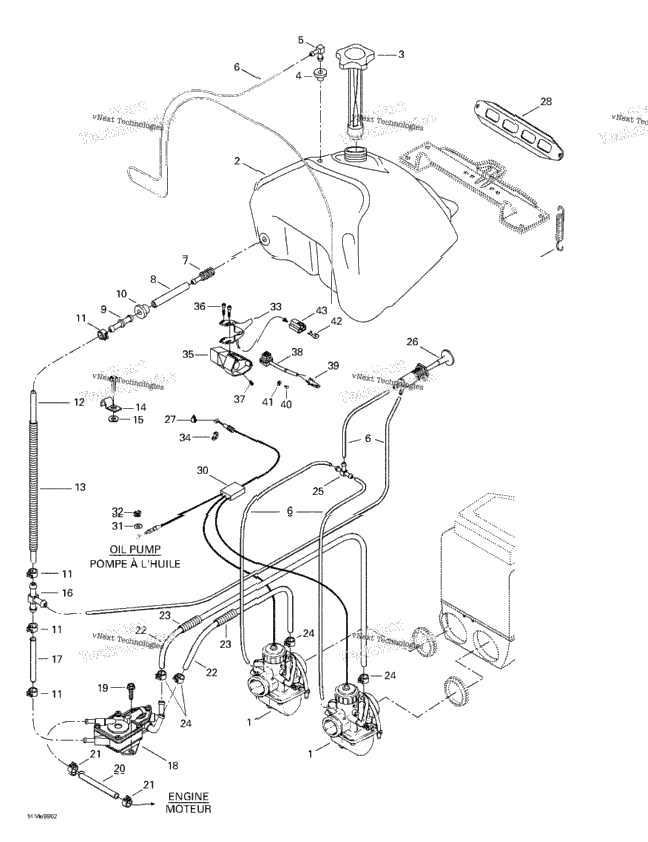

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 403138527 | Carburetor VM 38-408 (PTO) Formula Z 500. | ||
| 403138528 | Carburetor VM 38-409 (MAG) Formula Z 500. | ||
| 403138525 | VM 40-105 Carburetor (PTO) Formula Z 583. | ||
| 403138526 | VM 40-106 Carburetor (MAG) Formula Z 583. | ||
| 403138513 | Carburetor VM 40-109 (PTO) Formula Z 670. | ||
| 403138514 | Carburetor VM 40-110 (MAG) Formula Z 670. | ||
| 513032948 | Fuel Tank Formula Z 500. | ||
| 513032921 | Fuel Tank Formula Z 583. Formula Z 670. | ||
| 1 | 572161200 | Fuel Tank Cap Formula Z 500. | 1 |
| 1 | 572039600 | Cap-Fuel Tank Formula Z 583. Formula Z 670. | 1 |
| 1 | 570135100 | Grommet | 1 |
| 1 | 414814100 | Male Connector | 1 |
| 1 | 219704409 | Was 415080100 Fuel Line Primer 3,2mm | 1 |
| 1 | 414865700 | Fuel Filter Formula Z 500. | 1 |
| 1 | 414872100 | Fuel Filter Strainer Formula Z 583. Formula Z 670. | 1 |
| XXXX | Not Available As Spare Part - Fuel Line Formula Z 500. | ||
| 1 | 415005700 | Hose Formula Z 583. Formula Z 670. | 1 |
| 1 | 414518500 | Male Connector Formula Z 500. | 1 |
| 1 | 414872700 | Male Connector Formula Z 583. Formula Z 670. | 1 |
| 1 | 570045500 | Grommet Formula Z 500. | 1 |
| 1 | 570273900 | Grommet Formula Z 583. Formula Z 670. | 1 |
| 4 | 414554800 | Spring Clamp Formula Z 500. | 4 |
| 4 | 414655700 | Spring Clamp Formula Z 583. Formula Z 670. | 4 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long Formula Z 500. | 1 |
| 219704411 | FUEL LINE 10000MM LONG Formula Z 583. Formula Z 670. | ||
| 1 | 219704407 | Tubing 10 MM 1000MM Long Formula Z 500. | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long Formula Z 583. Formula Z 670. | 1 |
| 1 | 415018200 | CLIP | 1 |
| 1 | 224061121 | Flat Washer Formula Z 583. Formula Z 670. | 1 |
| 1 | 414222500 | T-fitting | 1 |
| 1 | 415119300 | T-Fitting | 1 |
| 415111400 | Formed Tube Formula Z 583. Formula Z 670. | ||
| 403801100 | FUEL PUMP ASS'Y Formula Z 500. | ||
| 513032919 | Fuel Pump Ass'y Formula Z 583. Formula Z 670. | ||
| 732601120 | Hex. Screw M6 x 12 | ||
| 1 | 219704439 | Hose 1/4 1000Mm Long - Call Your Local BRP Dealership | 1 |
| 2 | 414415200 | Spring Clamp | 2 |
| 415117800 | Tube | ||
| 1 | 219704407 | Tubing 10 MM 1000MM Long | 1 |
| 4 | 414420700 | Spring Clamp | 4 |
| 1 | 414222400 | T-Fitting | 1 |
| 1 | 415060500 | Primer | 1 |
| 413701700 | Dielectric Grease, 3 Oz | ||
| 517249200 | Fuel Tank Bracket | ||
| 2 | 517182100 | SPRING | 2 |
| 414968801 | Throttle Cable and Housing (38 mm) Formula Z 500. | ||
| 414966201 | Throttle Cable and Housing (40 mm) Formula Z 583. Formula Z 670. | ||
| 1 | 414753300 | Washer | 1 |
| 1 | 414753500 | Circlip | 1 |
| 1 | 572056900 | Heat Throttle Handle Ass'y (38 mm) Formula Z 500. | 1 |
| 572057000 | Heat Throttle Handle Ass'y (40 mm) Formula Z 583. Formula Z 670. | ||
| 1 | 414274500 | Circlip | 1 |
| 572028600 | Throttle Handle Housing | ||
| 4 | 732601143 | Flange Screw | 4 |
| 1 | 414440800 | Socket Set Screw M8 X 10 | 1 |
| 1 | 414612700 | Kill Switch | 1 |
| 409210000 | MALE TERMINAL | ||
| 1 | 414473200 | Screw | 1 |
| 391300700 | WASHER-FLAT | ||
| 3 | 515175253 | FEMALE TERMINAL | 3 |
| 409008500 | Female Terminal Housing (3 circuits) |
