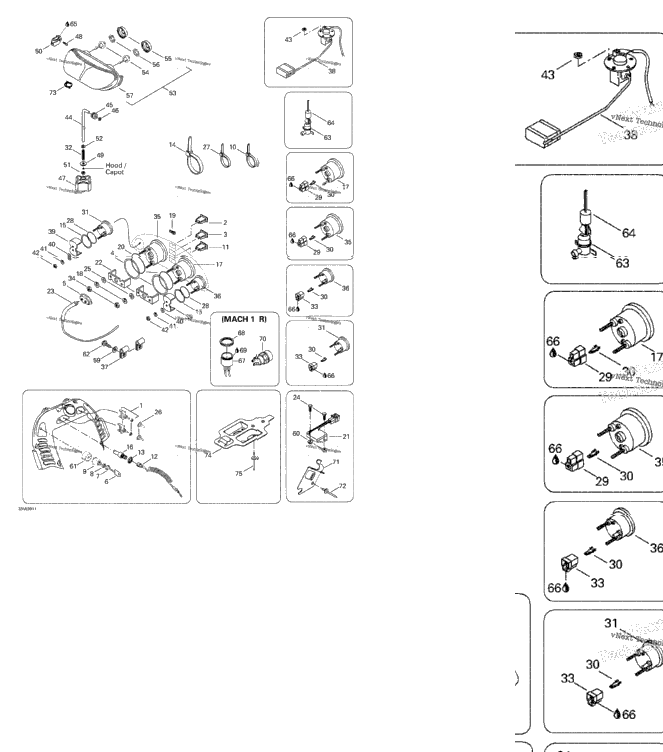

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 410107300 | Switch (Heating Grip) | 2 |
| 410109500 | Pilot Lamp (Red) | ||
| 410109600 | Pilot Lamp (Blue) | ||
| 517258500 | Washer | ||
| 572022300 | Drive Angle | ||
| 414991700 | BLANK KEY | ||
| 1 | 570013700 | Switch Boot | 1 |
| 1 | 410112100 | FACE NUT | 1 |
| 410111300 | IGNITION SWITCH | ||
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 410113300 | Pilot Lamp, Dess Mach 1. | ||
| 515175137 | Pilot Lamp (Reverse/DESS) Mach 1-R. | ||
| 1 | 515166900 | Dess Cap | 1 |
| 1 | 278000508 | Safety Switch Nut | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 2 | 517258600 | WASHER | 2 |
| 515166800 | TERMINAL ASSY | ||
| 415096300 | Speedometer (KMH) | ||
| 415096400 | Speedometer (MH) | ||
| 414806700 | Lock Washer | ||
| 410504200 | INSTRUMENTATION BULB | ||
| 414807100 | O-Ring | ||
| 515175216 | Voltage Regulator | ||
| 414806500 | Case Holder | ||
| 515175218 | Speedometer Cable | ||
| 2 | 222062065 | Hex. Screw M6 x 20 | 2 |
| 4 | 414806800 | Flat Washer | 4 |
| 2 | 515175281 | Switch Cover | 2 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 2 | 414807200 | O-RING | 2 |
| 409204500 | MALE HOUSING | ||
| 409210000 | MALE TERMINAL | ||
| 415097300 | Fuel Gauge | ||
| 1 | 415100600 | SPRING | 1 |
| 1 | 409204200 | FEMALE HOUSING | 1 |
| 414806900 | Nut | ||
| 415096500 | Tachometer | ||
| 415097200 | Temperature Gauge | ||
| 2 | 414176000 | Open Clamp | 2 |
| 415080800 | Fuel Sensor Ass'y | ||
| 415099800 | Case Holder | ||
| 4 | 391301700 | Washer | 4 |
| 414833700 | Lock Washer | ||
| 414833600 | NUT | ||
| 5 | 228551045 | Elastic Stop Nut M5 | 5 |
| 1 | 517295800 | ADJUSTER ROD | 1 |
| 1 | 415100800 | Grommet | 1 |
| 1 | 732610072 | Push Nut | 1 |
| 1 | 572100800 | Handle | 1 |
| 732601315 | Headlamp Screw | ||
| XXXX | Not Available As Spare Part - Flat Washer | ||
| 517289300 | RH Support | ||
| 517289400 | LH Support | ||
| 1 | 228561045 | Elastic Stop Nut M6 | 1 |
| 1 | 224061151 | Washer 6 mm | 1 |
| 1 | 515175158 | Halogen Headlamp Includes 53 - 57. | 1 |
| 2 | 410504401 | Halogen Bulb | 2 |
| 410607100 | PROTECTOR CAP | ||
| 2 | 410608300 | BULB HOLDER | 2 |
| 410609402 | Double Headlamp | ||
| 409206100 | MALE TERMINAL | ||
| 2 | 391301600 | Washer | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 572150700 | FEMALE TERMINAL HOUSING, 9 CIRCUITS | 1 |
| 2 | 365901100 | HEX. SCREW 12 X 3/4 | 2 |
| 414681800 | LEVEL SWITCH | ||
| 414681900 | Float | ||
| 413707500 | Grease Tube Lmz, 400 G | ||
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 414792102 | Back-Up Alarm Mach 1-R. | 1 |
| 1 | 414805101 | PLASTIC NUT Mach 1-R. | 1 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml Mach 1-R. | 1 |
| 1 | 415101200 | Push Button Mach 1-R. | 1 |
| 515175173 | Housing Support | ||
| 390904900 | Pop Rivet | ||
| 1 | 515175324 | SPRING | 1 |
| 518317554 | Electrical Box Support | ||
| 1 | 390402200 | Pop Rivet 3/16" | 1 |
