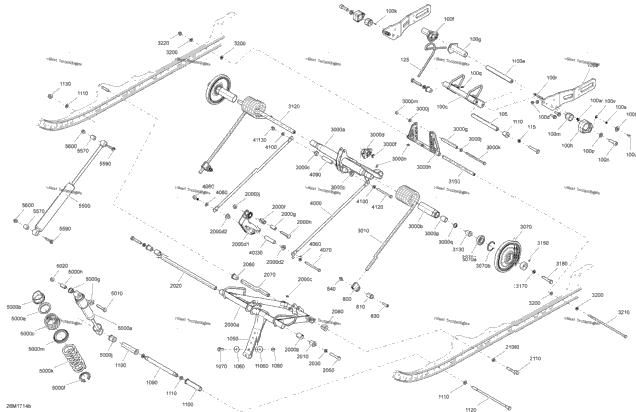

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 503193970 | RH Rail Pivot | 1 |
| 1 | 503193969 | LH Rail Pivot | 1 |
| 1 | 503192647 | Runner Pivot | 1 |
| 4 | 232581414 | Hex. Elastic Stop Nut M8 | 4 |
| 1 | 503191608 | Cam Axle | 1 |
| 1 | 503191190 | RH Spring Cam | 1 |
| 1 | 503191668 | LH Spring Cam | 1 |
| 1 | 503192426 | LH Block | 1 |
| 1 | 503192427 | RH Block | 1 |
| 1 | 250400005 | Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership | 1 |
| 2 | 503189488 | Block Guide | 2 |
| 2 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip | 2 |
| 2 | 503189148 | Washer | 2 |
| 1 | 408200700 | Grease Fitting | 1 |
| 1 | 503192437 | Rode | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 1 | 503192438 | Handle | 1 |
| 1 | 250000742 | Torx Screw M5 X 14 | 1 |
| 1 | 293370068 | Circlip | 1 |
| 1 | 503192436 | Compression Spring | 1 |
| 1 | 503191279 | Lower Shaft | 1 |
| 2 | 503189324 | Bushing | 2 |
| 2 | 503192496 | Washer | 2 |
| 2 | 250000605 | Hex. Screw S.Grip M10 X 55 | 2 |
| 1 | 503192282 | Pivot Spring | 1 |
| 2 | 503191183 | Spring Support | 2 |
| 2 | 503190754 | Retainer Cushion | 2 |
| 2 | 205082554 | Socket Screw M8 X 25 | 2 |
| 2 | 233281466 | Elastic Flange Nut M8 | 2 |
| 1 | 503192360 | Stopper Strap | 1 |
| 2 | 250200128 | Flat Washer 8 mm | 2 |
| 1 | 207683044 | Hex. Flange Screw M8 X 30 | 1 |
| 1 | 233281466 | Elastic Flange Nut M8 | 1 |
| 1 | 503193435 | Pivot Axle | 1 |
| 2 | 503191259 | Center Bushing | 2 |
| 4 | 250200143 | Flat Washer | 4 |
| 1 | 503193227 | Bolt M10 X 251MM | 1 |
| 1 | 233201466 | Flange Elastic Nut M10 | 1 |
| 1 | 503191752 | Front Arm | 1 |
| 2 | 503191556 | Extended Bushing | 2 |
| 1 | 503192211 | Rocker | 1 |
| 2 | 503191555 | Swivel Bushing | 2 |
| 1 | 503193037 | Bushing | 1 |
| 1 | 503189282 | Bushing | 1 |
| 1 | 207005044 | Hex. Screw M10 X 1.5 X 50 | 1 |
| 1 | 233601416 | Elastic Locking Nut M10 X 1.5 | 1 |
| 2 | 503191262 | Bushing | 2 |
| 1 | 503191215 | Upper Shaft | 1 |
| 2 | 250200143 | Flat Washer | 2 |
| 1 | 503191762 | Rear Arm | 1 |
| 2 | 572080700 | Bushing | 2 |
| 1 | 503191565 | LH Cam Adjuster | 1 |
| 1 | 503191566 | RH Cam Adjuster | 1 |
| 2 | 293370013 | E-Circlip | 2 |
| 1 | 503144300 | Upper Axle, Pivot Arm | 1 |
| 1 | 503191209 | Pivot Arm | 1 |
| 2 | 503189157 | Washer | 2 |
| 1 | 732601197 | Bolt M8, Short | 1 |
| 1 | 232581414 | Hex. Elastic Stop Nut M8 | 1 |
| 2 | 408200700 | Grease Fitting | 2 |
| 2 | 503191651 | Washer | 2 |
| 1 | 503192136 | Black, LH Spring Square | 1 |
| 1 | 503192137 | Black, RH Spring Square | 1 |
| 2 | 503191738 | Black, Wheel Ass'y 155 mm Includes 3070 to 3070b | 2 |
| 1 | 503193548 | Ball Bearing | 1 |
| 1 | 415129780 | Retaining Ring | 1 |
| 2 | 503168800 | Retaining Ring | 2 |
| 2 | 206260844 | Socket Set Screw M6 X 8 | 2 |
| 1 | 503189156 | Pivot Arm Axle | 1 |
| 4 | 503192494 | Washer | 4 |
| 1 | 503192440 | Bolt M8 X 248mm | 1 |
| 2 | 503191765 | Link Rod | 2 |
| 1 | 503190643 | Axle Bar (Long) | 1 |
| 2 | 503192494 | Washer | 2 |
| 1 | 503193372 | Screw M8 X 90 | 1 |
| 1 | 503192991 | Center Shock | 1 |
| 1 | 505073625 | Adjustment Cam | 1 |
| 1 | 503191343 | Black, Spring | 1 |
| 1 | 503192279 | Black, Spring | 1 |
| 1 | 503191872 | Spring Guide | 1 |
| 1 | 503194270 | Spring Stopper | 1 |
| 2 | 503189117 | Urethane Bushing | 2 |
| 1 | 503189271 | Bushing | 1 |
| 1 | 503191281 | Spring Spacer | 1 |
| 1 | 233601466 | Elastic Locking Nut M10 | 1 |
| 1 | 503193192 | Rear Shock HPG SEAL | 1 |
| 2 | 414936000 | Bushing | 2 |
| 2 | 207684044 | Hex. Flange Screw M8 X 40 | 2 |
