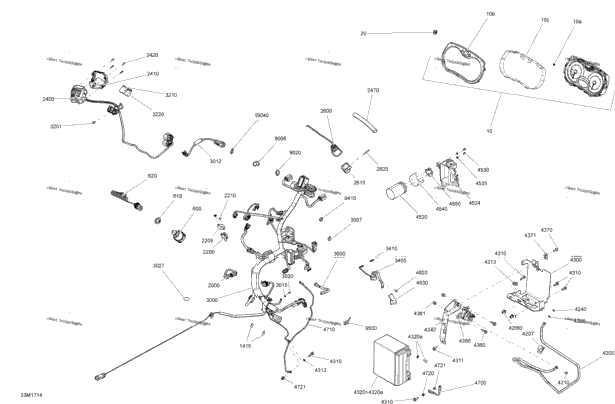

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 515177914 | Speedometer Includes 10 to 10c | 1 |
| 1 | 415129355 | Speedometer Button | 1 |
| 1 | 415129370 | Gauge Ring | 1 |
| 1 | 415129349 | Lens | 1 |
| 1 | 516006224 | BRP Logo 20MM x 2MM | 1 |
| 1 | 515178049 | DESS Switch | 1 |
| 1 | 278002963 | Safety Nut (DESS Switch) | 1 |
| 1 | 515178038 | Key | 1 |
| 2 | 515176141 | Cap | 2 |
| 1 | 515177813 | Temperature Sensor | 1 |
| 1 | 515176366 | Air Temperature Sensor | 1 |
| 1 | 508000769 | Seal | 1 |
| 2 | 389804300 | Push Nut | 2 |
| 1 | 515178198 | LH Housing | 1 |
| 1 | 515177147 | Housing Plate | 1 |
| 4 | 250000671 | Torx Screw | 4 |
| 1 | 219704418 | PROTECTOR TUBE 1000MM LONG | 1 |
| 1 | 515177362 | Emergency Stop Switch | 1 |
| 1 | 515177310 | Emergency Stop Switch Support | 1 |
| 1 | 250000263 | Torx Screw #8-18 | 1 |
| 1 | 515177982 | Main Harness | 1 |
| 1 | 710001038 | Clip | 1 |
| 1 | 515177877 | Wiring Harness | 1 |
| 1 | 234141601 | Lock Washer 4 mm | 1 |
| 1 | 250000741 | Screw-Torx Button Head M4 X 8 | 1 |
| 1 | 518325560 | Adhesive Patch | 1 |
| 1 | 250000690 | Pan Screw Forming, 7500C | 1 |
| 1 | 515175662 | Male Terminal Housing, 6 Circuits | 1 |
| 1 | 515175846 | Male Terminal Housing, 4 Circuits | 1 |
| 1 | 515177576 | Fuse Battery Wire | 1 |
| 1 | 278001443 | Fuse, 25 Amperes | 1 |
| 1 | 515177289 | Ground Wire | 1 |
| 1 | 515177208 | Battery/Starter Wire | 1 |
| 1 | 515177066 | Clip | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 1 | 234061410 | Flat Washer 6 mm | 1 |
| 2 | 293450275 | Insert | 2 |
| 1 | 515177264 | Battery Support | 1 |
| 4 | 207662044 | Hex. Flange Screw M6 X 20 | 4 |
| 1 | 207661244 | Hex. Flange Screw M6 X 12 | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 250200082 | Flat Washer | 1 |
| 1 | 410301203 | Battery YUASA YTX20L Includes 4320 to 4320a | 1 |
| 1 | 250000282 | Battery Bolt Kit | 1 |
| 1 | 515177266 | Battery Strip | 1 |
| 1 | 278003012 | Starter Relay | 1 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 233261416 | Elastic Flange Nut M6 X 1.0 | 2 |
| 1 | 207661644 | Hex. Flange Screw M6 X 16 | 1 |
| 1 | 224061201 | Flat Washer | 1 |
| 1 | 515177272 | Capacitor | 1 |
| 1 | 515176607 | Capacitor Support | 1 |
| 2 | 250000462 | Socket Head Screw M10 X 32 | 2 |
| 2 | 250200026 | Lock washer | 2 |
| 1 | 516006206 | Capacitor Decal | 1 |
| 1 | 515177193 | Cap | 1 |
| 1 | 515176358 | Ground Wire | 1 |
| 1 | 515178052 | Ground Wire | 1 |
| 1 | 250200041 | Lock Washer Serrated M6 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 710000495 | Protector Cap | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
