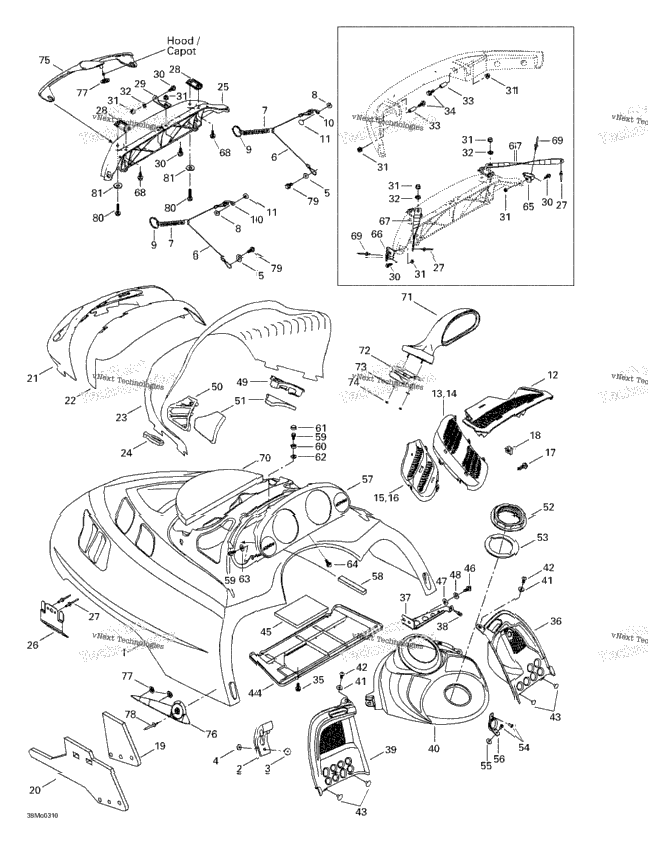

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 517302732 | Hood, Autumn Red M-549 | ||
| 517302740 | HOOD, BLACK, B-160 | ||
| 2 | 570027100 | Hood Latch | 2 |
| 2 | 293150108 | Pop Rivet 3/16” | 2 |
| 2 | 517124300 | Washer | 2 |
| 2 | 391301600 | Washer | 2 |
| 2 | 415093900 | RETAINER CABLE | 2 |
| 415043300 | Spring | ||
| 415058300 | RING | ||
| 517262800 | Bracket | ||
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 1 | 517302026 | CENTER GRILL, BLACK | 1 |
| 517302028 | RH Intermediate Grill, Black Grand Touring 500. | ||
| 517302671 | RH Intermediate Grill, Black Grand Touring 600. Grand Touring 700. | ||
| 517302031 | LH Intermediate Grill, Black Grand Touring 500. | ||
| 517302672 | LH Intermediate Grill, Black Grand Touring 600. Grand Touring 700. | ||
| 517302034 | RH Side Grille | ||
| 517302036 | LH Side Grille | ||
| 16 | 732601210 | HEX. FLANGED SCREW #8 X 3/8 | 16 |
| 5 | 517302785 | Edge Clip | 5 |
| 517302675 | RH Side Foam | ||
| 517302630 | LH Side Foam | ||
| 1 | 517302158 | HEADLAMP MOULDING, DEEP BLACK | 1 |
| 517302003 | WINDSHIELD SUPPORT | ||
| 1 | 517302560 | High Windshield | 1 |
| 8 | 570023800 | Windshield Latch | 8 |
| 1 | 517302631 | Hinge | 1 |
| 517302615 | Hood Guide | ||
| 4 | 390910000 | Pop Rivet 3/16” | 4 |
| 2 | 517302176 | HINGE SIDE PLATE | 2 |
| 517302045 | Hinge Center Plate | ||
| 4 | 207661684 | Hex. Flange Screw M6 X 16 | 4 |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 8 |
| 250200000 | Serrated Lock Washer M6 | ||
| 2 | 517302179 | BUSHING | 2 |
| 2 | 207663544 | Hex. Flange Screw M6 X 35 | 2 |
| 4 | 243141640 | Hex. Flange Plastite Screw M4.8 X 16 | 4 |
| 517302005 | RH CONSOLE | ||
| 517302621 | RH Console Support | ||
| 517302624 | Rubber Stopper | ||
| 517302006 | LH CONSOLE | ||
| 517302757 | Center Console | ||
| 517302758 | Center Console Grand Touring 600. Grand Touring 700. | ||
| 2 | 732600030 | Screw | 2 |
| 4 | 293150103 | Pop Rivet 3/16" | 4 |
| 1 | 517302836 | AIR INTAKE PLATE | 1 |
| 517302425 | Secondary Foam | ||
| 1 | 210261280 | Hex. Flange Screw M6 X 12 | 1 |
| 1 | 234061410 | Flat Washer 6 mm | 1 |
| 1 | 234161471 | Lock Washer M6, Black | 1 |
| 1 | 517302024 | RH AIR INTAKE GRILL | 1 |
| 1 | 517302025 | LH AIR INTAKE GRILL | 1 |
| 517302151 | Air Intake Foam | ||
| 1 | 517302043 | CONSOLE NUT | 1 |
| 1 | 293250029 | Gasket | 1 |
| 390409400 | RIVET_POP 5/32 X ,400 BLACK | ||
| 517302286 | Rubber Stopper | ||
| 517302129 | Rope Guide | ||
| 517302760 | Indicator Support | ||
| 517302761 | Indicator Support Grand Touring 600. Grand Touring 700. | ||
| 517302420 | Foam | ||
| 4 | 241140060 | Screw K40 X 10 | 4 |
| 2 | 414436800 | RETAINER CAP | 2 |
| 2 | 414436900 | BLACK SNAP CAP | 2 |
| 2 | 234042600 | Flat Washer 4 mm, Stainless | 2 |
| 1 | 732601210 | HEX. FLANGED SCREW #8 X 3/8 | 1 |
| 517302254 | RH Corner Support | ||
| 517302255 | LH Corner Support | ||
| 2 | 517302837 | HOOD CLAMP | 2 |
| 2 | 207662544 | Hex. Flange Screw M6 X 25 | 2 |
| 2 | 390406500 | Pop Rivet 3/16" | 2 |
| 517302317 | CENTER FOAM | ||
| 517302679 | RH Mirror | ||
| 517302681 | LH Mirror | ||
| 517302539 | Retainer Plate | ||
| 4 | 517124300 | Washer | 4 |
| 4 | 232541414 | Elastic Stop Nut M4 | 4 |
| 517302780 | Front Hood Moulding | ||
| 517302781 | RH Hood Moulding | ||
| 517302782 | LH Hood Moulding | ||
| 5 | 732610072 | Push Nut | 5 |
| 2 | 293150092 | Pop Rivet 3/16” | 2 |
| XXXX | Not Available As Spare Part - Tapping screw #12 x 1/2 | ||
| 2 | 207162060 | Hex. Forming Screw M6 X 20 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
