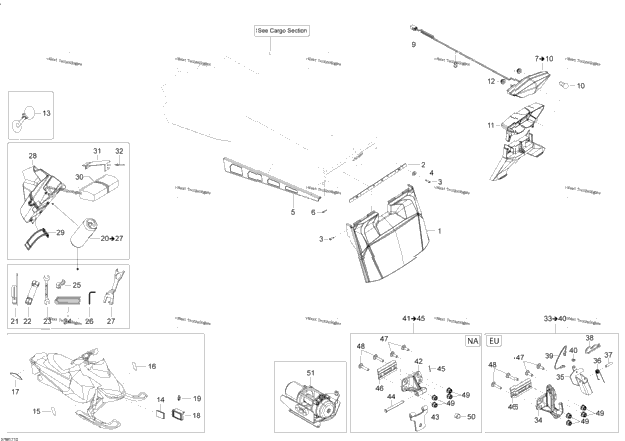

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 529000004 | SCREWDRIVER | ||
| 1 | 529000046 | Set Key, 16/21 mm | 1 |
| 529000002 | FORK WRENCH, 10/13 MM | ||
| 1 | 219704403 | Was 412500100 Rope-Starter | 1 |
| 1 | 529000060 | Starter Grip | 1 |
| 1 | 520001142 | Spacing Tool | 1 |
| 1 | 520001499 | Wrench | 1 |
| 1 | 520000894 | Tool Kit Rack Model LE, SE | 1 |
| 1 | 520000528 | Latch Model LE, SE | 1 |
| 708200043 | TOOLS BOX Model Extreme | ||
| 1 | 5346728 | TOOL KIT RACK Model Extreme | 1 |
| 1 | 36108 | Rivet Model Extreme | 1 |
| 1 | 520001475 | Hitch Ass'y Model Europe | 1 |
| XXXX | Not Available As Spare Part - Hook | ||
| XXXX | Not Available As Spare Part - Locking Plate | ||
| XXXX | Not Available As Spare Part - Spring | ||
| 1 | 41012 | Pin | 1 |
| 1 | 41029 | Hair pin | 1 |
| XXXX | Not Available As Spare Part - Retainer Cable | ||
| 1 | 390909100 | Avex Rivet | 1 |
| 1 | 520001398 | Hitch Ass'y Model North America | 1 |
| XXXX | Not Available As Spare Part - Tongue Body | ||
| XXXX | Not Available As Spare Part - Tongue | ||
| 1 | 560309200 | PIN-RETAINER | 1 |
| 1 | 41031 | Cotter Pin | 1 |
| 1 | 520000727 | Plate | 1 |
| 2 | 207782544 | Carriage Bolt, M8 X 25 | 2 |
| 2 | 207784044 | Bolt Carriage M8 X 40 | 2 |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 | 4 |
| 4 | 28056 | Cover Model North America | 4 |
| 619400069 | WINCH KIT Model SE | ||
| 2 | 705011222 | Amber Reflector Model SE | 2 |
| 520001744 | LH Reflector Mount Model SE | ||
| 520001746 | RH Reflector Mount Model SE | ||
| 2 | 205082044 | Socket Head Screw M8 X 20 Model SE | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 Model SE | 2 |
| 2 | 28056 | Cover Model SE | 2 |
| 2 | 233251494 | Elastic Flange Nut M5 Model SE | 2 |
| 1 | 520001410 | Black, Snow Guard Long Model Europe | 1 |
| 1 | 520001406 | Snow Guard Model North America | 1 |
| 1 | 520001021 | Plate | 1 |
| 10 | 250000676 | Forming Screw M5 x 16 | 10 |
| 6 | 250200025 | Washer M5 | 6 |
| 1 | 520000693 | RH Protector | 1 |
| 1 | 520000694 | LH Protector | 1 |
| 2 | 293150163 | Rivet Hucklok | 2 |
| 1 | 520000848 | Rear Light Includes 7 To 10 | 1 |
| 1 | 520000849 | Rear Wiring Harness | 1 |
| 1 | 515175494 | Male Housing, 3 Circuits | 1 |
| 1 | 520000758 | Bulb | 1 |
| 1 | 511000764 | Rear Light Cover | 1 |
| 2 | 705003666 | Rubber Grommet | 2 |
| 1 | 549011291 | Horn Model Europe | 1 |
| 1 | 21118 | Reflector (Bright) Model Europe | 1 |
| 1 | 520001600 | Yellow, RH Reflector Model LE, Extreme | 1 |
| 1 | 520001601 | Yellow, LH Reflector Model LE, Extreme | 1 |
| 2 | 705002423 | Amber, Lateral Reflector Model Europe | 2 |
| 2 | 705003412 | Red, Lateral Reflector Model North America | 2 |
| 1 | 520000871 | Deep Black, Reflector Support Model Europe | 1 |
| 27120 | TIE RAP Model Europe | ||
| 1 | 520001593 | Tools Kit Includes 20 To 27 | 1 |
