Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

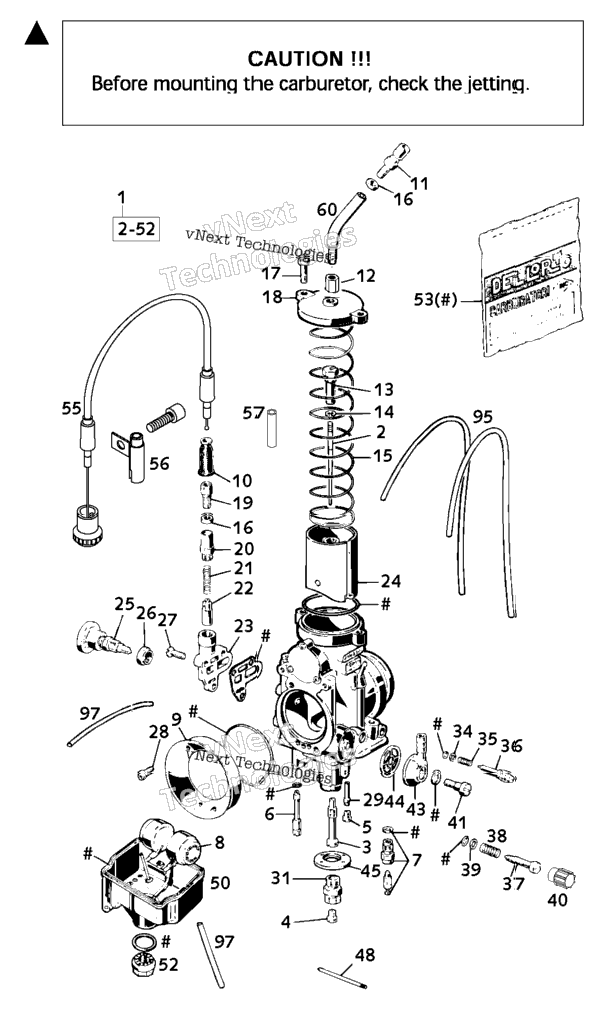

| 58031901044 | CARBURETOR PHM 40 SD (4934) | ||
| 1 | 49031134051 | JET NEEDLE K51 | 1 |
| 58031121272 | NEEDLE JET DR 272 | ||
| 58031121270 | NEEDLE JET DR 270 | ||
| 58031121266 | NEEDLE JET DR 266 | ||
| 58031121264 | NEEDLE JET DR 264 | ||
| 1 | 57031523200 | MAIN JET 200 | 1 |
| 57031523195 | MAIN JET 195 | ||
| 57031523192 | MAIN JET 192 | ||
| 57031523190 | MAIN JET 190 | ||
| 57031523188 | MAIN JET 188 | ||
| 57031523185 | MAIN JET 185 | ||
| 57031523182 | MAIN JET 182 | ||
| 57031523180 | MAIN JET 180 | ||
| 57031523178 | MAIN JET 178 | ||
| 57031523175 | MAIN JET 175 | ||
| 57031523170 | MAIN JET 170 | ||
| 57031523168 | MAIN JET 168 | ||
| 57031523165 | MAIN JET 165 | ||
| 57031523162 | MAIN JET 162 | ||
| 57031523160 | MAIN JET 160 | ||
| 57031523155 | MAIN JET 155 | ||
| 57031523148 | MAIN JET 148 | ||
| 1 | 57031523145 | MAIN JET 145 | 1 |
| 57031523142 | MAIN JET 142 | ||
| 57031523140 | MAIN JET 140 | ||
| 57031523135 | MAIN JET 135 | ||
| 57031523132 | MAIN JET 132 | ||
| 57031523130 | MAIN JET 130 | ||
| 15131123038 | JET 38 | ||
| 15131123040 | JET 40 | ||
| 15131123043 | JET 43 | ||
| 15131123045 | JET 45 | ||
| 15131123048 | JET 48 | ||
| 15131123050 | JET 50 | ||
| 15131123052 | JET 52 | ||
| 1 | 57031551045 | STARTING JET 45 | 1 |
| 1 | 57231120300 | NEEDLE VALVE 300 | 1 |
| 57031509000 | FLOAT 8,5 GRAMME | ||
| 1 | 58331509000 | FLOAT | 1 |
| 58031140040 | INTAKE TRUMPET 40 620LC4/DUKE | ||
| 52031138000 | RUBBER SLEEVE | ||
| 57031525100 | ADJUSTMENT SCREW M6X0,75 | ||
| 58031528000 | SUPPORT BUSHING M6X0,75 WS=10 | ||
| 49031131000 | NIPPLE FOR THROTTLE VALVE | ||
| 1 | 0799025055 | TAB WASHER DIN6799-RS 2,5 | 1 |
| 54431530000 | SLIDING SPRING 1,25X190 | ||
| 2 | 52031126000 | HEXAGON NUT M 6X0,75 DIN0439 | 2 |
| 57031524000 | HEXAGON NUT M 5X16 | ||
| 58031127000 | CARBURETOR COVER PLATE | ||
| 1 | 57031525000 | ADJUSTMENT SCREW M6X0,75 | 1 |
| 57231155000 | PLUG | ||
| 58031153000 | SPRING | ||
| 57031549000 | STARTING DEVICE | ||
| 57231150100 | START.DEVICE BODY 4S | ||
| 58031135040 | THROTTLE VALVE N0.40 | ||
| 58031180000 | WARM START BUTTON | ||
| 58031181000 | HEXAGON NUT M 9X0,75 | ||
| 0964040143 | OVAL HEAD SCREW DIN0964-M 4x14 | ||
| 0912040123 | AH SCREW DIN0912-M 4X12 | ||
| 49031122000 | IDLE MIXING TUBE NR.1 CD | ||
| 57031522000 | MAIN JET HOLDER | ||
| 1 | 57031572000 | WASHER 3,3 X 5,8 X 0,5 | 1 |
| 57031515000 | SPRING AIR ADJUST.SCREW | ||
| 57031517000 | MIXTURE REGULAT.SCREW M7X0,75 | ||
| 1 | 57031519000 | ADJUSTMENT SCREW M5 | 1 |
| 1 | 52031116000 | SPRING | 1 |
| 1 | 57031573000 | WASHER 5,1 X 8 X 0,8 | 1 |
| 57031519100 | KNURLED CAP PLASTIC | ||
| 0933060163 | HH SCREW DIN0933-M 6X16 | ||
| 57031513000 | HOSE CONNECTOR | ||
| 1 | 15131112000 | FUEL FILTER | 1 |
| 50131174000 | COVER | ||
| 57031508000 | STUD 2 X 47 | ||
| 57031511100 | FLOAT CHAMBER WITH RUN OVER T. | ||
| 57031514000 | PLUG M12X1 | ||
| 1 | 58031199000 | GASKET SET PHM38SD/PHM40SD | 1 |
| 58302095200 | CHOKE CABLE CPL. SX,SXC,SC'97 | ||
| 58302095251 | SLEEVE FOR CHOKE CABLE FOR CHOKE CABLE | ||
| 58331029024 | SLIDE STOP L=24MM | ||
| 58031160100 | TUBE FOR CARBURETOR CPL. '99 FOR CARBURETOR CPL. '99 | ||
| 1 | 31007007001 | PVC-HOSE 5 X 8 MM | 1 |
| 1 | 52031137001 | PVC-HOSE 3X5MM | 1 |
