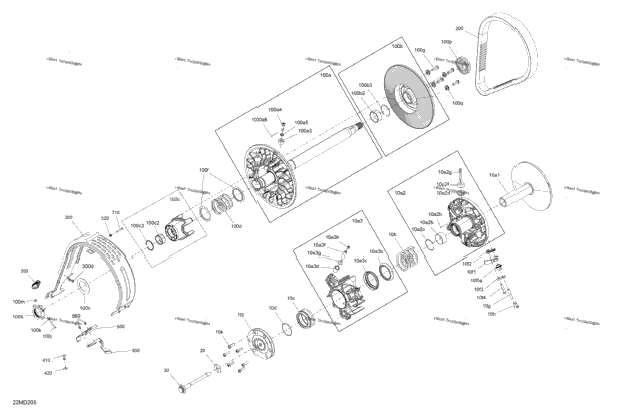

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 417224332 | Fixed Flange Ass'y | 1 |
| 1 | 417224915 | Sheave Drive Pulley Sliding Ass'y Includes 10a2 to 10a2h | 1 |
| 2 | 293250389 | Bushing | 2 |
| 2 | 293370137 | Circlip | 2 |
| 3 | 417224153 | Back Torque Roller | 3 |
| 3 | 417224916 | Pulley Roller Ext | 3 |
| 3 | 417224510 | Pin | 3 |
| 6 | 250400101 | Spring Pin 2.6MM X 20.5MM | 6 |
| 1 | 417225067 | Spider Drive Pulley Includes 10a3 to 10a3h | 1 |
| 1 | 417224910 | Stopper Spring | 1 |
| 1 | 417224614 | Spring Guide | 1 |
| 3 | 417224947 | Roller Pulley Ass'y | 3 |
| 3 | 417224204 | Axle - 10mm | 3 |
| 6 | 417224868 | Thrust Washer | 6 |
| 3 | 250000763 | Torx-Truss M/S M5 X 14 S.Grip | 3 |
| 1 | 417224168 | Clutch Spring | 1 |
| 1 | 417224003 | Seat Spring | 1 |
| 1 | 293370116 | Circlip | 1 |
| 1 | 417224141 | Ramp 965 | 1 |
| 1 | 417224086 | RH Lever | 1 |
| 1 | 417224114 | LH Lever | 1 |
| 1 | 417224221 | Pivot 33mm | 1 |
| 1 | 417224113 | Molded Cam | 1 |
| 3 | 417224694 | Pin Ramp | 3 |
| 1 | 417224682 | VIbration Damper | 1 |
| 6 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr | 6 |
| 1 | 250200144 | Conical Spring Washer M14 | 1 |
| 1 | 417300522 | Pulley Drive Bolt M14 X 144 | 1 |
| 1 | 417127595 | Fixed Flange Ass'y Includes 100a to 100a6 | 1 |
| 2 | 417127016 | Pulley Roller | 2 |
| 2 | 417127294 | Pivot Stud | 2 |
| 2 | 250200009 | Lock Washer 8 mm | 2 |
| 2 | 250400070 | Spring Pin | 2 |
| 1 | 417127659 | Sheave Driven Pulley Sliding Ass'y Includes 100b to 100b3 | 1 |
| 1 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L | 1 |
| 1 | 293370049 | Circlip | 1 |
| 1 | 417127672 | Cam Ass'y Includes 100c to 100c3 | 1 |
| 1 | 417127118 | Blue Spring | 1 |
| 2 | 417127116 | Swivel Abutment | 2 |
| 4 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr | 4 |
| 1 | 415129604 | Calibration Ass'y | 1 |
| 1 | 250000981 | Socket Screw M5 X 25 | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 1 | 232551414 | Elastic Stop Nut M5 | 1 |
| 1 | 417127155 | Washer | 1 |
| 1 | 504152574 | Ball Bearing | 1 |
| 4 | 250200199 | Serrated Lock Washer INT.EXT.M8 | 4 |
| 1 | 417300571 | Drive Belt | 1 |
| 1 | 417300621 | Belt Guard Ass'y Includes 300 to 300d | 1 |
| 8 | 390909200 | Avex Rivet | 8 |
| 1 | 250000541 | Torx Screw M6 X 35 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 417300622 | Guide | 1 |
| 1 | 293150292 | Black, Pop Rivet 3/16 X ,550 | 1 |
| 1 | 250200140 | Washer | 1 |
| 1 | 417300615 | Rear Guard Support | 1 |
| 1 | 417300632 | Stopper | 1 |
| 2 | 390909200 | Avex Rivet | 2 |
