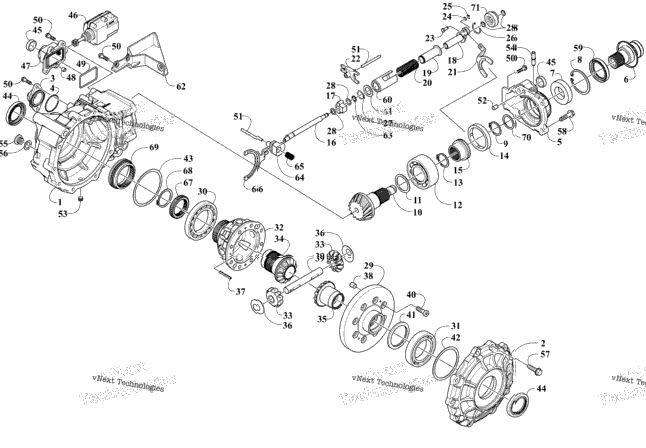

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 2502-850 | Complete Front Drive Gearcase Assembly | 1 |
| 0817-358 | Gearcase | ||
| 0817-359 | Cover, Case | ||
| 1 | 0817-292 | Cover, Gearcase - Side | 1 |
| 1 | 0817-293 | O-Ring | 1 |
| 0817-360 | Cover, Drive - Side | ||
| 1 | 0817-361 | Shaft, Input | 1 |
| 0817-362 | Bearing | ||
| 0817-363 | Ring, Retaining | ||
| 1 | 0817-387 | Ring, Retaining | 1 |
| 0817-364 | Gear, Pinion | ||
| 0817-366 | Shim, 36 X 44 | ||
| 0817-367 | Bearing | ||
| 0817-368 | Ring, Retaining | ||
| 0817-305 | Nut - Threaded | ||
| 1 | 0817-306 | Ring, Drive Clutch | 1 |
| 1 | 0817-307 | Cam Shaft | 1 |
| 1 | 0817-308 | Block, Support | 1 |
| 1 | 0817-309 | Ring, Slide | 1 |
| 1 | 0817-310 | Ring, Support - Spring | 1 |
| 1 | 0817-311 | Spring | 1 |
| 0817-371 | Fork, Shift | ||
| 1 | 0817-313 | Fork, Electric | 1 |
| 1 | 0817-314 | Pin | 1 |
| 1 | 0817-315 | Washer | 1 |
| 1 | 0817-321 | E-Clip | 1 |
| 1 | 0817-319 | Ring, Retaining | 1 |
| 1 | 0817-317 | C-Clip | 1 |
| 2 | 0817-316 | Washer | 2 |
| 0817-372 | Gear, Bevel | ||
| 1 | 0817-326 | Bearing, 55 x 90 x 11 | 1 |
| 1 | 0817-176 | Bearing | 1 |
| 1 | 0817-328 | Carrier, Differential | 1 |
| 2 | 0817-329 | Pinion, Differential - 10T | 2 |
| 1 | 0817-330 | Gear, Output - Differential - 14T A | 1 |
| 1 | 0817-331 | Gear, Output - Differential - 14T B | 1 |
| 2 | 0817-332 | Washer | 2 |
| 1 | 0817-236 | Pin, Spring | 1 |
| 2 | 0817-221 | Pin, Dowl | 2 |
| 1 | 0817-333 | Pin, Differential | 1 |
| 8 | 0817-334 | Bolt, M8 X P1.25 X 25L | 8 |
| 0817-374 | Spacer, 50.2OD X 64OD X 4.5 | ||
| 0817-375 | Shim, 70OD X 80OD | ||
| 1 | 0817-340 | Shim, 79OD X 89OD | 1 |
| 2 | 0817-341 | Oil Seal,38OD X 55OD X 7 | 2 |
| 2 | 0817-343 | Seal,End-Cover, VK25X7 | 2 |
| 1 | 0817-344 | Actuator, 3-Stage | 1 |
| 1 | 0817-345 | Adapter Seat, Actuator | 1 |
| 2 | 0817-346 | Bushing | 2 |
| 1 | 0817-347 | O-Ring | 1 |
| 7 | 0817-156 | Screw | 7 |
| 2 | 0817-337 | Pin, Dowel - 45D X 59L | 2 |
| 1 | 0817-351 | Pin, Dowel - 8OD X 12L | 1 |
| 1 | 0817-352 | Plug, Drain | 1 |
| 0817-353 | Tube, Vent | ||
| 1 | 0817-354 | Plug, Fil | 1 |
| 1 | 0817-355 | Washer | 1 |
| 10 | 0817-155 | Screw, Hex | 10 |
| 4 | 0817-357 | Screw, Hex Flange Head-M8 X P1.25 X 30L | 4 |
| 0817-378 | Oil Seal, 40OD X 55OD X 7/9.65 | ||
| 1 | 0817-390 | Ring, Spring - Support B | 1 |
| 1 | 0817-389 | Washer | 1 |
| 1 | 0817-391 | Guard Plate, Actuator | 1 |
| 1 | 0817-318 | Ring, Retaining | 1 |
| 1 | 0817-336 | Shift, Block | 1 |
| 1 | 0817-338 | Spring | 1 |
| 1 | 0817-335 | Shift, Fork | 1 |
| 1 | 0817-324 | Fixed Ring Gear | 1 |
| 1 | 0817-325 | C-Clip | 1 |
| 1 | 0817-323 | Clutch Ring | 1 |
| 1 | 0817-393 | Washer | 1 |
| 0817-297 | Screw, Adjustment |
