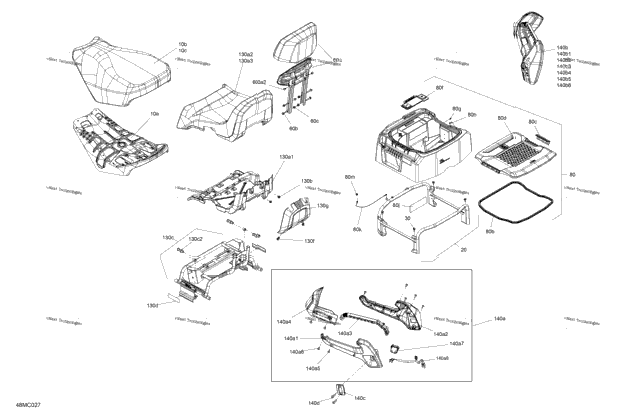

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 510007142 | Driver Seat Base | 1 |
| 1 | 510006413 | Driver Seat Foam | 1 |
| 1 | 510007578 | Seat Cover Model ORANGE CRUSH | 1 |
| 1 | 510007586 | Seat Cover Model DEEP BLACK | 1 |
| 1 | 510007010 | Seat Support Ass'y | 1 |
| 4 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 4 |
| 1 | 510007584 | Passenger Backrest Model ORANGE CRUSH | 1 |
| 1 | 510007591 | Passenger Backrest Model DEEP BLACK | 1 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 4 | 207663544 | Hex. Flange Screw M6 X 35 | 4 |
| 4 | 233261416 | Elastic Flange Nut M6 X 1.0 | 4 |
| 1 | 510007165 | Storage Box Ass'y Includes 80 to 80m | 1 |
| 1 | 293830188 | Seal, 1PC = 3M | 1 |
| 1 | 269502449 | Latch | 1 |
| 1 | 511001274 | Box Cover | 1 |
| 1 | 510006789 | Access Cover | 1 |
| 1 | 250001034 | Torx-Truss Screw K40 X 10 | 1 |
| 2 | 250000724 | Torx Screw M5 X 20 | 2 |
| 1 | 516009465 | Warning Label | 1 |
| 1 | 293750092 | Retaining Cable | 1 |
| 2 | 250000805 | Plastite Screw M4 X 10 | 2 |
| 1 | 510006410 | Passenger Seat Base | 1 |
| 1 | 510006411 | Passenger Seat Foam | 1 |
| 1 | 510007581 | Passenger Seat Cover Model ORANGE CRUSH | 1 |
| 1 | 510007589 | Passenger Seat Cover Model DEEP BLACK | 1 |
| 2 | 293150027 | Avdel Rivet | 2 |
| 1 | 510007155 | Passenger Chassis Module Ass'y Includes 130c to 130c2 | 1 |
| 12 | 506152520 | Cushion | 12 |
| 2 | 516009941 | Warning Label | 2 |
| 1 | 510006736 | Seat Trim | 1 |
| 2 | 293150230 | Tuflok Plastic Rivet | 2 |
| 1 | 510006526 | LH Passenger Heated Hand Hold Ass'y Includes 140a to 140a8 | 1 |
| 1 | 510006492 | LH Ext. Passenger Hand Hold | 1 |
| 1 | 510006527 | LH Int. Passenger Hand Hold | 1 |
| 1 | 510006488 | Passenger Heated Handhold | 1 |
| 1 | 510006495 | LH Passenger Handle Deflector | 1 |
| 6 | 250000889 | Screw M4 X 16 | 6 |
| 4 | 250000941 | Torx-Truss M/S M5 X 14 | 4 |
| 1 | 515178505 | Rocker Switch | 1 |
| 1 | 515178464 | Heated Grip Wiring Harness | 1 |
| 1 | 510006485 | RH Heated Passenger Hand Hold Ass'y Includes 140b to 140b6 | 1 |
| 1 | 510006486 | RH Ext. Passenger Hand Hold | 1 |
| 1 | 510006487 | RH Int. Passenger Hand Hold | 1 |
| 1 | 510006489 | RH Passenger Handle Deflector | 1 |
| 2 | 510006602 | Passenger Handle Trim | 2 |
| 4 | 250000753 | Torx Truss M/S M8 x 35 | 4 |
