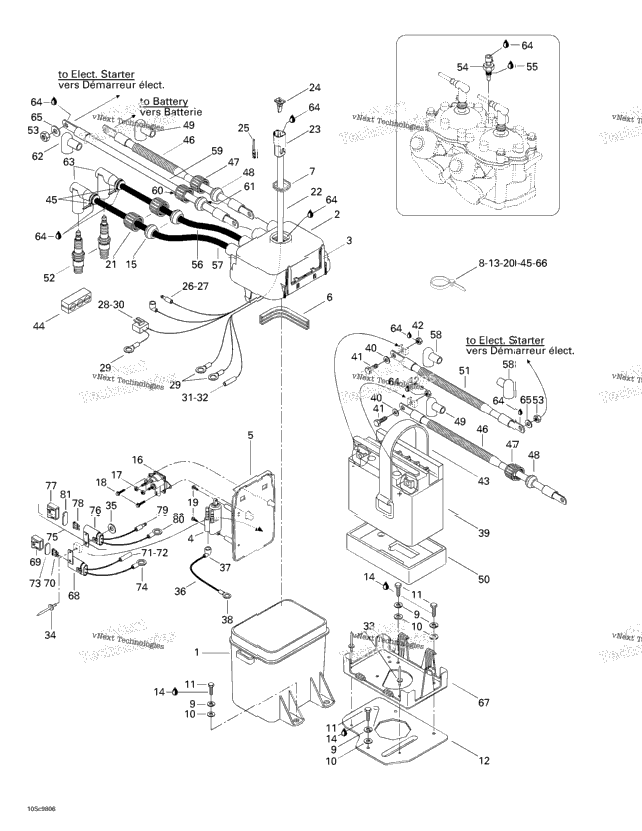

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278001089 | High Voltage Box Base | ||
| 278001265 | Cover | ||
| 278000732 | Ground Plate | ||
| 1 | 278001254 | IGNITION COIL | 1 |
| 278000826 | Mounting Plate | ||
| 278000440 | GASKET | ||
| 293200030 | Gasket | ||
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 6 | 217351500 | Lock Washer 5 mm | 6 |
| 4 | 213200015 | Washer 5 mm | 4 |
| 6 | 211000023 | Hex. Screw 10-14 X 7/8” | 6 |
| 292000503 | Plate Support | ||
| 1 | 294000606 | Tie Rap 180 mm | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 278000682 | Grommet | ||
| 1 | 278000513 | Starter Relay | 1 |
| 2 | 212000001 | Elastic Stop Nut M6 | 2 |
| 2 | 211000035 | Self Tapping Screw M6 x 10 | 2 |
| 215462550 | Self Tapping Screw M6.3 x 25 | ||
| 2 | 293750001 | Tie Wrap 94 mm | 2 |
| 278000100 | Electric Wire Cap | ||
| 278001303 | Electric Box Harness Includes 22 - 32. | ||
| 1 | 270000137 | Female Connector, 6 Circuits | 1 |
| 1 | 278000735 | Female Lock, 6 Circuits | 1 |
| 6 | 278000631 | Male Terminal | 6 |
| 1 | 278000230 | Male Terminal | 1 |
| 1 | 278000231 | Insulation Sheath | 1 |
| 2 | 278001114 | Female Terminal | 2 |
| 278000300 | Ring Terminal | ||
| 1 | 278001113 | Male Connector, 2 Circuits | 1 |
| 1 | 278001009 | Female Terminal | 1 |
| 1 | 278001007 | Insulated Sheath | 1 |
| 2 | 293150037 | Avdel Rivet 3/16" | 2 |
| 1 | 293150005 | Pop Rivet 3/16" | 1 |
| 1 | 213200016 | Flat Washer, Emhart | 1 |
| 278000664 | Ground Harness Includes 36 - 37. | ||
| 1 | 278000228 | FEMALE TERMINAL | 1 |
| 1 | 278000712 | Battery | 1 |
| 2 | 211200018 | FLAT WASHER 6 MM | 2 |
| 2 | 211000045 | Battery Screw | 2 |
| 2 | 211100022 | Battery Nut M6 | 2 |
| 2 | 293850021 | Rubber Strap | 2 |
| 1 | 278000245 | 3 WIRE SUPPORT | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 278001281 | Battery Positive Cable, Red Includes 46 - 49. | ||
| 278000098 | GROMMET | ||
| 1 | 278000020 | PROTECTION CAP | 1 |
| 278001234 | Battery Lower Pad | ||
| 278001282 | Battery Ground Cable | ||
| 2 | 278000609 | Spark Plug, NGK BR8-ES | 2 |
| 1 | 212000001 | Elastic Stop Nut M6 | 1 |
| 1 | 278001016 | Temperature Sensor | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 1 | 278001268 | Spark Plug Wire | 1 |
| 2 | 278000020 | PROTECTION CAP | 2 |
| 278001091 | Starter Positive Cable, Red Includes 59 - 61. | ||
| 2 | 278000237 | Spark Plug Cap | 2 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 213200001 | Flat Washer 6 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 278001233 | Battery Support | ||
| 278000665 | Fuse Harness 15 Amp Includes 68 - 74. | ||
| 1 | 278000345 | Fuse Cap | 1 |
| 1 | 278000343 | Fuse, 15 Amperes | 1 |
| 1 | 278000805 | Cushion | 1 |
| 278001304 | Fuse Harness 3 Amp Includes 75 - 81. | ||
| 1 | 278001325 | Fuse Holder | 1 |
| 1 | 278001326 | Fuse Holder Cap | 1 |
| 278119600 | 3 Amp. Fuse |
