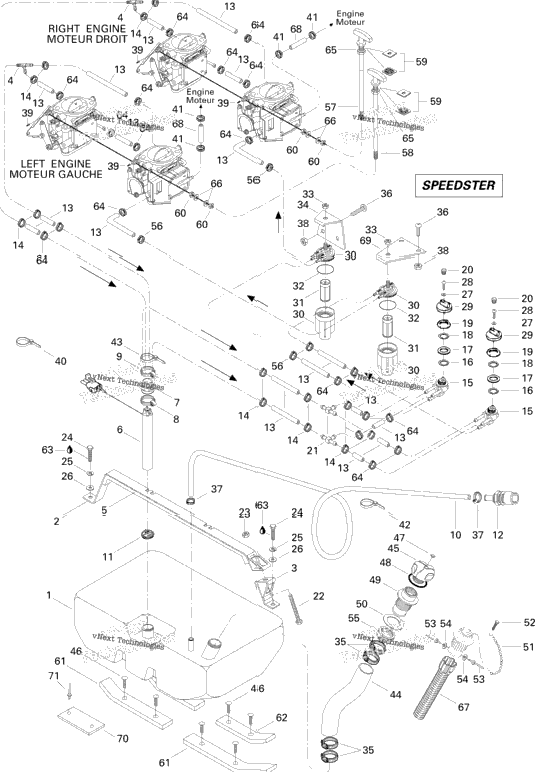

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 215085560 | Hexagonal Screw M8 x 55 | 1 |
| 275500275 | Aluminum Fuel Tank For Speedster 000 5897 00 | ||
| 275500199 | Tank Bracket | ||
| 275500202 | Strap Bracket | ||
| 2 | 293710059 | Y-Fitting | 2 |
| 275500200 | Rubber Pad | ||
| 275500237 | Baffle Pick-up Ass'y | ||
| 275500111 | Tube Adapter | ||
| 1 | 293650023 | Tridon Clamp | 1 |
| 1 | 293650035 | Tridon Clamp | 1 |
| 275500205 | HOSE 16 MM | ||
| 275500249 | Fuel Filter | ||
| 1 | 275500206 | VENT BOAT | 1 |
| 204000068 | Hose 6 mm | ||
| 293650059 | Clic Clamp | ||
| 2 | 275500098 | Fuel Valve | 2 |
| 2 | 293250004 | GASKET | 2 |
| 2 | 293050003 | WASHER | 2 |
| 293250005 | Gasket | ||
| 212100009 | HEX. PLASTIC NUT | ||
| 2 | 275500241 | Black, Cap | 2 |
| 293710040 | T Fitting | ||
| 1 | 212000002 | Elastic Stop Nut M8 | 1 |
| 2 | 210000002 | Hexagonal Screw M8 x 25 | 2 |
| 2 | 213000001 | Lock-Washer 8 mm | 2 |
| 2 | 213200011 | Flat Washer 8 mm | 2 |
| 2 | 213200010 | Washer 4 mm | 2 |
| 2 | 212200004 | Countersunk Phillips Screw M4 x 8 | 2 |
| 2 | 275500263 | FUEL VALVE KNOB, BLACK | 2 |
| 275500088 | Fuel Filter Ass'y Includes 30 to 32 | ||
| 275500089 | FUEL FILTER | ||
| 2 | 275500090 | O-Ring | 2 |
| 2 | 212000001 | Elastic Stop Nut M6 | 2 |
| 275500207 | Fixation Plate | ||
| 4 | 293650023 | Tridon Clamp | 4 |
| 211000003 | Screw M6 x 16 | ||
| 293650005 | TRIDON GEAR CLAMP | ||
| 4 | 212000001 | Elastic Stop Nut M6 | 4 |
| 210100014 | Allen Screw M4 x 6 | ||
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 4 | 293650063 | CAILLAU CLIC CLAMP | 4 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 294000606 | Tie Rap 180 mm | 1 |
| 275500259 | Filler Neck Hose | ||
| 1 | 275500153 | Fuel Cap Ass'y | 1 |
| 8 | 293730006 | Black, Dart | 8 |
| 1 | 293000034 | Black, Snap Cap | 1 |
| 293250017 | Gasket | ||
| 275500247 | Filler Neck | ||
| 1 | 293250029 | Gasket | 1 |
| 275500015 | Oil Cap Chain | ||
| 1 | 211000028 | Screw K40 x 10 | 1 |
| 2 | 293150032 | Pop Rivet 1/8" | 2 |
| 2 | 213200018 | Washer 3 mm | 2 |
| 1 | 211100012 | Filler Neck Nut, Fuel | 1 |
| 293650057 | Clic Clamp | ||
| 270000185 | Choke Cable - Right Includes 59,60,65,66 | ||
| 270000186 | Choke Cable Ass'y Includes 59,60,65,66 | ||
| 291000457 | Choke Plate | ||
| 4 | 212100003 | Lock Nut M6 | 4 |
| 293830020 | Rubber Pad 330 mm | ||
| 293830021 | Rubber Pad | ||
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 293650060 | Caillau Clic Clamp | ||
| 211100007 | Hex. Nut | ||
| 4 | 213200001 | Flat Washer 6 mm | 4 |
| 1 | 275500067 | Internal Filler Neck Hose | 1 |
| 275500282 | IMPULSE HOSE | ||
| 204560007 | Fuel Filter Support | ||
| 204600002 | Access Cover | ||
| 2 | 293150006 | Pop Rivet 1/8" | 2 |
