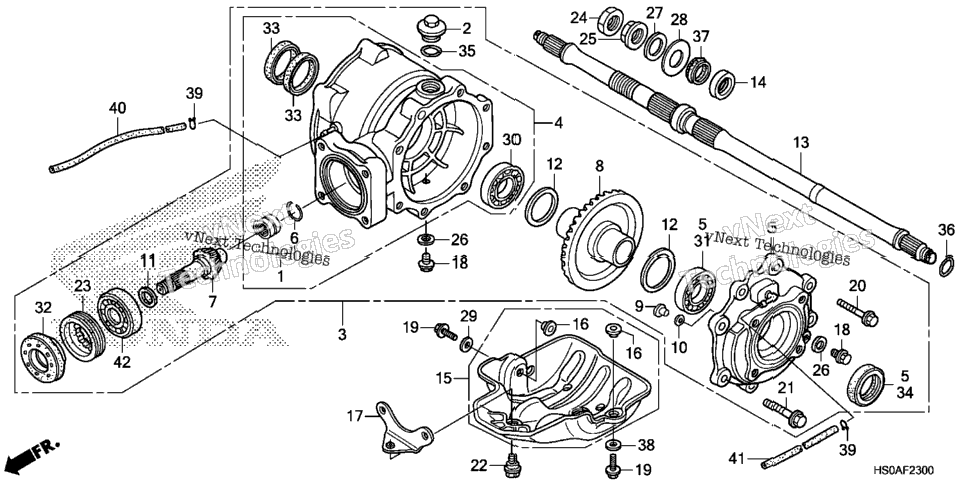

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 06910-HS0-AF0 | BEARING SET, NEEDLE | 1 |
| 1 | 12361-035-000 | CAP, TAPPET ADJUSTING HOLE | 1 |
| 1 | 12361-300-000 | CAP, VALVE ADJ. | 1 |
| 1 | 12361-371-980 | CAP, VALVE ADJ. | 1 |
| 1 | 41300-HS0-AF0 | GEAR ASSY., RR. FINAL | 1 |
| 1 | 41311-HS0-AF0 | CASE SET, FINAL | 1 |
| 1 | 41320-HM8-020 | COVER SET, GEAR CASE | 1 |
| 1 | 41405-HA7-670 | RING, STOPPER | 1 |
| 1 | 41421-HN5-670 | GEAR, PINION (13T) | 1 |
| 1 | 41431-HM8-000 | GEAR, RING (48T) | 1 |
| 1 | 41436-MB0-310 | PIN, RING GEAR STOPPER | 1 |
| 1 | 41438-MB0-310 | SHIM B, STOPPER PIN (0.15) | 1 |
| 1 | 41437-MB0-310 | SHIM A, STOPPER PIN (0.10) | 1 |
| 1 | 41447-HM8-000 | SHIM A, PINION GEAR (1.64) | 1 |
| 1 | 41448-HM8-000 | SHIM B, PINION GEAR (1.70) | 1 |
| 1 | 41449-HM8-000 | SHIM C, PINION GEAR (1.76) | 1 |
| 1 | 41451-HM8-000 | SHIM D, PINION GEAR (1.82) | 1 |
| 1 | 41452-HM8-000 | SHIM E, PINION GEAR (1.88) | 1 |
| 1 | 41453-HM8-000 | SHIM F, PINION GEAR (1.94) | 1 |
| 1 | 41454-HM8-000 | SHIM G, PINION GEAR (2.00) | 1 |
| 1 | 41455-HM8-000 | SHIM H, PINION GEAR (2.06) | 1 |
| 1 | 41456-HM8-000 | SHIM I, PINION GEAR (2.12) | 1 |
| 1 | 41457-HM8-000 | SHIM J, PINION GEAR (2.18) | 1 |
| 2 | 41540-HC4-000 | SPACER A, RING GEAR (1.26) | 2 |
| 2 | 41541-HC4-000 | SPACER B, RING GEAR (1.32) | 2 |
| 2 | 41542-HC4-000 | SPACER C, RING GEAR (1.38) | 2 |
| 2 | 41543-HC4-000 | SPACER D, RING GEAR (1.44) | 2 |
| 2 | 41544-HC4-000 | SPACER E, RING GEAR (1.50) | 2 |
| 2 | 41545-HC4-000 | SPACER F, RING GEAR (1.56) | 2 |
| 2 | 41546-HC4-000 | SPACER G, RING GEAR (1.62) | 2 |
| 2 | 41547-HC4-000 | SPACER H, RING GEAR (1.68) | 2 |
| 2 | 41548-HC4-000 | SPACER I, RING GEAR (1.74) | 2 |
| 2 | 41549-HC4-000 | SPACER J, RING GEAR (1.80) | 2 |
| 2 | 41550-HC4-000 | SPACER K, RING GEAR (1.86) | 2 |
| 1 | 42311-HM8-000 | SHAFT, RR. AXLE | 1 |
| 1 | 42625-HM8-000 | COLLAR, RR. AXLE | 1 |
| 1 | 50355-HM8-B40 | PLATE, SKID | 1 |
| 2 | 50358-HM8-B40 | COLLAR, SKID PLATE | 2 |
| 1 | 52190-HN6-000 | STAY, SKID PLATE | 1 |
| 2 | 90109-371-000 | BOLT, SEALING (8MM) | 2 |
| 2 | 90131-GW0-750 | BOLT, FLANGE (8X20) | 2 |
| 6 | 90133-HP5-600 | BOLT, FLANGE (8X27) | 6 |
| 2 | 90134-HP5-600 | BOLT, FLANGE (10X35) | 2 |
| 1 | 90186-HM8-B40 | BOLT, FLANGE (8X18) | 1 |
| 1 | 90242-MB0-000 | NUT, LOCK (64MM) | 1 |
| 1 | 90307-HM5-930 | NUT, RR. AXLE | 1 |
| 1 | 90308-HM5-930 | NUT A, RR. AXLE | 1 |
| 2 | 90471-580-000 | WASHER (8MM) | 2 |
| 1 | 90481-HC4-000 | WASHER, TAPER | 1 |
| 1 | 90501-HM8-000 | WASHER (32X60X1.5) | 1 |
| 1 | 90504-MA6-000 | WASHER (8.5X26) | 1 |
| 1 | 91051-HC4-003 | BEARING, RADIAL BALL (43X68X13) | 1 |
| 1 | 91251-HM8-003 | OIL SEAL (34X70X11) | 1 |
| 2 | 91271-HC4-004 | OIL SEAL (42X51X7) | 2 |
| 1 | 91271-HC4-004 | OIL SEAL (42X51X7) | 1 |
| 1 | 91302-001-020 | O-RING (30.8MM) (Honda Code 0001065) | 1 |
| 1 | 91301-401-000 | O-RING (29.5X3) | 1 |
| 1 | 91302-436-003 | O-RING (29.5X3) (ARAI) | 1 |
| 1 | 91302-436-004 | O-RING (29.5X3) (NOK) | 1 |
| 1 | 91351-HB3-004 | RING, SEAL | 1 |
| 1 | 94102-08800 | WASHER, PLAIN (8MM) | 1 |
| 2 | 95002-35000 | CLIP, TUBE (C6.5) | 2 |
| 1 | 95005-35001-30M | BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M) | 1 |
| 1 | 96100-62060-00 | BEARING, RADIAL BALL (6206) | 1 |
