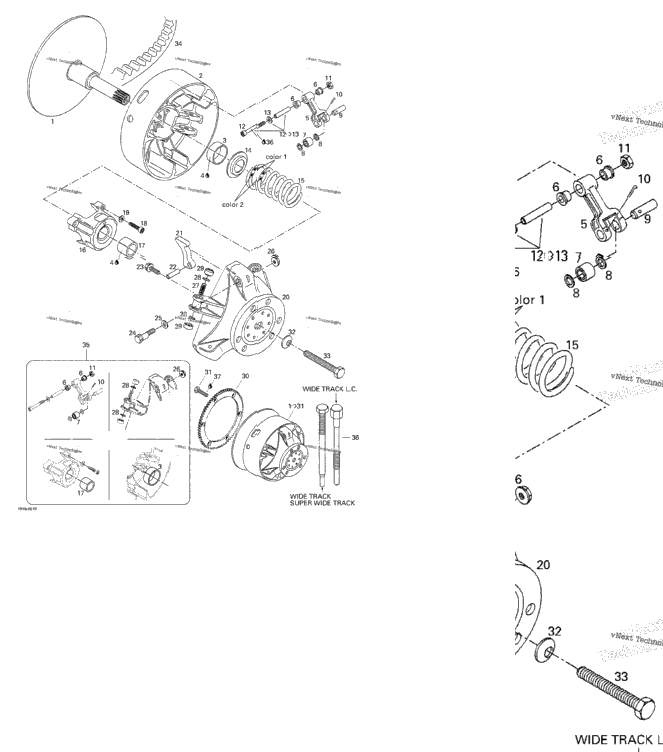

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 417011009 | Drive Pulley Ass'y Includes 1 - 31. Skandic Wide Track. | ||
| 417011010 | Drive Pulley Ass'y Skandic Super Wide Track. | ||
| 417011011 | Drive Pulley Ass'y Skandic Wide Track LC. | ||
| 417222071 | Fixe Flange Skandic Wide Track. Skandic Super Wide Track. | ||
| 1 | 417010900 | Fixe Flange Skandic Wide Track LC. | 1 |
| 417003703 | SLINDING FLANGE Includes 2 - 3. | ||
| 1 | 417004201 | Bushing | 1 |
| 1 | 413703100 | Loctite 609, 10 ml | 1 |
| 417003801 | LEVER ASS'Y Includes 5 - 6. | ||
| 6 | 417004305 | Bushing | 6 |
| 3 | 417003900 | Roller Ass'y | 3 |
| 6 | 417004302 | Stopper Washer | 6 |
| 3 | 417004309 | Pin Skandic Wide Track. Skandic Super Wide Track. | 3 |
| 3 | 417004308 | Pin Skandic Wide Track LC. | 3 |
| 3 | 732958001 | Cotter Pin | 3 |
| 3 | 228561045 | Elastic Stop Nut M6 | 3 |
| 3 | 417004800 | SCREW ASSY Includes 12 - 13. | 3 |
| 3 | 222965065 | Allen Screw M6 X 50 | 3 |
| 3 | 234061410 | Flat Washer 6 mm | 3 |
| 417222044 | Spring Seat | ||
| 414689700 | SPRING, YELLOW/ORANGE Skandic Wide Track. Skandic Super Wide Track. | ||
| 1 | 414818000 | SPRING (YELLOW/BLUE) Skandic Wide Track LC. | 1 |
| 417004000 | Spring Cover Ass'y Includes 16 - 17. | ||
| 1 | 417004501 | BUSHING | 1 |
| 222964066 | Allen Screw M6 x 40 | ||
| 420245370 | WASHER | ||
| 417004700 | Gouvernor Cup Ass'y | ||
| 417005290 | Ramp 290 | ||
| 732804009 | Pin M8 X 24 | ||
| 6 | 210361890 | HEX. FORMING SCREW M6 X 18 | 6 |
| 3 | 417005500 | Calibration Screw | 3 |
| 3 | 417005600 | Washer | 3 |
| 3 | 233061414 | Hex. Flange Nut M6 | 3 |
| 3 | 417005700 | Spring | 3 |
| 6 | 732401030 | O-Ring | 6 |
| 6 | 417005800 | Slider Shoe | 6 |
| 415043100 | Ring Gear (86 tooth) | ||
| 6 | 732601246 | Screw M8 x 16 | 6 |
| 1 | 234221414 | Conical Spring Washer Skandic Wide Track. Skandic Super Wide Track. | 1 |
| 232271414 | Conical Spring Washer Skandic Wide Track LC. | ||
| 1 | M40800 | Screw 1/2-20X6 1/2 Skandic Wide Track. Skandic Super Wide Track. | 1 |
| 1 | 417120000 | Drive Pulley Bolt Skandic Wide Track LC. | 1 |
| 1 | 414633800 | Drive Belt | 1 |
| 417008500 | Clutch Repair Kit | ||
| 1 | 529007900 | Puller Inner Half Skandic Wide Track. Skandic Super Wide Track. | 1 |
| 1 | 529022400 | Puller Inner Half Skandic Wide Track LC. | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 861769100 | High Altitude Kit (Not Shown) Skandic Wide Track. | ||
| 861769200 | High Altitude Kit (Not Shown) Skandic Super Wide Track. | ||
| 861769000 | High Altitude Kit (Not Shown) Skandic Wide Track LC. |
