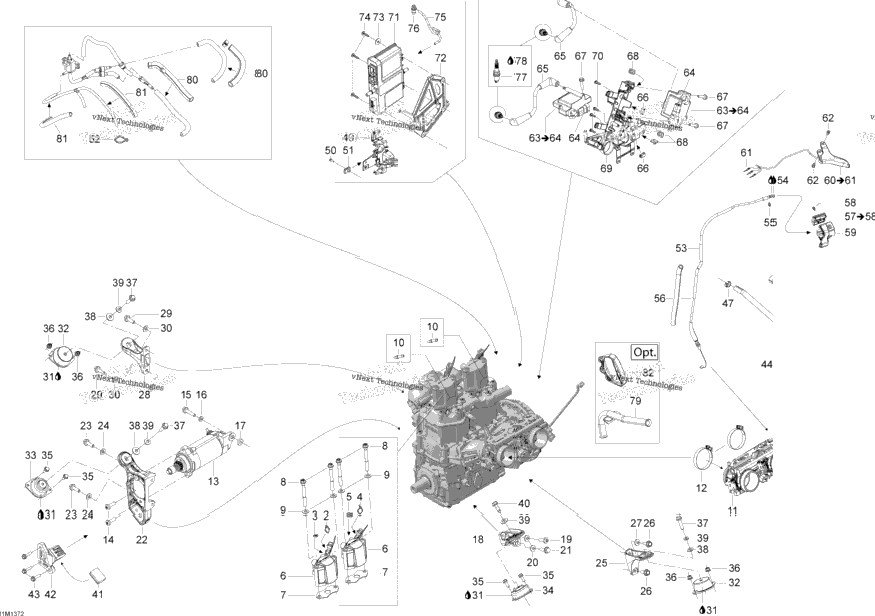

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Engine 600HO E-TEC With Rewind Starter | ||
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 2 | 512060727 | Fuel Injector Ass'y | 2 |
| 2 | 420430930 | Gasket | 2 |
| 4 | 420441187 | Torx Flange Screw M10 X 90 -SW 13/T50 | 4 |
| 4 | 234001410 | Flat Washer 10 mm | 4 |
| 2 | 420924724 | Hose Nipple | 2 |
| 1 | 420889197 | Throttle Body | 1 |
| 2 | 293650158 | Gemi Clamp | 2 |
| 1 | 515177389 | Starter | 1 |
| 2 | 250000248 | Torx Screw M8 X 25, Scotch Grip | 2 |
| 1 | 207583544 | Hex Flange Screw M8 X 35, Scotch Grip | 1 |
| 1 | 250200008 | Flat Washer With Teflon 8 mm | 1 |
| 1 | 515176500 | Washer | 1 |
| 1 | 512060478 | Rear Support, PTO | 1 |
| 1 | 250000248 | Torx Screw M8 X 25, Scotch Grip | 1 |
| 2 | 234281474 | Conical Spring Washer M8 | 2 |
| 1 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 1 |
| 1 | 512060712 | FRONT SUPPORT PTO | 1 |
| 2 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip | 2 |
| 1 | 512060559 | Rear Support, MAG | 1 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 1 | 234281474 | Conical Spring Washer M8 | 1 |
| 1 | 512060469 | Front Support, MAG | 1 |
| XXXX | Not Available As Spare Part - Synthetic Grease | ||
| 2 | 512060729 | Rubber Mount | 2 |
| 1 | 512060387 | Rubber Mount | 1 |
| 1 | 512060448 | Rubber Mount | 1 |
| 4 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 3 | 207683044 | Hex. Flange Screw M8 X 30 | 3 |
| 3 | 503183200 | Yellow, Washer | 3 |
| 4 | 234281474 | Conical Spring Washer M8 | 4 |
| 1 | 250000570 | Hex. Screw M8 | 1 |
| 1 | 512060627 | Stopper | 1 |
| 1 | 512060576 | Stopper Support | 1 |
| 3 | 207562544 | Hex. Flange Screw M6 X 25 | 3 |
| 1 | 509000793 | FORMED HOSE OUTPUT TB | 1 |
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
| 1 | 293650172 | Tridon Gear Clamp | 1 |
| 1 | 293650047 | Crimp Clamp, 15.3-706R | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 512060298 | Solenoid Support | 1 |
| 1 | 207652044 | Hex.Flange Screw M5 X 20 | 1 |
| 1 | 250000079 | Panel Nut M5 X 0.8 | 1 |
| 2 | 293750001 | Tie Wrap 94 mm | 2 |
| 1 | 512060633 | Throttle Cable | 1 |
| XXXX | Not Available As Spare Part - Loctite 8104 (Dielectric Grease), 75ml | ||
| 1 | 414274500 | Circlip | 1 |
| 1 | 219704399 | Was 409901700 Tubing (9 mm) | 1 |
| 1 | 512060859 | Upper Housing Includes 57 To 58 | 1 |
| 1 | 414440800 | Socket Set Screw M8 X 10 | 1 |
| 1 | 512060860 | Lower Housing | 1 |
| 1 | 512060616 | Throttle Handle Includes 60 to 62 | 1 |
| 3 | 515175232 | Male Terminal | 3 |
| 2 | 732601143 | Flange Screw | 2 |
| 2 | 512060810 | Ignition Coil Includes 63 to 64 | 2 |
| 2 | 710000568 | Housing | 2 |
| 2 | 512060094 | Ignition Cable, 177 mm | 2 |
| 2 | 710000992 | Clip | 2 |
| 3 | 250000253 | Hex. Flange Screw M6 X 1.0 X 30 | 3 |
| 3 | 293100003 | Nut Welded, M6 | 3 |
| 1 | 512060696 | Support Coils | 1 |
| 4 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 4 |
| 1 | 512060871 | Calibrated Module E-TEC | 1 |
| 1 | 512060297 | Calibrated Module Support | 1 |
| 1 | 250200040 | Flat Washer | 1 |
| 3 | 250000297 | Truss Head Torx Screw K50 X 20 | 3 |
| 1 | 219704409 | Was 415080100 Fuel Line Primer 3,2mm | 1 |
| 1 | 414814100 | Male Connector | 1 |
| 2 | 415129432 | Spark Plug NGK PZFR6F | 2 |
| 1 | 512060451 | Tubing | 1 |
| 1 | 219704400 | Was 409901800 Tubing (13 mm) | 1 |
| 1 | 219704407 | Tubing 10 MM 1000MM Long | 1 |
| 1 | 512060136 | Starter Grip | 1 |
