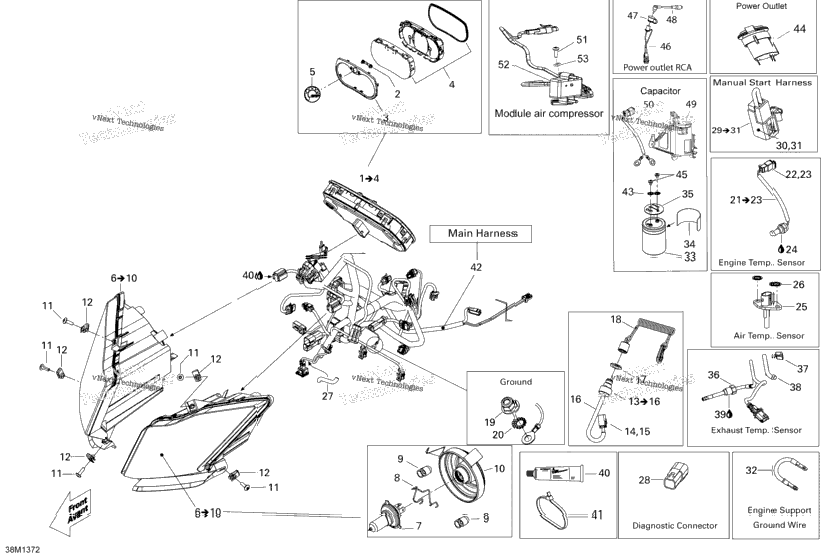

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 515177169 | Speedometer Ass'y Includes 1 to 4 | 1 |
| 1 | 415129355 | Speedometer Button | 1 |
| 1 | 415129370 | Gauge Ring | 1 |
| 1 | 415129349 | Lens | 1 |
| 1 | 219902677 | BRP Logo 20 mm | 1 |
| 1 | 517304194 | RH Headlamp Ass'y Includes 6 to 10 | 1 |
| 1 | 517304195 | LH Headlamp Ass'y Includes 6 to 10 | 1 |
| 1 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) | 1 |
| XXXX | Not Available As Spare Part - Bulb Holder | ||
| 2 | 515176498 | Cap | 2 |
| 1 | 515176499 | Cover | 1 |
| 5 | 250000128 | Torx Truss Screw M6 X 20 | 5 |
| 5 | 250100113 | Panel Nut, M6 X 1.0 | 5 |
| 1 | 515177249 | DESS Switch Includes 13 to 16 | 1 |
| 3 | 515175232 | Male Terminal | 3 |
| 1 | 515175494 | Male Housing, 3 Circuits | 1 |
| 409902000 | Tubing 12 mm | ||
| 1 | 278000508 | Safety Switch Nut | 1 |
| 1 | 515177057 | DESS Cap | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 1 | 515176398 | Temperature Sensor Includes 21 to 23 | 1 |
| 1 | 515175670 | Female Terminal Housing, 2 Circuits | 1 |
| 2 | 278000632 | Female Terminal | 2 |
| 1 | 219704455 | Was 293800018 Loctite 592, 50 ml | 1 |
| 1 | 515176366 | Air Temperature Sensor | 1 |
| 2 | 389804300 | Push Nut | 2 |
| 1 | 219704425 | Tubing 6 Mm 3000Mm Long | 1 |
| 1 | 278002148 | Diagnostic Connector Cap | 1 |
| 1 | 515176661 | MANUAL START HARNESS Includes 29 to 31 | 1 |
| 2 | 515175232 | Male Terminal | 2 |
| 1 | 710000667 | Male Housing, 2 Circuits | 1 |
| 1 | 515176861 | Ground Wire | 1 |
| 1 | 515176349 | Capacitor | 1 |
| 516004570 | Capacitor Decal | ||
| 1 | 515177193 | Cap | 1 |
| 1 | 514054641 | Temperature Sensor | 1 |
| 1 | 414227300 | Clip | 1 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 515177077 | WIRING HARNESS MAIN | ||
| 2 | 250200026 | Lock washer | 2 |
| 1 | 710001248 | DC Outlet | 1 |
| 2 | 250000462 | Socket Head Screw M10 X 32 | 2 |
| 1 | 515177187 | Visor Harness | 1 |
| 1 | 572103300 | Cap | 1 |
| 1 | 515175851 | Extension | 1 |
| 1 | 515176607 | Capacitor Support | 1 |
| 1 | 515176605 | Capacitor Harness | 1 |
| 1 | 207063544 | Hex. Flange Screw M6 X 35 | 1 |
| 1 | 515177125 | Compressor Module | 1 |
| 1 | 234061410 | Flat Washer 6 mm | 1 |
