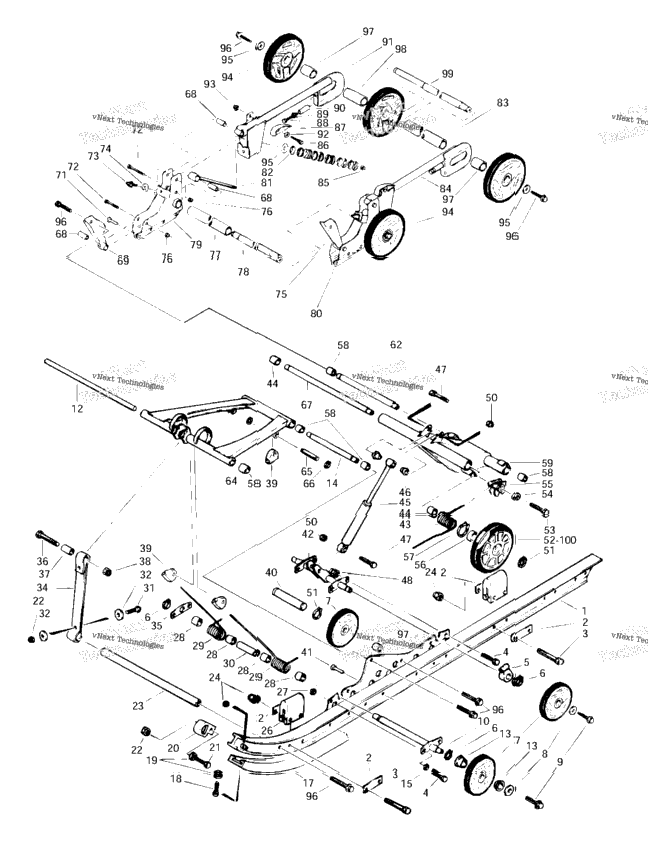

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| M519826 | RH Runner Ass'y | ||
| M519827 | LH Runner Ass'y | ||
| M5140395 | LH Runner | ||
| M548387 | Washer | ||
| 8 | M40002 | Vis *Screw | 8 |
| 8 | 222081665 | Hex. Screw M8 x 16 | 8 |
| M548804 | Spring Support | ||
| 4 | M31007 | Circlip | 4 |
| 6 | 570045222 | Wheel Bond 135 | 6 |
| 4 | M20010 | Washer | 4 |
| M40336 | SCREW M8 X 20 | ||
| M539653 | Axle | ||
| 1 | M542793 | Essieu *Axle | 1 |
| 8 | 414888400 | Cushion | 8 |
| 1 | M549695 | Axe *Axle | 1 |
| 2 | M549582 | Runner Shoe | 2 |
| 2 | 222062065 | Hex. Screw M6 x 20 | 2 |
| 4 | 224061151 | Washer 6 mm | 4 |
| 2 | M534578 | Runner Protector | 2 |
| 2 | 222062565 | Hex. Screw M6 x 25 | 2 |
| 2 | M33200 | Nut M6 | 2 |
| M549718 | Cross Shaft | ||
| 10 | M40002 | Vis *Screw | 10 |
| 4 | 570023100 | RUBBER STOPPER | 4 |
| 10 | 228501045 | Elastic Stop Nut M10 | 10 |
| M548841 | Sleeve | ||
| M529896 | RH Spring | ||
| M529895 | LH Spring | ||
| M5440313 | Sleeve | ||
| 4 | M20009 | Washer 6.4 Din 9021 | 4 |
| M536063 | Stopper Strap | ||
| M548469 | Plate Support | ||
| 1 | 222085065 | Hex. Screw M8 x 50 | 1 |
| M546065 | Sleeve | ||
| 1 | 228581045 | Elastic Stop Nut M8 | 1 |
| 4 | M548799 | Spring Support | 4 |
| M549680 | Support Shaft | ||
| M544212 | RIVET | ||
| M539655 | SHAFT | ||
| M538805 | Lh Spring | ||
| M538806 | Rh Spring | ||
| 8 | M31051 | Roulement Glis.*Slide Bearing | 8 |
| M23016 | SHOCK | ||
| M544417 | CUSHION | ||
| 2 | 222005065 | Hex. Screw M10 x 50 | 2 |
| 4 | 228581045 | Elastic Stop Nut M8 | 4 |
| 2 | 228501045 | Elastic Stop Nut M10 | 2 |
| 4 | M31001 | Circlip *Circlip | 4 |
| M46032 | Idler Wheel | ||
| 2 | 222061065 | Hex. Screw M6 x 10 | 2 |
| 2 | 224061151 | Washer 6 mm | 2 |
| 1 | 572030800 | LH ADJUST CAM | 1 |
| 1 | 572030900 | RH ADJUST CAM | 1 |
| 11 | 405404500 | Ball Bearing 6205 | 11 |
| 11 | M31002 | Circlip *Circlip | 11 |
| 2 | M542770 | Sleeve | 2 |
| M539654 | Rear Arm Welded | ||
| M549656 | AXLE | ||
| M5241654 | Front Arm Welded | ||
| M5440082 | Lock Pin | ||
| M41035 | Circlip | ||
| M539652 | Rear Cross Shaft | ||
| 6 | M545758 | Sleeve | 6 |
| 1 | M5440350 | Rh Lever | 1 |
| 6 | 222084565 | Screw-Hex.Cap Din.931 | 6 |
| M535455 | RUBBER STOPPER | ||
| M549492 | PLATE-HOLDER | ||
| 1 | M5440349 | Lh Lever | 1 |
| 2 | 228581045 | Elastic Stop Nut M8 | 2 |
| M541815 | Sleeve | ||
| 1 | M541816 | Axe *Shaft | 1 |
| 1 | M539672 | Lh Support | 1 |
| 1 | M539673 | Rh Support | 1 |
| M5440377 | BOLT-EYE ADJUSTER | ||
| 42 | M25004 | Spring Plate | 42 |
| M549713 | Sleeve | ||
| M5240069 | LH Extension | ||
| 4 | 228001045 | Hex. Nut M10 | 4 |
| M548262 | Protector | ||
| M40239 | SCREW | ||
| 6 | 228001045 | Hex. Nut M10 | 6 |
| M546668 | SLEEVE | ||
| M5240376 | RH Extension | ||
| 2 | M20009 | Washer 6.4 Din 9021 | 2 |
| 570045322 | Bond Wheel | ||
| 4 | M20011 | Washer | 4 |
| 12 | M40335 | Screw | 12 |
| M546577 | Sleeve | ||
| 1 | M5440422 | Sleeve | 1 |
| M539659 | Shaft | ||
| 4 | M40314 | Screw M10 X 30 | 4 |
