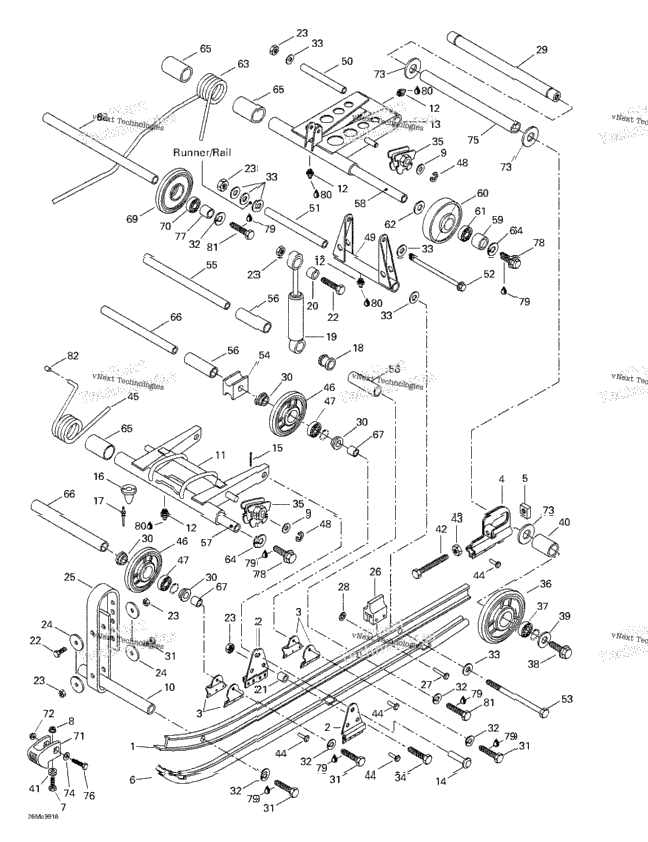

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 503187900 | Runner Tundra R. | ||
| 503161700 | Runner Tundra. | ||
| 4 | 503149800 | FRONT ARM SUPPORT | 4 |
| 503145000 | Support | ||
| 503188921 | RH Adjustment Plate Welded Includes 4 - 5. | ||
| 503188924 | LH Adjustment Plate Welded | ||
| 732610059 | Square Nut M10 | ||
| 2 | 503189239 | Runner | 2 |
| 2 | 207053044 | Hex. Screw M5 X 30 | 2 |
| 2 | 228751045 | Elastic Flange Nut M5 | 2 |
| 4 | 224001211 | Flat Washer 10 mm | 4 |
| 503189225 | Cross Shaft | ||
| 503145300 | Paint Front Arm | ||
| 4 | 408200700 | Grease Fitting | 4 |
| 503143500 | Paint Rear Arm | ||
| 414191500 | Clevis Pin | ||
| 2 | 371800200 | Cotter Pin | 2 |
| 570032900 | Rubber Stopper | ||
| 4 | 390402000 | Pop Rivet 3/16" | 4 |
| 1 | 572030700 | BUSHING | 1 |
| 503188901 | SHOCK Tundra R. | ||
| 414802100 | Shock Tundra. | ||
| 414802600 | CUSHION Tundra. | ||
| 503038300 | Spacer | ||
| 2 | 222083565 | Hex. Screw M8 x 35 | 2 |
| 7 | 232581414 | Hex. Elastic Stop Nut M8 | 7 |
| 4 | 517078700 | WASHER | 4 |
| 570025700 | Stopper Strap | ||
| 2 | 570047900 | FRONT RUBBER STOPPER | 2 |
| 4 | 390004800 | RIVET-STEEL SOLID | 4 |
| 4 | 389804300 | Push Nut | 4 |
| 1 | 503162400 | REAR AXLE | 1 |
| 503189093 | Cushion | ||
| 7 | 222083065 | Hex. Screw M8 x 30 | 7 |
| 10 | 224781140 | Lock Washer 8 mm | 10 |
| 7 | 224081171 | Flat Washer 8 mm | 7 |
| 2 | 222084065 | Hex. Screw M8 x 40 | 2 |
| 2 | 572030900 | RH ADJUST CAM | 2 |
| 2 | 572030800 | LH ADJUST CAM | 2 |
| 503188950 | Idler Wheel Ass'y (155) Includes 36 - 37. | ||
| 2 | 405404500 | Ball Bearing 6205 | 2 |
| 732601002 | Hex. Screw | ||
| 2 | 503183300 | Washer | 2 |
| 2 | 503161000 | Spacer Bushing | 2 |
| 2 | 517225900 | Flat Washer Tundra R. | 2 |
| 2 | 224051111 | Washer Tundra R. . | 2 |
| 207107544 | Hex. Screw M10 X 75 | ||
| 2 | 228001045 | Hex. Nut M10 | 2 |
| 390906200 | FLAT HEAD STEEL RIVET | ||
| 414880400 | RH Paint Spring | ||
| 1 | 414880500 | LH PAINT SPRING | 1 |
| 4 | 503188997 | Wheel 135 Includes 46 - 47. | 4 |
| 4 | 405404500 | Ball Bearing 6205 | 4 |
| 371907100 | e Circlip | ||
| 503144100 | PAINT PIVOT ARM | ||
| 1 | 503144300 | Upper Axle, Pivot Arm | 1 |
| 1 | 503144400 | LOWER PIVOT ARM | 1 |
| 1 | 732601197 | Bolt M8, Short | 1 |
| 1 | 732601198 | Long Bolt M8 | 1 |
| 572034300 | Spring Support | ||
| 503144500 | CROSS SHAFT | ||
| 572035600 | Plastic Bushing | ||
| 503144600 | Front Cross Shaft | ||
| 503144700 | Rear Cross Shaft | ||
| 503144800 | Spacer | ||
| 2 | 572095100 | Idler Wheel Includes 60 - 61. | 2 |
| 2 | 405404600 | Ball Bearing | 2 |
| 2 | 503144900 | Washer | 2 |
| 414880200 | RH PAINT SPRING | ||
| 414880300 | LH PAINT SPRING | ||
| 4 | 234101601 | Helicoidal Lock Washer M10 | 4 |
| 572039400 | BUSHING | ||
| 503145100 | Axle Center | ||
| 4 | 503144200 | SPACER | 4 |
| 503187400 | Cross Shaft | ||
| 572035400 | IDLER WHEEL Includes 69 - 70. | ||
| 572054000 | Runner Protector | ||
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 4 | 504108200 | SHIM | 4 |
| 2 | 224061121 | Flat Washer | 2 |
| 1 | 503162000 | CENTER SPACER | 1 |
| 2 | 222063065 | Hex. Screw M6 x 30 | 2 |
| 572108400 | SPACER | ||
| 4 | 207103544 | Hex. Screw M10 X 35 | 4 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 219700417 | SYNTHETIC GREASE, 400 G | ||
| 4 | 222082565 | Hex. Screw M8 x 25 | 4 |
| 503189165 | Cap |
