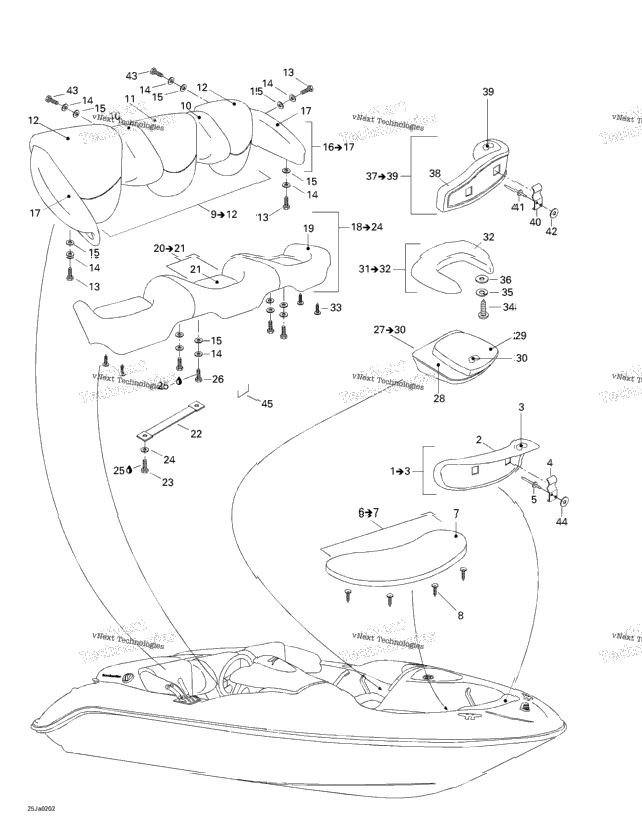

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204611715 | Front Backrest, Bright Yellow Includes 1 - 3. | ||
| 204611716 | Front Backrest Cover | ||
| XXXX | Not Available As Spare Part - Front Backrest Foam | ||
| 269000388 | SEAT SUPPORT | ||
| 4 | 293150043 | Pop Rivet 3/16" | 4 |
| 204611717 | Front Seat Includes 6 - 7. | ||
| 204611718 | Front Seat Cover | ||
| 4 | 293730006 | Black, Dart | 4 |
| 204611719 | Rear Backrest Ass'y Includes 9 - 12. | ||
| 204611720 | Backrest Cover, Bright Yellow | ||
| 204611721 | Backrest Cover (Center) | ||
| 204611722 | Backrest Cover RH (Starboard) | ||
| 204611723 | Backrest Cover LH (Port Side) | ||
| 207363060 | Hex. Screw M6 X 30, Scotch Grip | ||
| 14 | 234062600 | Flat Washer M6, Stainless | 14 |
| 14 | 204100006 | Washer | 14 |
| 204611726 | Armrest Ass'y, Starboard Includes 16 - 17. | ||
| 204611724 | Armrest Ass'y, Port Side | ||
| 204611727 | Armrest Cover | ||
| 204611725 | LH Armrest Cover (Port Side) | ||
| 204611728 | Rear Seat Ass'y Includes 18 - 24. | ||
| 204611729 | Rear Seat Cover, Bright Yellow | ||
| 204611730 | Cushion Ass'y Includes 20 - 21. | ||
| XXXX | Not Available As Spare Part - Rear Seat Pillow Cover | ||
| 204611732 | Rear Seat Strap, Bright Yellow | ||
| 4 | 207161660 | Hex. Screw M6 X 16 | 4 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 4 | 207364560 | Hex. Screw M6 x 45, Scotch Grip | 4 |
| 204611733 | Keeper Seat Ass'y Includes 27 - 30. | ||
| 204610557 | Keeper Seat Base Cover | ||
| 204611734 | Keeper Seat Cover | ||
| 269000333 | Seat Foam | ||
| 204611735 | Keeper Seat Ring Ass'y, Bright Yellow Includes 31 - 32. | ||
| 204611736 | Keeper Seat Ring Cover | ||
| 4 | 293730021 | Dart | 4 |
| 209663860 | Tapping Phillips Screw 6.3 X 38 | ||
| 4 | 234161601 | Lock Washer Helical M6 | 4 |
| 4 | 234061600 | Stainless Flat Washer M6 | 4 |
| 204611652 | Keeper Seat Backrest Includes 37 - 39. | ||
| 204611737 | Keeper Seat Backrest Cover | ||
| 269000339 | Keeper Seat Backrest Foam | ||
| 6 | 293150043 | Pop Rivet 3/16" | 6 |
| 6 | 234061600 | Stainless Flat Washer M6 | 6 |
| 207364060 | Hex. Screw M6 X 40, Scotch Grip | ||
| 204901090 | Sea-doo Logo |
