Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

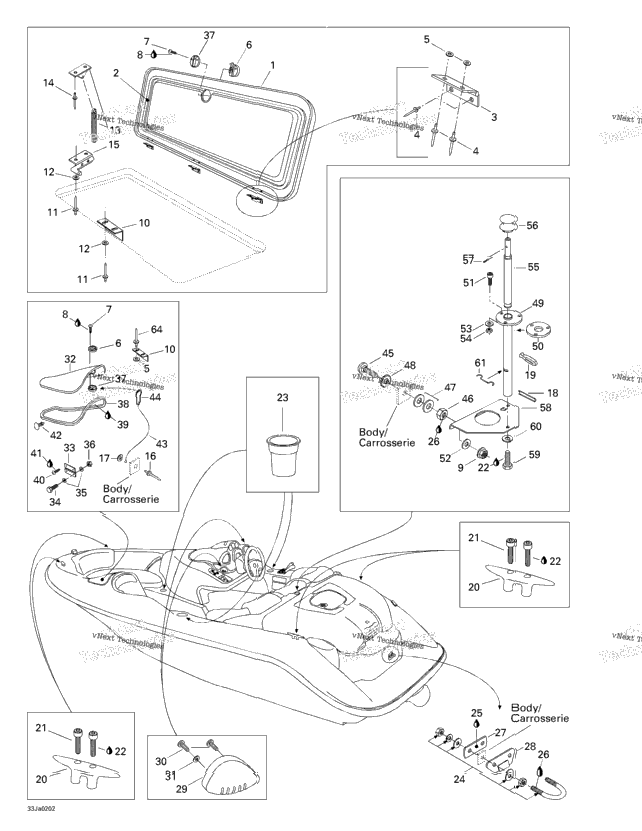

| XXXX | Not Available As Spare Part - Central Cover | ||
| 1 | 219704368 | Seal Tray 1000Mm Long | 1 |
| 3 | 291000538 | Hinge | 3 |
| 12 | 293150088 | Pop Rivet 3/16" | 12 |
| 8 | 234051600 | Flat Washer M5, Stainless | 8 |
| 204070120 | LATCH, WHITE | ||
| 4 | 208651660 | SCREW M5 X 16 | 4 |
| 219704457 | Loctite Adhesive 425 20ML | ||
| 2 | 212000005 | NUT-STOP ELASTIC MS-17830 | 2 |
| 3 | 204070060 | KEEPER | 3 |
| 4 | 293150088 | Pop Rivet 3/16" | 4 |
| 211200039 | FLAT WASHER 3/16? | ||
| 204000071 | SPRING SEAT | ||
| 293150055 | RIVET_POP 3/16 | ||
| 291000719 | Spring Bracket | ||
| 3 | 293150039 | Pop Rivet 3/16" | 3 |
| 1 | 234052600 | Flat Washer 5 mm, Stainless | 1 |
| 1 | 219704353 | Was 271000110 Protection Trim | 1 |
| 1 | 570023800 | Windshield Latch | 1 |
| 4 | 204070100 | CLEAT | 4 |
| 205365560 | Socket Head Screw M6 x 55 | ||
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 3 | 291000619 | CUP HOLDER | 3 |
| 204070418 | U-Bolt | ||
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| XXXX | Not Available As Spare Part - Ski Tow Insert | ||
| 204070054 | Ski Tow Plate, Black | ||
| 291000829 | Ventilation Grill, Yellow | ||
| 4 | 241642060 | Flange Screw K40 X 20 | 4 |
| 4 | 234042600 | Flat Washer 4 mm, Stainless | 4 |
| 204071120 | Storage Door | ||
| 2 | 269700031 | Hinge | 2 |
| 205431060 | Socket Head Screw M3 X 10 | ||
| 8 | 234031600 | Flat Washer 3 mm, Stainless Steel | 8 |
| 4 | 232130600 | HEX. JAM NUT 3 MM | 4 |
| 204070958 | CUP BRACKET | ||
| 1 | 204070055 | BLACK TRIM, METER | 1 |
| 219704463 | Était Was 413705800 Loctite 414 , 29.5 c.c | ||
| 209631360 | SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 | ||
| 413703400 | Sealant LOCTITE 222MS | ||
| 293730013 | Dart | ||
| 1 | 204000117 | RETAINER CABLE | 1 |
| 1 | 293750000 | CABLE CLIP | 1 |
| 204000130 | Elevator Bolt | ||
| 211100026 | HEX. NUT 1/4 | ||
| 4 | 234081600 | Stainless, Flat Washer 8 mm | 4 |
| 234381608 | TOOTHED LOCK WASHER | ||
| XXXX | Not Available As Spare Part - Fixation Tube | ||
| 293830045 | RUBBER WASHER | ||
| 3 | 208564060 | PHILLIPS SCREW M6 X 40 | 3 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 3 | 234061600 | Stainless Flat Washer M6 | 3 |
| 3 | 232561600 | Hex. Elastic Stop Nut M6 | 3 |
| 204071624 | SKI SHAFT | ||
| 1 | 293000004 | SKI SHAFT CAP | 1 |
| 211400004 | ROLLED PIN M3 X 30 | ||
| 1 | 204071140 | FIXATION PLATE | 1 |
| 1 | 207181860 | Hex. Screw M8 X 18 | 1 |
| 1 | 234181601 | Lock Washer 8 mm, Stainless | 1 |
| 291000750 | Spring |
