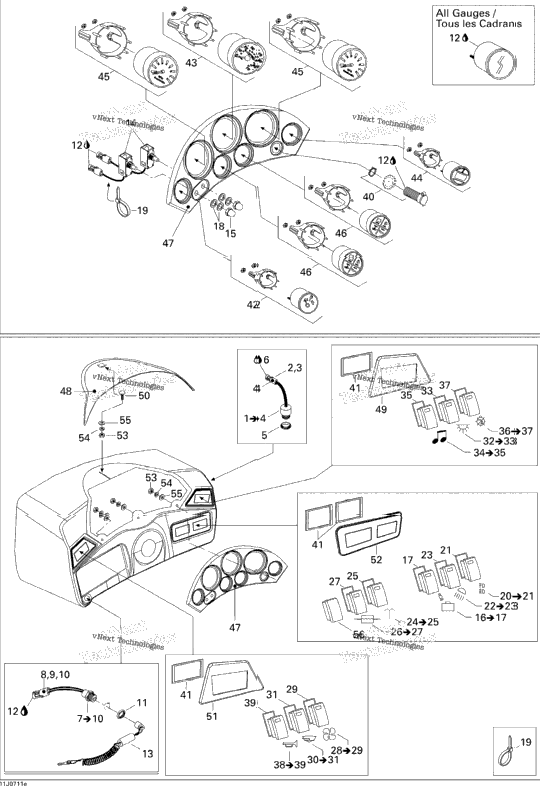

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 204470913 | Buzzer Ass'y Includes 1 To 4 | 1 |
| 2 | 278000222 | Male Terminal | 2 |
| 2 | 278000218 | Wire Seal | 2 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 278000707 | Buzzer Nut | ||
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 278000646 | Emergency Switch Includes 7 To 10 | 1 |
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 3 | 278000218 | Wire Seal | 3 |
| 3 | 278000223 | Female Terminal | 3 |
| 1 | 278000508 | Safety Switch Nut | 1 |
| 1 | 204471099 | Safety Lanyard | 1 |
| 278000621 | IGNITION SWITCH | ||
| 278000565 | IGNITION SWITCH CAP, RED | ||
| 1 | 204470402 | LIGHT SWITCH Includes 16 To 17 | 1 |
| 204470132 | Gasket | ||
| 4 | 204100027 | FLAT WASHER | 4 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 204470403 | LIGHT SWITCH, BOARDING Includes 20 To 21 | ||
| 204470404 | LIGHT SWITCH, DOCKING Includes 22 To 23 | ||
| 1 | 204470405 | SWITCH, SMALL POOL PUMP Includes 24 To 25 | 1 |
| 204470406 | SWITCH, PASSENGER WATER PUMP Includes 26 To 27 | ||
| 204470011 | VENTILATION SWITCH ASS'Y Includes 28 To 29 | ||
| 204470099 | BILGE PUMP SWITCH ASS'Y Includes 30 To 31 | ||
| 204470102 | COURTESY LIGHT SWITCH ASS'Y Includes 32 To 33 | ||
| 204471116 | STEREO SWITCH Includes 34 To 35 | ||
| 1 | 204470100 | LIGHT SWITCH ASS'Y Includes 36 To 37 | 1 |
| 1 | 204470101 | HORN SWITCH ASS'Y Includes 38 To 39 | 1 |
| 1 | 204470907 | Receptacle, 12 Volt | 1 |
| 4 | 204470343 | LOCKING PLATE | 4 |
| 204471129 | FUEL GAUGE | ||
| 204470943 | Speedometer | ||
| 1 | 204470917 | DEPTH GAUGE | 1 |
| 204471019 | Tachometer Gauge | ||
| 204471130 | ENGINE WARNING GAUGE | ||
| 204471049 | DASH PANEL ASS?Y | ||
| 204471136 | Dash Panel Top | ||
| 204471025 | RH Switch Panel | ||
| 204000130 | Elevator Bolt | ||
| 204471026 | LH Switch Panel | ||
| 204471051 | Lower Switch Panel | ||
| 211100026 | HEX. NUT 1/4 | ||
| 4 | 211200025 | Lock Washer 1/4” | 4 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 1 | 204470596 | SWITCH PLUG | 1 |
