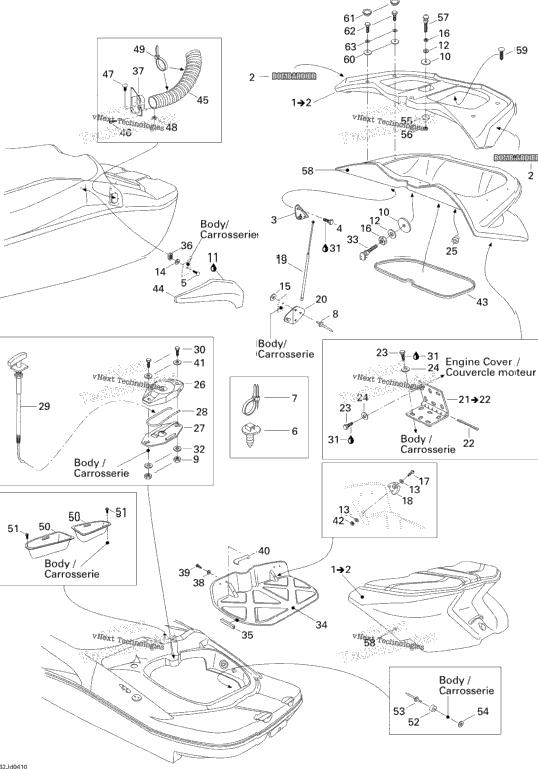

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204612760 | Spoiler Ass’y Includes Items 1 to 2 | ||
| 204901398 | Bombardier Logo | ||
| 2 | 204070065 | SHOCK BRACKET | 2 |
| 6 | 207141660 | Hex. Screw M4 X 16 | 6 |
| 204000130 | Elevator Bolt | ||
| 1 | 293730018 | Mount Dart | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 6 | 293150043 | Pop Rivet 3/16" | 6 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 2 | 291000628 | RUBBER WASHER | 2 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 2 | 234002600 | Flat Washer 10 mm, Stainless | 2 |
| 4 | 234040600 | Flat Washer 4 mm | 4 |
| 8 | 234062600 | Flat Washer M6, Stainless | 8 |
| 6 | 234051600 | Flat Washer M5, Stainless | 6 |
| 2 | 232100600 | Hex. Jam Nut M10 | 2 |
| 2 | 208642560 | PHILLIPS SCREW M4 X 25 | 2 |
| 291000642 | Pole Support | ||
| 204071921 | GAS SHOCK CYLINDER | ||
| 204070127 | HINGE ASS'Y Includes Items 21 to 22 | ||
| 204070205 | Cotter Pin M2.5 X 12 | ||
| 12 | 207162560 | Hex. Screw M6 X 25 | 12 |
| 12 | 234061600 | Stainless Flat Washer M6 | 12 |
| 1 | 293720017 | GROMMET | 1 |
| 1 | 204070037 | LATCH BASE | 1 |
| 204070036 | LATCH COVER | ||
| 204070038 | SPRING | ||
| 204070049 | LATCH CABLE | ||
| 2 | 207163560 | Hex. Screw M6 X 35 | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 204100065 | Latch Stud | ||
| 204050532 | ACCESSORIES COVER | ||
| 1 | 219704368 | Seal Tray 1000Mm Long | 1 |
| 8 | 212000005 | NUT-STOP ELASTIC MS-17830 | 8 |
| 1 | 204071857 | INLET VENT, STARBOARD | 1 |
| 1 | 204071856 | INLET VENT, PORT SIDE | 1 |
| 4 | 234042600 | Flat Washer 4 mm, Stainless | 4 |
| 4 | 241141660 | Hex. Flange Screw K40 X 16 | 4 |
| 204050159 | HANDLE, BLACK | ||
| 2 | 234061600 | Stainless Flat Washer M6 | 2 |
| 2 | 232541600 | Elastic Stop Nut M4 | 2 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 204071797 | Vent Cover, Starboard | ||
| 204071796 | Vent Cover, Port Side | ||
| 1 | 219704358 | Was 204050122 Vent Hose 4" | 1 |
| 250000090 | TAPPING SCREW M4.2 X 19 | ||
| 8 | 293730006 | Black, Dart | 8 |
| 4 | 293750008 | Tie Wrap 368 mm | 4 |
| 204071859 | REAR STORAGE TRAY, STARBOARD | ||
| 204071858 | REAR STORAGE TRAY, PORT SIDE | ||
| 204100095 | SLOTTED BOLT 1/4?-20 X 1? | ||
| 293830043 | Rubber Stopper | ||
| 2 | 293150013 | Pop Rivet 3/16" | 2 |
| 2 | 234051600 | Flat Washer M5, Stainless | 2 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 1 | 232501600 | HEX. ELASTIC NUT M10 | 1 |
| 291000689 | LATCH STUD | ||
| 204071659 | Engine Cover | ||
| 1 | 293730021 | Dart | 1 |
| 5 | 234002600 | Flat Washer 10 mm, Stainless | 5 |
| 5 | 204130065 | PLUG 1-1/2, BLACK | 5 |
| 5 | 207362560 | Hex. Screw M6 X 25, Scotch Grip | 5 |
| 5 | 234062600 | Flat Washer M6, Stainless | 5 |
