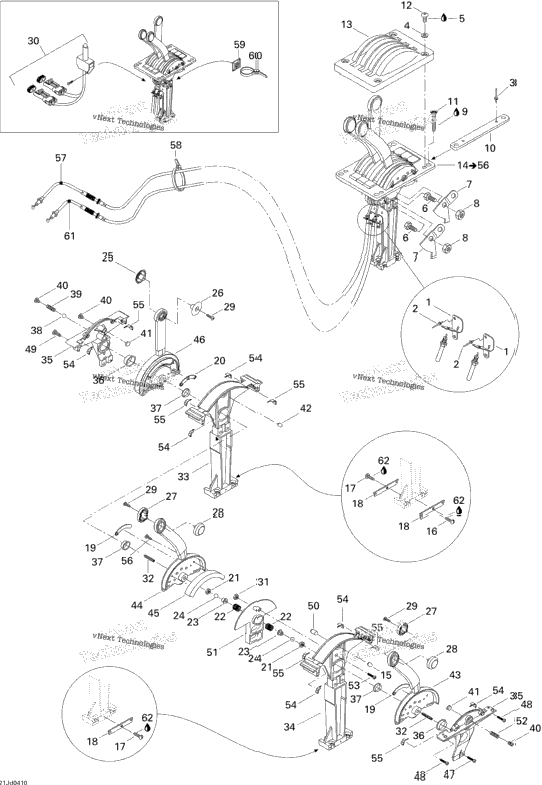

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 277000504 | CABLE SUPPORT | 2 |
| 4 | 293150026 | RIVET_POP 1/8 | 4 |
| 4 | 293150013 | Pop Rivet 3/16" | 4 |
| 4 | 234040600 | Flat Washer 4 mm | 4 |
| 219704457 | Loctite Adhesive 425 20ML | ||
| 2 | 207151660 | HEX. SCREW M5 X 16 | 2 |
| 204390045 | THROTTLE LINK | ||
| 2 | 232551600 | Hex. Elastic Nut M5 | 2 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 2 | 293450061 | SHIFTER INSERT | 2 |
| 205353060 | SCREW M5 X 30 | ||
| 4 | 208641060 | Phillips Screw M4 X 10 | 4 |
| 204390124 | Control Plate | ||
| 295501111 | Control Ultraflex Ass'y INCLUDES 14 TO 56 | ||
| 277000708 | Throttle Lever Pin | ||
| XXXX | Not Available As Spare Part - Screw M5 x 14 | ||
| XXXX | Not Available As Spare Part - Screw M5 x 16 | ||
| XXXX | Not Available As Spare Part - Plate | ||
| 2 | 277000707 | SPACER | 2 |
| 277000408 | Shift Lever Spacer | ||
| 2 | 277000425 | NUT M6 | 2 |
| XXXX | Not Available As Spare Part - Spring | ||
| XXXX | Not Available As Spare Part - Bushing | ||
| 277000652 | Ball 6 mm | ||
| 277000417 | HALF-SHIFT HANDLE, THREADED | ||
| 277000418 | HALF-SHIFT HANDLE | ||
| 277000416 | HALF-THROTTLE HANDLE | ||
| 277000415 | HALF-THROTTLE HANDLE, THREADED | ||
| 3 | 277000419 | SCREW M3.5 X 25 | 3 |
| 204130094 | NEUTRAL SWITCH | ||
| 1 | 232551600 | Hex. Elastic Nut M5 | 1 |
| XXXX | Not Available As Spare Part - Screw M6 x 20 | ||
| XXXX | Not Available As Spare Part - Left Frame | ||
| XXXX | Not Available As Spare Part - Right Frame | ||
| 277000653 | Half-Case | ||
| 2 | 277000397 | BUSHING | 2 |
| 277000398 | BUSHING | ||
| 277000399 | BALL | ||
| 1 | 277000400 | SPRING | 1 |
| 3 | 277000402 | CAP SCREW | 3 |
| 277000403 | FRICTION INSERT | ||
| 1 | 277000704 | BLOCKING PIVOT | 1 |
| 277000655 | THROTTLE LEVER | ||
| 277000409 | LH THROTTLE LEVER | ||
| 277000410 | Guide Block | ||
| 277000414 | SHIFT LEVER | ||
| 2 | 277000420 | SCREW M5 X 60 | 2 |
| 2 | 204100016 | SCREW M5 X 20 | 2 |
| 277000422 | Screw M5 X 70 | ||
| 1 | 277000705 | THROTTLE LEVER PIN | 1 |
| 277000706 | SPACER FRAME | ||
| 1 | 277000401 | SPRING | 1 |
| 277000412 | Screw M5 X 25 | ||
| 277000423 | RH Water Seal | ||
| 277000424 | LH Water Seal | ||
| 277000411 | Screw M4.2 x 19 | ||
| 204390385 | LH Throttle Cable | ||
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 293750015 | TIE RAP MOUNT | ||
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 204390386 | RH Throttle Cable | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
