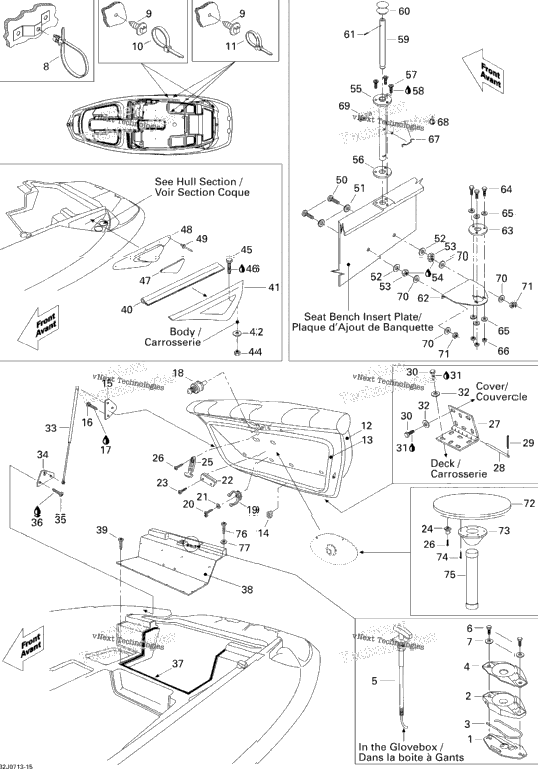

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204070036 | LATCH COVER | ||
| 1 | 204070037 | LATCH BASE | 1 |
| 204070038 | SPRING | ||
| 204070952 | LATCH PROTECTOR | ||
| 204072793 | LATCH CABLE | ||
| 2 | 207163560 | Hex. Screw M6 X 35 | 2 |
| 2 | 234061600 | Stainless Flat Washer M6 | 2 |
| 43 | 204130098 | TIE RAP WITH DART | 43 |
| 5 | 293730040 | Mount Dart | 5 |
| 2 | 293750008 | Tie Wrap 368 mm | 2 |
| 3 | 414115200 | Tie-Rap 180 mm | 3 |
| 204072663 | Engine Cover | ||
| 204130083 | D-SEAL RUBBER | ||
| 4 | 293720017 | GROMMET | 4 |
| 204071673 | Shock Bracket | ||
| 6 | 207151660 | HEX. SCREW M5 X 16 | 6 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 204130146 | Latch Stud | 1 |
| 204070342 | POLE CLIP | ||
| 209642560 | PHILLIPS SCREW M4.2 X 25 | ||
| 2 | 234040600 | Flat Washer 4 mm | 2 |
| 2 | 204611940 | SEAT LATCH | 2 |
| 4 | 204100120 | TAPPING PAN SCREW M14 X 2 | 4 |
| 204071376 | STRAP KEEPER | ||
| 204071291 | DOOR STRAP | ||
| 6 | 204100081 | SCREW #8 X 1-1/4? | 6 |
| 204070127 | HINGE ASS'Y | ||
| 204070204 | HINGE ROD | ||
| 204070205 | Cotter Pin M2.5 X 12 | ||
| 12 | 207162560 | Hex. Screw M6 X 25 | 12 |
| 12 | 234061600 | Stainless Flat Washer M6 | 12 |
| 204072798 | GAS SHOCK | ||
| 207152560 | HEX. SCREW M5 X 25 | ||
| 293200032 | TRAY SEAL, METER | ||
| 204072685 | Seat Bench Insert Plate | ||
| 11 | 204100200 | Phillips Head Screw 1/4 - 20 X 1-1/2" | 11 |
| 204073002 | J-Trim, Blue | ||
| 204072491 | Vent Cover, Port Side, Blue | ||
| 204072493 | VENT COVER, STARBOARD, BLUE | ||
| 4 | 211200019 | FLAT WASHER | 4 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 1 | 204073029 | VENT INSERT, PORT SIDE | 1 |
| 1 | 204073035 | VENT INSERT, STARBOARD | 1 |
| 204072801 | VENT BASE, PORT SIDE | ||
| 1 | 204072802 | VENT BASE, STARBOARD | 1 |
| 14 | 293150036 | RIVET_POP 1/8 X ,750 | 14 |
| 204000130 | Elevator Bolt | ||
| 234381608 | TOOTHED LOCK WASHER | ||
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 211100026 | HEX. NUT 1/4 | ||
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 204072904 | FIX TUBE | ||
| 293830045 | RUBBER WASHER | ||
| 3 | 208564060 | PHILLIPS SCREW M6 X 40 | 3 |
| 1 | 204072616 | SKI SHAFT | 1 |
| 1 | 293000004 | SKI SHAFT CAP | 1 |
| 211400004 | ROLLED PIN M3 X 30 | ||
| 1 | 204072906 | FIXATION PLATE | 1 |
| 291001060 | RETAINER WASHER | ||
| 4 | 207162060 | Hex. Forming Screw M6 X 20 | 4 |
| 6 | 234062600 | Flat Washer M6, Stainless | 6 |
| 3 | 232561600 | Hex. Elastic Stop Nut M6 | 3 |
| 1 | 291001205 | SPRING | 1 |
| 293550010 | Synthetic Grease, 400 G | ||
| 1 | 570023800 | Windshield Latch | 1 |
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 2 | 212000005 | NUT-STOP ELASTIC MS-17830 | 2 |
| 204072391 | COCKPIT TABLE | ||
| 1 | 204071315 | TABLE MOUNT | 1 |
| 6 | 209951960 | TAPPING SCREW M5 X 19 | 6 |
| 1 | 204070634 | TABLE POST, LARGE | 1 |
| 2 | 204100039 | SCREW 1/4?-20 X 2? | 2 |
| 204100057 | FINITION WASHER |
