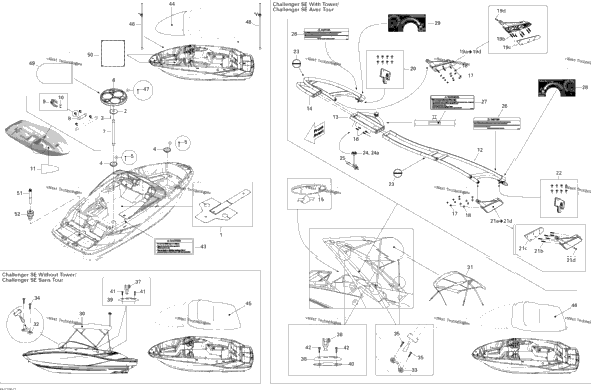

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 269800022 | COCKPIT CARPET | ||
| 1 | 204071315 | TABLE MOUNT | 1 |
| 6 | 209951960 | TAPPING SCREW M5 X 19 | 6 |
| 2 | 204071209 | TABLE BASE | 2 |
| 12 | 209943260 | Phillips Tapping Screw M4.2 X 32 | 12 |
| 1 | 204073212 | COCKPIT TABLE | 1 |
| 1 | 204070634 | TABLE POST, LARGE | 1 |
| 269800027 | TABLE POST, SMALL | ||
| 204070342 | POLE CLIP | ||
| 293150029 | RIVET_POP 5/32 | ||
| 1 | 264000070 | SKI LOCKER CARPET | 1 |
| 269800258 | LH TOWER Port Side, With Tower | ||
| 1 | 269800266 | TOWER HEADER With Tower | 1 |
| 1 | 269800260 | RH Tower Starboard, With Tower | 1 |
| 1 | 269800364 | MIRROR, 3-WAY With Tower | 1 |
| 4 | 269800197 | SCREW 1/2 X 13 X 1.25 With Tower | 4 |
| 12 | 269800343 | Nylon Nut 1/2" X 13 With Tower | 12 |
| 269800344 | TOWER MOUNT FENDER WASHER 1/2 With Tower | ||
| 1 | 269800253 | RH TOWER SUPPORT ASS'Y Includes 19a to 19d, Starboard, With Tower | 1 |
| 269800349 | STUD 1/2 Starboard | ||
| 269800352 | TOWER MOUNT GASKET - 210 - STBD Starboard | ||
| 269800350 | TOWER MOUNT PIVOT BOLT 1/2 X 13 X 1.5 Starboard | ||
| 1 | 204950247 | CAM LATCH KIT With Tower | 1 |
| 1 | 269800254 | LH TOWER SUPPORT Includes 21a to 21d, Port Side, With Tower | 1 |
| 269800349 | STUD 1/2 Port Side | ||
| 1 | 269800441 | TOWER MOUNT GASKET - 210 - PORT Port Side | 1 |
| 269800350 | TOWER MOUNT PIVOT BOLT 1/2 X 13 X 1.5 Port Side | ||
| 2 | 269800234 | COVER - SPEAKER MOUNT With Tower | 2 |
| 204471183 | Stern Light With Tower | ||
| 204470053 | Bulb With Tower | ||
| 2 | 269800422 | SCREW 8-18 X 1 With Tower | 2 |
| 269800405 | CAUTION LABEL, TOWER With Tower | ||
| 1 | 204902068 | WARNING LABEL, TOWER With Tower | 1 |
| 219903499 | LABEL-TOWER/LEVER-PORT Port Side, With Tower | ||
| 219903500 | LABEL-TOWER/LEVER-STBD. Starboard, With Tower | ||
| 269800032 | BIMINI TOP, WITHOUT TOWER Without Tower | ||
| 1 | 296000349 | STERN LIGHT Without Tower | 1 |
| 1 | 269800208 | Bimini Top, W/Tower With Tower | 1 |
| 204071845 | STRAP EYE Without Tower | ||
| 2 | 269800358 | STRAP EYE, STAINLESS With Tower | 2 |
| 4 | 204100049 | PHILLIPS TAPPING SCREW #8 X 1 Without Tower | 4 |
| 4 | 269800422 | SCREW 8-18 X 1 With Tower | 4 |
| 2 | 204950033 | BIMINI POST With Tower | 2 |
| 4 | 204950033 | BIMINI POST Without Tower | 4 |
| 2 | 204950034 | BIMINI BASE With Tower | 2 |
| 4 | 204950034 | BIMINI BASE Without Tower | 4 |
| 2 | 204950031 | BIMINI SPACER With Tower | 2 |
| 8 | 204100049 | PHILLIPS TAPPING SCREW #8 X 1 Without Tower | 8 |
| 204901331 | CAUTION LABEL, BIMINI TOP | ||
| 269800382 | Bow Cover | ||
| 269800383 | Cockpit Cover Without Tower | ||
| 269800384 | COCKPIT COVER With Tower | ||
| 2 | 209943260 | Phillips Tapping Screw M4.2 X 32 | 2 |
| 2 | 269800404 | SUPPORT POLE COVER | 2 |
| 1 | 269800385 | OVAL TABLE BAG | 1 |
| 2 | 269800386 | HELM CONSOLE COVER | 2 |
| 269800135 | SKI PYLON | ||
| 269800192 | SKI PYLON INSTALL KIT |
