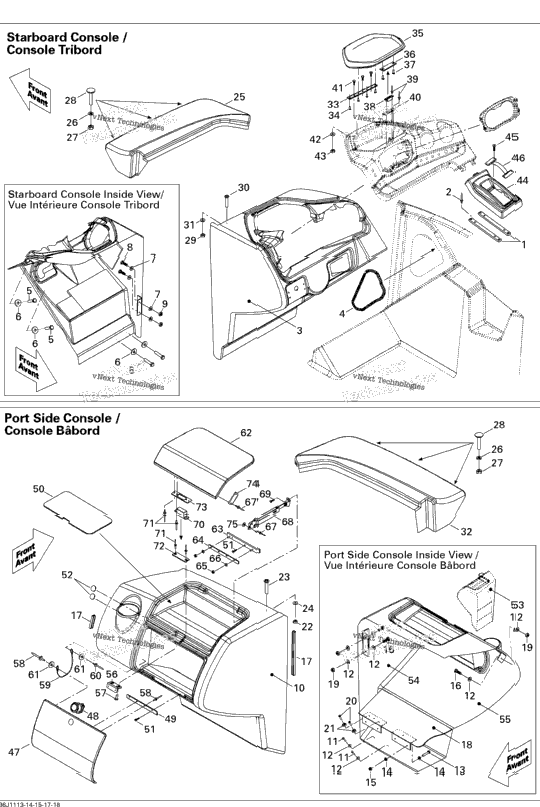

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 293450061 | SHIFTER INSERT | 2 |
| 4 | 293150013 | Pop Rivet 3/16" | 4 |
| 1 | 291003135 | CONSOLE ASS'Y, STARBOARD | 1 |
| 204550028 | SLIT CONDUIT, METER | ||
| 6 | 207163060 | Hex. Screw M6 X 30 | 6 |
| 6 | 234062600 | Flat Washer M6, Stainless | 6 |
| 4 | 234061600 | Stainless Flat Washer M6 | 4 |
| 2 | 207163060 | Hex. Screw M6 X 30 | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 1 | 291003139 | CONSOLE ASS'Y, PORT SIDE | 1 |
| 4 | 207165060 | Hex. Screw M6 X 50 | 4 |
| 10 | 234062600 | Flat Washer M6, Stainless | 10 |
| 4 | 207163060 | Hex. Screw M6 X 30 | 4 |
| 8 | 234061600 | Stainless Flat Washer M6 | 8 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 3 | 207164560 | Hex. Screw M6 X 45 | 3 |
| 1 | 204071878 | TRIM, WHITE | 1 |
| 1 | 204072499 | GLOVEBOX TRAY | 1 |
| 3 | 232561600 | Hex. Elastic Stop Nut M6 | 3 |
| 4 | 204100049 | PHILLIPS TAPPING SCREW #8 X 1 | 4 |
| 204100057 | FINITION WASHER | ||
| 2 | 208563060 | OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 291003155 | CONSOLE CAP, STARBOARD | 1 |
| 6 | 204100139 | WASHER-FENDER/S.S. | 6 |
| 6 | 212000005 | NUT-STOP ELASTIC MS-17830 | 6 |
| 204000130 | Elevator Bolt | ||
| 1 | 291003156 | CONSOLE CAP, PORT SIDE | 1 |
| 1 | 291003006 | HINGE | 1 |
| XXXX | Not Available As Spare Part - Pan Head Screw | ||
| 1 | 291003181 | CONSOLE BROW | 1 |
| 1 | 204072908 | LATCH BRACKET | 1 |
| 2 | 293150026 | RIVET_POP 1/8 | 2 |
| 1 | 204072907 | MAGNETIC CATCH | 1 |
| 293150057 | Rivet 1/8” | ||
| 1 | 204073168 | LATCH SPACER | 1 |
| XXXX | Not Available As Spare Part - Hex. Screw | ||
| 3 | 234052600 | Flat Washer 5 mm, Stainless | 3 |
| 3 | 212000006 | HEX. ELASTIC STOP NUT | 3 |
| 1 | 291003138 | SHIFTER PANEL | 1 |
| 208641260 | PHILLIPS SCREW M4 X 12 | ||
| 1 | 291003310 | SHIFTER PANEL INSERT | 1 |
| 1 | 291003358 | GLOVEBOX LOWER DOOR | 1 |
| 204073210 | LATCH | ||
| 1 | 204073517 | HINGE, BLACK | 1 |
| 204073048 | MAT | ||
| 8 | 205441660 | Socket Head Screw M4 X 16 | 8 |
| 4 | 204070940 | BUMPER | 4 |
| 1 | 204072500 | DECK CARPET, PORT SIDE | 1 |
| 1 | 204072989 | CONSOLE CARPET, PORT SIDE | 1 |
| 1 | 204072501 | CONSOLE CARPET, PORT SIDE | 1 |
| 1 | 204070060 | KEEPER | 1 |
| 209641360 | TAPPING PHILLIPS SCREW M4.2 X 13 | ||
| 5 | 204130050 | POP RIVET 3/16 | 5 |
| 1 | 204071498 | RETAINER CABLE | 1 |
| 1 | 293150008 | Pop Rivet 3/16" | 1 |
| 2 | 234052600 | Flat Washer 5 mm, Stainless | 2 |
| 1 | 291003137 | GLOVEBOX UPPER DOOR | 1 |
| 1 | 204073197 | HINGE, BLACK | 1 |
| 1 | 204130226 | SPACER | 1 |
| 2 | 232541600 | Elastic Stop Nut M4 | 2 |
| 2 | 234041600 | Flat Washer 4 mm, Stainless | 2 |
| 4 | 293150006 | Pop Rivet 1/8" | 4 |
| 1 | 204073220 | GLOVEBOX STAY | 1 |
| 6 | 293150006 | Pop Rivet 1/8" | 6 |
| 1 | 204073309 | GLOVEBOX STAY BRACKET | 1 |
| 2 | 234032600 | Flat Washer M3, Stainless | 2 |
