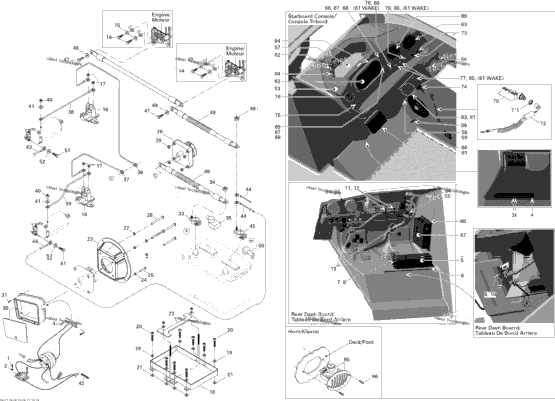

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 209641960 | PHILLIPS TAPPING SCREW M4.2 X 19 | 2 |
| 2 | 234041600 | Flat Washer 4 mm, Stainless | 2 |
| 204471329 | BREAKER CIRCUIT PANEL | ||
| 278002535 | BREAKER CIRCUIT PANEL Europe | ||
| 209641360 | TAPPING PHILLIPS SCREW M4.2 X 13 | ||
| 204471375 | Circuit Breaker Panel Cover | ||
| 1 | 212100005 | Hex. Nut | 1 |
| 1 | 234151601 | Helical Lock Washer M5 | 1 |
| 2 | 293730040 | Mount Dart | 2 |
| 2 | 414115200 | Tie-Rap 180 mm | 2 |
| 3 | 204130098 | TIE RAP WITH DART | 3 |
| 6 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 6 |
| 6 | 234061600 | Stainless Flat Washer M6 | 6 |
| 2 | 278002347 | Starter Relay | 2 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 1 | 204471008 | BATTERY SUPPORT | 1 |
| 8 | 204100069 | FLAT WASHER | 8 |
| 8 | 205062560 | Socket Head Screw M6 X 25 | 8 |
| 8 | 211200029 | FLAT WASHER, PLASTIC | 8 |
| 1 | 204471290 | TOP BATTERY SUPPORT | 1 |
| 1 | 204471341 | SWITCH SUPPORT | 1 |
| 4 | 234041600 | Flat Washer 4 mm, Stainless | 4 |
| 209642560 | PHILLIPS SCREW M4.2 X 25 | ||
| 204471339 | BATTERY SWITCH | ||
| 4 | 234051600 | Flat Washer M5, Stainless | 4 |
| 205455060 | SOCKET HEAD SCREW M5 X 50 | ||
| 4 | 232051600 | Hex. Nut M5 | 4 |
| 1 | 204471175 | BATTERY SWITCH COVER | 1 |
| 1 | 204471193 | POSITIF SWITCH CABLE | 1 |
| 204470349 | POSITIVE BATTERY POLE | ||
| 1 | 211100063 | HEX. NUT 3/8-16 | 1 |
| 1 | 204470269 | RED BOOT | 1 |
| 204471190 | RED CABLE, PORT SIDE | ||
| 1 | 204471423 | RED CABLE | 1 |
| 204471188 | Red Cable | ||
| 1 | 204471187 | RED CABLE, STARBOARD | 1 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 2 | 234061600 | Stainless Flat Washer M6 | 2 |
| 1 | 204130176 | SLIT CONDUIT 1 | 1 |
| 1 | 204471191 | GROUND CABLE | 1 |
| 204471192 | GROUND CABLE | ||
| 1 | 204470348 | NEGATIVE BATTERY POLE | 1 |
| 1 | 204100052 | HEX. NUT 5/16?-18 | 1 |
| 2 | 207361260 | Hex. Screw M6 X 12, Scotch Grip | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 1 | 204470839 | GROUND CABLE | 1 |
| 1 | 278002575 | BOOT-BLACK | 1 |
| 1 | 278002593 | FASCIA ASS'Y | 1 |
| 2 | 204100089 | FLAT WASHER 9/32? | 2 |
| 2 | 204100262 | HEXAGONAL NUT 8-32 | 2 |
| 2 | 204100054 | SCREW 8 X 3/4? | 2 |
| 1 | 278002618 | HELM STORAGE MAT | 1 |
| 1 | 278002617 | RH PANEL SWITCH, STD & SE | 1 |
| 250000092 | Phillips Tapping Screw 3.5 X 19 | ||
| 1 | 278002546 | STEREO PANEL | 1 |
| 204471374 | GAUGE CLUSTER | ||
| 278002424 | FUEL/VOLT GAUGE | ||
| 1 | 278002433 | GAUGE BEZEL | 1 |
| 2 | 205062060 | Socket Head Screw M6 X 20 | 2 |
| 2 | 205063560 | Socket Head Screw M6 X 35 | 2 |
| 4 | 204100139 | WASHER-FENDER/S.S. | 4 |
| 278002423 | SPEEDO GAUGE | ||
| 1 | 278002421 | LANYARD SWITCH | 1 |
| 278002472 | FLANGED NUT | ||
| 1 | 278002450 | SAFETY LANYARD | 1 |
| 278002504 | START SWITCH | ||
| 1 | 710002323 | Ignition Switch With Key Spare Key: 715900019, 715900029 | 1 |
| 278002422 | SWITCH | ||
| 278002446 | Switch | ||
| 278002413 | SWITCH | ||
| 278002414 | SWITCH | ||
| 278002505 | SWITCH | ||
| 278002416 | NUT SWITCH | ||
| XXX | Not Available As Spare Parts | ||
| 1 | 278002417 | USB CONNECTOR | 1 |
| 2 | 710001248 | DC Outlet | 2 |
| 204470801 | HORN | ||
| 2 | 209943260 | Phillips Tapping Screw M4.2 X 32 | 2 |
| XXXX | Not Available As Spare Part - Stereo | ||
| 4 | 209641960 | PHILLIPS TAPPING SCREW M4.2 X 19 | 4 |
