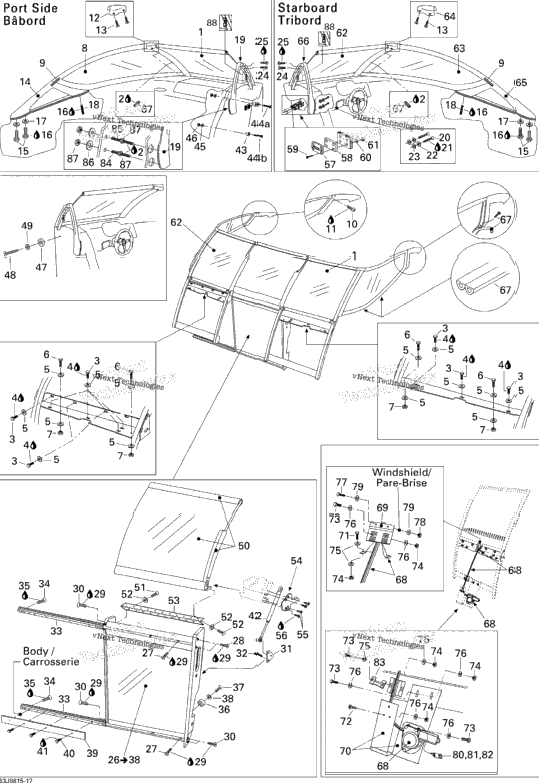

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 204072991 | WINDSHIELD GATE ASS'Y, PORT SIDE | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 12 | 207161660 | Hex. Screw M6 X 16 | 12 |
| 16 | 234062600 | Flat Washer M6, Stainless | 16 |
| 4 | 207162560 | Hex. Screw M6 X 25 | 4 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 204072506 | WINDSHIELD WING ASS'Y, PORT SIDE | ||
| 4 | 204130183 | STAINLESS STEEL DOWEL PIN 1/4 | 4 |
| 6 | 208651060 | SCREW M5 X 10 | 6 |
| 204072925 | Corner Cap, Port Side | ||
| 209641360 | TAPPING PHILLIPS SCREW M4.2 X 13 | ||
| 204072833 | Windshield Wing Support, Port Side | ||
| 4 | 207182560 | Hex. Screw M8 X 25 | 4 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| XXXX | Not Available As Spare Part - Threaded Stud M8 X 25 | ||
| 204072534 | Stanchion, Port Side | ||
| 4 | 207181860 | Hex. Screw M8 X 18 | 4 |
| 4 | 234181601 | Lock Washer 8 mm, Stainless | 4 |
| 4 | 208451260 | PHILLIPS SCREW M5 X 12 | 4 |
| 204440021 | Sliding Door Ass'y Includes 26 to 38 | ||
| 14 | 208640860 | PHILLIPS SCREW M4 X 8 | 14 |
| 2 | 208563560 | Phillips Screw M6 X 35 | 2 |
| 6 | 208562560 | Phillips Screw M6 X 25 | 6 |
| 2 | 204073065 | SHOCK BRACKET | 2 |
| 204070612 | Drawer Slides, Long | ||
| 208641260 | PHILLIPS SCREW M4 X 12 | ||
| 204070760 | BUMPER PAD | ||
| 2 | 204100147 | PHILLIPS SCREW 6 X 1/2 | 2 |
| 2 | 234032600 | Flat Washer M3, Stainless | 2 |
| 204072896 | Walk-Thru Door Support | ||
| 4 | 207163060 | Hex. Screw M6 X 30 | 4 |
| 2 | 204072899 | GAS SHOCK | 2 |
| 2 | 204130166 | LOCATOR STUD | 2 |
| 1 | 205056060 | Socket Screw M5 X 60 | 1 |
| 1 | 205053560 | SOCKET SCREW M5 X 35 | 1 |
| 2 | 234051600 | Flat Washer M5, Stainless | 2 |
| 2 | 232551600 | Hex. Elastic Nut M5 | 2 |
| 1 | 204100147 | PHILLIPS SCREW 6 X 1/2 | 1 |
| 1 | 234032600 | Flat Washer M3, Stainless | 1 |
| 204072727 | CENTER DOOR WINDOW | ||
| 24 | 208640860 | PHILLIPS SCREW M4 X 8 | 24 |
| 24 | 234041600 | Flat Washer 4 mm, Stainless | 24 |
| 1 | 204073092 | HINGE | 1 |
| 204072900 | Shock Support, Port Side | ||
| 204072901 | Shock Support, Starboard | ||
| 2 | 204100204 | DOOR LATCH | 2 |
| 204072976 | Latch Spacer 3/8" | ||
| 2 | 204072977 | LATCH SPACER 1/8 | 2 |
| 4 | 204100049 | PHILLIPS TAPPING SCREW #8 X 1 Portside | 4 |
| 4 | 208443060 | PHILLIPS SCREW M4 X 30 Starboard | 4 |
| 4 | 234041600 | Flat Washer 4 mm, Stainless Starboard | 4 |
| 4 | 232541600 | Elastic Stop Nut M4 Starboard | 4 |
| 204072995 | WINDSHIELD GATE ASS'Y, STARBOARD | ||
| 204072517 | Windshield Wing Ass'y, Starboard | ||
| 204072926 | Corner Cap, Starboard | ||
| 204072834 | Windshield Wing Support, Starboard | ||
| 204072741 | Stanchion, Starboard | ||
| 1 | 204072544 | WINDSHIELD INSTALLATION HARDWARE KIT | 1 |
| 204072539 | WINDSHIELD ACTUATOR | ||
| 2 | 204073015 | WINDSHIELD ACTUATOR BRACKET | 2 |
| 2 | 204073014 | ACTUATOR MOTOR SUPPORT | 2 |
| 4 | 207164560 | Hex. Screw M6 X 45 | 4 |
| 18 | 207161660 | Hex. Screw M6 X 16 | 18 |
| 22 | 232561600 | Hex. Elastic Stop Nut M6 | 22 |
| 16 | 234061600 | Stainless Flat Washer M6 | 16 |
| 28 | 234062600 | Flat Washer M6, Stainless | 28 |
| 4 | 207152060 | Hex. Screw M5 X 20 | 4 |
| 4 | 232551600 | Hex. Elastic Nut M5 | 4 |
| 8 | 234051600 | Flat Washer M5, Stainless | 8 |
| 2 | 278000217 | Female Housing, 2 Circuits | 2 |
| 4 | 278000222 | Male Terminal | 4 |
| 4 | 278000218 | Wire Seal | 4 |
| 2 | 204440029 | WINDSHIELD STOPPER | 2 |
| 1 | 204100217 | THREADED STUD M8 X 60 | 1 |
| 1 | 204100218 | THREADED STUD M8 X 80 | 1 |
| 2 | 234082600 | Flat Washer 8 mm, Stainless | 2 |
| 4 | 232581600 | Hex. Elastic Nut M8 | 4 |
| 204072875 | Door Latch |
