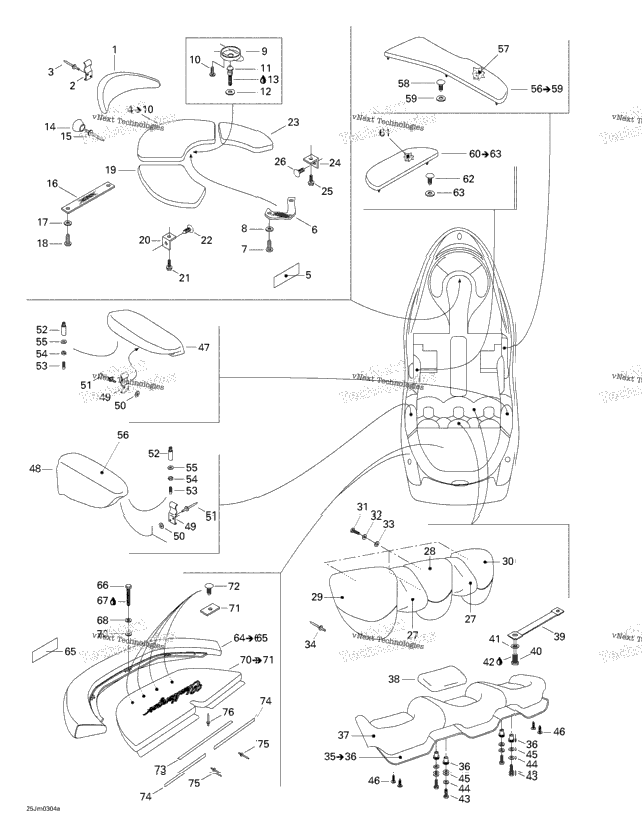

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204612175 | Front Backrest Ass'y | ||
| 269000388 | SEAT SUPPORT | ||
| 6 | 293150043 | Pop Rivet 3/16" | 6 |
| 204612411 | Center Front Seat Ass'y Includes 4 - 10. | ||
| 204610184 | Staple Cover, Meter | ||
| 293000060 | Passenger Strap | ||
| 2 | 241140060 | Screw K40 X 10 | 2 |
| 2 | 234042600 | Flat Washer 4 mm, Stainless | 2 |
| 204610178 | Front Seat Latch | ||
| 3 | 205441660 | Socket Head Screw M4 X 16 | 3 |
| 204610207 | Seat Stud | ||
| 1 | 234062600 | Flat Washer M6, Stainless | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 293830043 | Rubber Stopper | ||
| 2 | 293150013 | Pop Rivet 3/16" | 2 |
| 204610963 | Strap | ||
| 204612413 | LH Front Seat Ass'y | ||
| 3 | 204610100 | SEAT BRACKET | 3 |
| 3 | 241140060 | Screw K40 X 10 | 3 |
| 3 | 293730006 | Black, Dart | 3 |
| 204612415 | RH Front Seat Ass'y | ||
| 204612204 | Bump Cover, Ultraviolet Pearl | ||
| 204612205 | Backrest Cover, Silver Metallic | ||
| 204612206 | RH Backrest Cover, Silver Metallic | ||
| 204612207 | LH Backrest Cover, Silver Metallic | ||
| 207364060 | Hex. Screw M6 X 40, Scotch Grip | ||
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 293150065 | RIVET | ||
| 204610303 | Rear Seat Base Includes 35 - 36. | ||
| 204100005 | Anchor Washer | ||
| 204612209 | Rear Seat Cover, Off White | ||
| 204612210 | Rear Seat Cushion, Silver Metallic | ||
| 204612212 | Rear Seat Strap, Off White | ||
| 4 | 207161660 | Hex. Screw M6 X 16 | 4 |
| 4 | 204100006 | Washer | 4 |
| 4 | 293730021 | Dart | 4 |
| 204612213 | RH Armrest Ass'y | ||
| 204612215 | LH Armrest Ass'y | ||
| 8 | 234061600 | Stainless Flat Washer M6 | 8 |
| 8 | 293150043 | Pop Rivet 3/16" | 8 |
| 204130015 | Threaded Rod M5, Scotch Grip | ||
| 206254069 | Socket Set Screw M5 X 40, Scotch Grip | ||
| 2 | 232551600 | Hex. Elastic Nut M5 | 2 |
| 2 | 234052600 | Flat Washer 5 mm, Stainless | 2 |
| 204612217 | RH Elbow Padding Ass'y Includes 56 - 59. | ||
| 204610121 | Neoprene Foam | ||
| 3 | 234062600 | Flat Washer M6, Stainless | 3 |
| 204612219 | LH Elbow Padding Ass'y Includes 60 - 63. | ||
| 204610123 | Neoprene Foam | ||
| 2 | 293730006 | Black, Dart | 2 |
| 2 | 234062600 | Flat Washer M6, Stainless | 2 |
| 204612233 | Rear Spoiler Ass'y Includes 64 - 65. | ||
| 5 | 207362560 | Hex. Screw M6 X 25, Scotch Grip | 5 |
| 5 | 234062600 | Flat Washer M6, Stainless | 5 |
| 5 | 234002600 | Flat Washer 10 mm, Stainless | 5 |
| 204612235 | Platform Ass'y Includes 70 - 71. | ||
| 204610194 | Strap | ||
| 4 | 293730006 | Black, Dart | 4 |
| 204611298 | Velcro 25 Mm X 940 Mm | ||
| 204611299 | Velcro 25 Mm X 635 Mm | ||
| 10 | 204130050 | POP RIVET 3/16 | 10 |
| 7 | 293150011 | Pop Rivet 3/16" | 7 |
