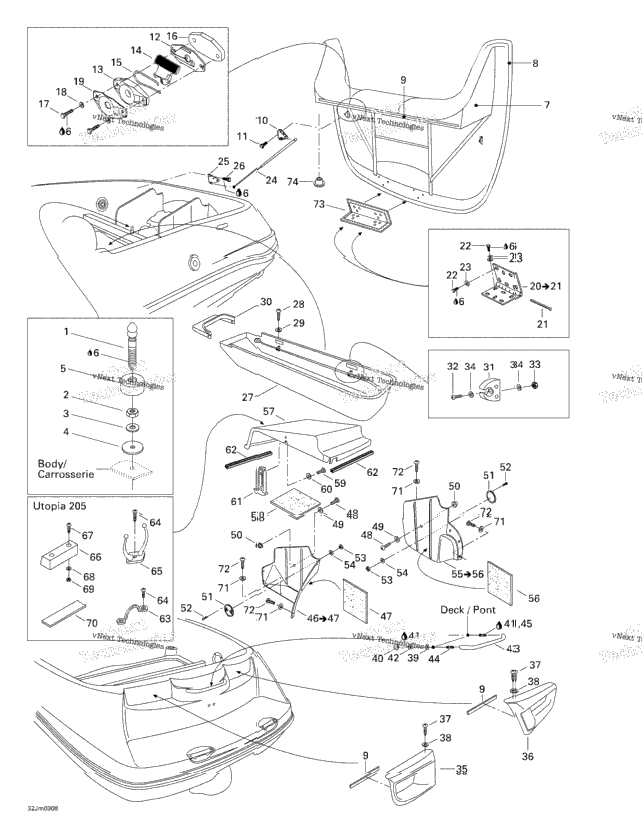

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204130052 | DOUBLE LATCH STUD | ||
| 1 | 232100600 | Hex. Jam Nut M10 | 1 |
| 1 | 234002600 | Flat Washer 10 mm, Stainless | 1 |
| 1 | 291000628 | RUBBER WASHER | 1 |
| 293830025 | Rubber Pad | ||
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 204071478 | Engine Cover | ||
| 1 | 219704368 | Seal Tray 1000Mm Long | 1 |
| 1 | 219704365 | Was 293200017 Neoprene Seal | 1 |
| 2 | 204071700 | Shock Bracket | 2 |
| 4 | 207151660 | HEX. SCREW M5 X 16 | 4 |
| 1 | 269700076 | Latch Cover | 1 |
| 1 | 269000015 | Latch Base | 1 |
| 1 | 269700077 | Latch Lever | 1 |
| 1 | 269700017 | Latch Spring | 1 |
| 1 | 269700015 | SHIM | 1 |
| 2 | 207065060 | Hex. Screw M6 X 50 | 2 |
| 2 | 234061600 | Stainless Flat Washer M6 | 2 |
| 204070952 | LATCH PROTECTOR | ||
| 204070127 | HINGE ASS'Y Includes 20 - 21. | ||
| 204070205 | Cotter Pin M2.5 X 12 | ||
| 24 | 207162560 | Hex. Screw M6 X 25 | 24 |
| 24 | 234061600 | Stainless Flat Washer M6 | 24 |
| 204071087 | Air Shock, 90 Lb | ||
| 291000615 | Shock Support | ||
| 207152560 | HEX. SCREW M5 X 25 | ||
| 204071177 | Rear Seat Storage | ||
| 7 | 204100049 | PHILLIPS TAPPING SCREW #8 X 1 | 7 |
| 204100057 | FINITION WASHER | ||
| 204071329 | Cap End | ||
| 291000642 | Pole Support | ||
| 2 | 208642560 | PHILLIPS SCREW M4 X 25 | 2 |
| 2 | 232541600 | Elastic Stop Nut M4 | 2 |
| 4 | 234040600 | Flat Washer 4 mm | 4 |
| 204071500 | Vent Cover Ass’y, Port Side | ||
| 204071502 | Vent Cover Ass’y, Starboard | ||
| 4 | 204100049 | PHILLIPS TAPPING SCREW #8 X 1 | 4 |
| 2 | 234002600 | Flat Washer 10 mm, Stainless | 2 |
| 2 | 211100063 | HEX. NUT 3/8-16 | 2 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 2 | 234101601 | Helicoidal Lock Washer M10 | 2 |
| 1 | 204071122 | GRAB HANDLE | 1 |
| 204100031 | Threaded Stud | ||
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
| 204071825 | Bulkhead Panel, Port Side Includes 46 - 47. | ||
| 204071400 | Sound Barrier, Port Side | ||
| 2 | 208651660 | SCREW M5 X 16 | 2 |
| 2 | 234052600 | Flat Washer 5 mm, Stainless | 2 |
| 204071384 | Strap Retainer | ||
| 2 | 204070622 | BOTTOM PLATE | 2 |
| 208442060 | PHILLIPS SCREW M4 X 20 | ||
| 12 | 232541600 | Elastic Stop Nut M4 | 12 |
| 12 | 234042600 | Flat Washer 4 mm, Stainless | 12 |
| 204071828 | Bulkhead Panel, Starboard Includes 55 - 56. | ||
| 204071731 | Bulkhead Cap UTOPIA 185. | ||
| 204071732 | Bulkhead Cap UTOPIA 205. | ||
| 4 | 208651660 | SCREW M5 X 16 | 4 |
| 4 | 234052600 | Flat Washer 5 mm, Stainless | 4 |
| 204071330 | Rubber Latch | ||
| 204070234 | Strap Tie UTOPIA 205. | ||
| 10 | 211000180 | PHILLIPS SCREW #8 X 1/2, PLASTITE UTOPIA 205. | 10 |
| 204070342 | POLE CLIP UTOPIA 205. | ||
| 204611805 | LATCH UTOPIA 205. | ||
| 8 | 208653560 | Phillips Screw M5 X 35 UTOPIA 205. | 8 |
| 8 | 234051500 | Flat Washer 5 mm UTOPIA 205. | 8 |
| 8 | 232551600 | Hex. Elastic Nut M5 UTOPIA 205. | 8 |
| 1 | 219704368 | Seal Tray 1000Mm Long UTOPIA 205. | 1 |
| 16 | 209943260 | Phillips Tapping Screw M4.2 X 32 | 16 |
| 204612605 | Hinge Cover | ||
| 6 | 291000279 | Black Plug | 6 |
