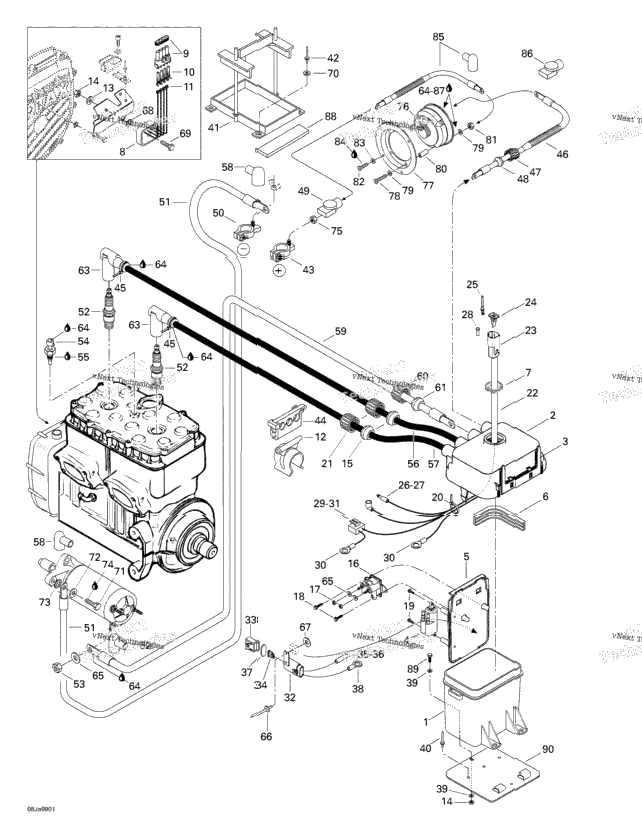

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278001089 | High Voltage Box Base | ||
| 278001265 | Cover | ||
| 278000732 | Ground Plate | ||
| 278000586 | IGNITION COIL | ||
| 278000826 | Mounting Plate | ||
| 278000440 | GASKET | ||
| 293200030 | Gasket | ||
| 278001239 | RECTIFIER ASSY Includes 8 - 11. | ||
| 2 | 278000395 | Male Housing, 4 Circuits | 2 |
| 8 | 409007300 | Female Terminal | 8 |
| 8 | 278000218 | Wire Seal | 8 |
| 2 | 278000559 | COLLAR SUPPORT | 2 |
| 2 | 234061600 | Stainless Flat Washer M6 | 2 |
| 2 | 232561600 | Hex. Elastic Stop Nut M6 | 2 |
| 278000682 | Grommet | ||
| 2 | 278001376 | Starter Relay | 2 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 4 | 210261040 | Hex. Flange Screw M6 X 10 | 4 |
| 250000005 | Hex. Tapping Screw | ||
| 4 | 293750001 | Tie Wrap 94 mm | 4 |
| 278000100 | Electric Wire Cap | ||
| 204470160 | Electric Box Harness Includes 22 - 31. | ||
| 2 | 270000137 | Female Connector, 6 Circuits | 2 |
| 2 | 278000735 | Female Lock, 6 Circuits | 2 |
| 8 | 278000631 | Male Terminal | 8 |
| 2 | 278000230 | Male Terminal | 2 |
| 2 | 278001008 | Insulated Sheath | 2 |
| 4 | 293000052 | Sealing Cap | 4 |
| 4 | 278001114 | Female Terminal | 4 |
| 4 | 278000992 | Open Barrel | 4 |
| 2 | 278001113 | Male Connector, 2 Circuits | 2 |
| 204470161 | Harness Fuse 15 Amp Includes 32 - 38. | ||
| 2 | 278000345 | Fuse Cap | 2 |
| 2 | 278000343 | Fuse, 15 Amperes | 2 |
| 2 | 278001009 | Female Terminal | 2 |
| 2 | 278001007 | Insulated Sheath | 2 |
| 2 | 278000805 | Cushion | 2 |
| 278000300 | Ring Terminal | ||
| 234062060 | Flat Washer 6 mm | ||
| 6 | 293150011 | Pop Rivet 3/16" | 6 |
| 204470243 | Battery Support | ||
| 4 | 293150011 | Pop Rivet 3/16" | 4 |
| 204470347 | Battery Pole (Positive) | ||
| 278000245 | 3 WIRE SUPPORT | ||
| 2 | 293750002 | Tie Wrap 142 mm | 2 |
| 204470150 | Battery Cable (Red)(Port side) Includes 46 - 49. | ||
| 1 | 204470286 | POSITIVE CABLE ASS'Y | 1 |
| 278000098 | GROMMET | ||
| 2 | 204470269 | RED BOOT | 2 |
| 1 | 204470348 | NEGATIVE BATTERY POLE | 1 |
| 1 | 204470199 | RH GROUND CABLE | 1 |
| 204470200 | Battery Ground Cable L.H | ||
| 4 | 278000609 | Spark Plug NGK BR8ES | 4 |
| 2 | 278000965 | Temperature Sensor | 2 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 1 | 278001268 | Spark Plug Wire | 1 |
| 278000020 | PROTECTION CAP | ||
| 204470149 | Starter Cable (Red) Includes 59 - 62. | ||
| 204470091 | Spark Plug Cap | ||
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 6 | 234061600 | Stainless Flat Washer M6 | 6 |
| 2 | 293150005 | Pop Rivet 3/16" | 2 |
| 2 | 213200016 | Flat Washer, Emhart | 2 |
| 2 | 234461608 | External Serrated Lock Washer 6 mm | 2 |
| 2 | 207163560 | Hex. Screw M6 X 35 | 2 |
| 8 | 234052600 | Flat Washer 5 mm, Stainless | 8 |
| 207182060 | HEX. SCREW M8 X 20 | ||
| 2 | 234080600 | Flat Washer M8, Stainless | 2 |
| 234381608 | TOOTHED LOCK WASHER | ||
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 1 | 211100063 | HEX. NUT 3/8-16 | 1 |
| 204470329 | Battery Switch | ||
| 204470259 | SWITCH SUPPORT | ||
| 4 | 208652560 | Phillips Screw M5 X 25 | 4 |
| 8 | 234051600 | Flat Washer M5, Stainless | 8 |
| 4 | 204470330 | NYLON SPACER | 4 |
| 4 | 232551600 | Hex. Elastic Nut M5 | 4 |
| 4 | 208642560 | PHILLIPS SCREW M4 X 25 | 4 |
| 4 | 234041600 | Flat Washer 4 mm, Stainless | 4 |
| 219704457 | Loctite Adhesive 425 20ML | ||
| 204470250 | POSITIVE SWITCH CABLE | ||
| 1 | 204470269 | RED BOOT | 1 |
| 1 | 293800015 | Lubrifiant - Deoxit, 250 ml | 1 |
| 204060195 | Battery Spacer | ||
| 2 | 208662060 | PHILLIPS SCREW M6 X 20 | 2 |
| 204470176 | Box Support |
