Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

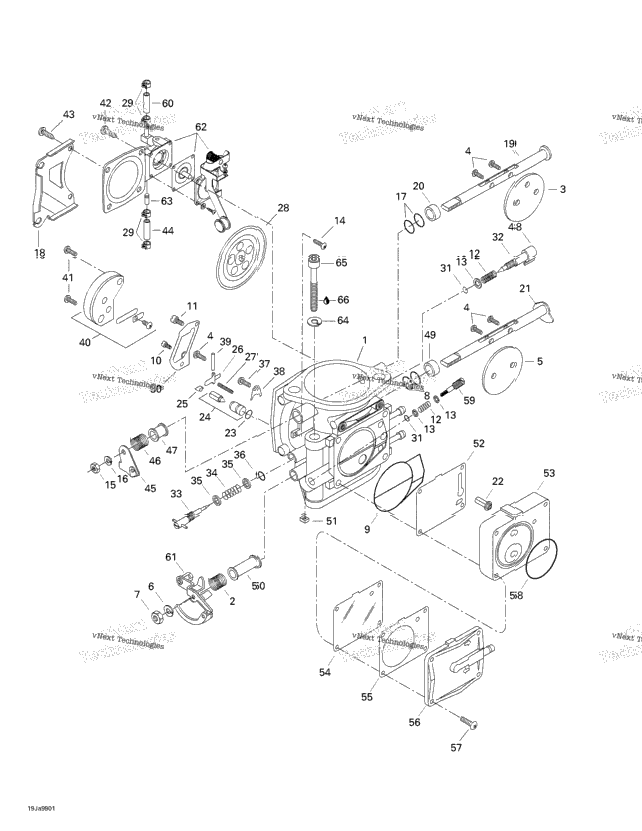

| 204250058 | Carburetor BN40I-38-52 Includes 1 - 63. | ||
| 270500191 | Spring | ||
| XXXX | Not Available As Spare Part - Choke Valve | ||
| 270500156 | SCREW | ||
| XXXX | Not Available As Spare Part - Throttle Valve | ||
| 1 | 270500011 | SPRING WASHER | 1 |
| 270500376 | Nut | ||
| 270500222 | Sealing Ring | ||
| 270500104 | O-Ring | ||
| 270500430 | Pilot Jet 70 | ||
| 270500392 | Main Jet 167.5 | ||
| 2 | 270500091 | SPRING | 2 |
| 270500136 | Washer | ||
| 270500228 | Screw | ||
| 1 | 270500229 | NUT | 1 |
| 270500230 | Spring Washer | ||
| 2 | 270500234 | SEALING RING | 2 |
| 270500348 | RECHARGE JET | ||
| XXXX | Not Available As Spare Part - Choke Shaft Ass'y | ||
| 1 | 270500239 | RING | 1 |
| XXXX | Not Available As Spare Part - Throttle Shaft Ass'y | ||
| 1 | 270500115 | FUEL FILTER | 1 |
| 1 | 270500127 | O-RING | 1 |
| 1 | 270500241 | Needle Valve 1.5 | 1 |
| 1 | 270500129 | CLIP | 1 |
| 1 | 270500128 | NEEDLE VALVE LEVER | 1 |
| 270500313 | Spring | ||
| 1 | 270500132 | DIAPHRAGM ASS'Y | 1 |
| 4 | 293650071 | OETIKER CLAMP | 4 |
| 1 | 270500131 | GASKET | 1 |
| 2 | 270500144 | O-RING | 2 |
| 270500113 | Adjuster Screw | ||
| 1 | 270500020 | IDLE ADJUSTING SCREW | 1 |
| 270500019 | SPRING | ||
| 270500018 | Washer | ||
| 270500119 | O-RING | ||
| 270500155 | Screw And Spring Washer | ||
| 1 | 270500125 | PLATE | 1 |
| 270500038 | Pin | ||
| 1 | 270500124 | VALVE ASS'Y | 1 |
| 270500123 | SCREW | ||
| 270500322 | Screw | ||
| 2 | 270500238 | SCREW | 2 |
| 270500308 | Hose 90 mm | ||
| 270500316 | Choke Lever | ||
| 1 | 270500248 | SPRING | 1 |
| 270500110 | Ring | ||
| 270500154 | Cap | ||
| 1 | 270500309 | RING | 1 |
| 1 | 270500192 | RING | 1 |
| 270500249 | Nut | ||
| 1 | 270500103 | GASKET | 1 |
| 270500105 | Body Pump Ass'y | ||
| 1 | 270500106 | DIAPHRAGM | 1 |
| 270500146 | Gasket | ||
| 270500108 | PUMP COVER | ||
| 270500143 | SCREW | ||
| 270500102 | O-RING | ||
| 270500288 | Adjuster Screw | ||
| 270500342 | Hose | ||
| 270500317 | Throttle Lever Ass'y | ||
| 270500424 | Diaphragm Cover | ||
| 2 | 234081600 | Stainless, Flat Washer 8 mm | 2 |
| 205587560 | Socket Head Screw M8 x 75 (Scotch Grip) | ||
| 293550010 | Synthetic Grease, 400 G |
