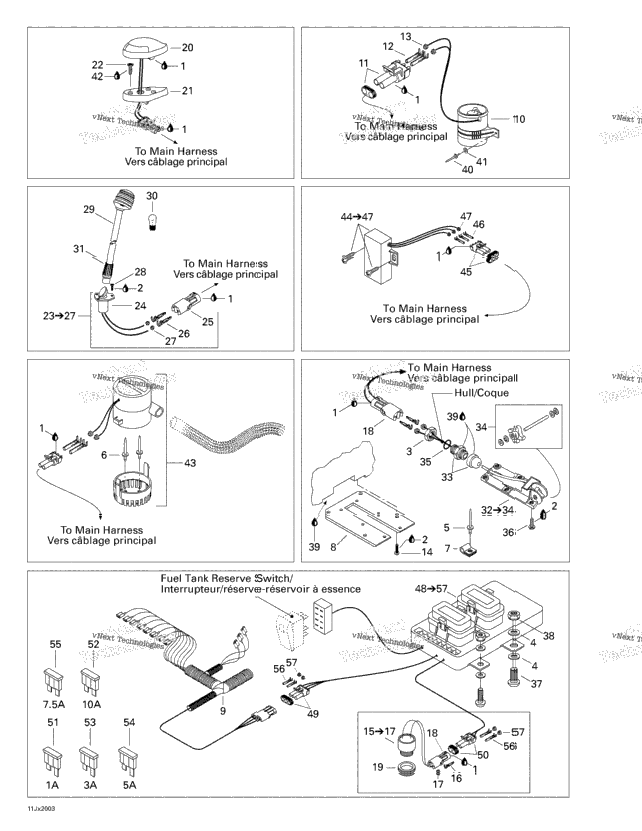

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 293710032 | LOCKING NUT | 1 |
| 8 | 234062600 | Flat Washer M6, Stainless | 8 |
| 1 | 293150037 | Avdel Rivet 3/16" | 1 |
| 293150029 | RIVET_POP 5/32 | ||
| 204100026 | Cable Clamp 3/16” | ||
| 204470538 | Sensor Support | ||
| 204470468 | Accessories Harness | ||
| 1 | 204470108 | Fan Ass'y Includes 10 - 13. | 1 |
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 2 | 278000223 | Female Terminal | 2 |
| 2 | 278000218 | Wire Seal | 2 |
| 4 | 208563560 | Phillips Screw M6 X 35 | 4 |
| 278000887 | BUZZER ASSEMBY Includes 15 - 17. | ||
| 2 | 278000222 | Male Terminal | 2 |
| 2 | 278000217 | Female Housing, 2 Circuits | 2 |
| 278000707 | Buzzer Nut | ||
| 204470311 | Front Lamp | ||
| 1 | 204470072 | FRONT LAMP SUPPORT | 1 |
| 3 | 208641660 | Phillips Screw M4 X 16 | 3 |
| 278000674 | Rear Light Base Ass'y Includes 23 - 27. | ||
| 204471177 | Rear Lamp Base Ass'y | ||
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 3 | 208443070 | SCREW M4 X 30 | 3 |
| 204470206 | Rear Lamp Pole Includes 29 - 31. | ||
| 204470053 | Bulb | ||
| 1 | 204470350 | COLLAR | 1 |
| 278000970 | SPEED SENSOR ASSY Includes 32 - 34. | ||
| 1 | 293710031 | ELECTRIC CONNECTION | 1 |
| 295500108 | Paddle Wheel Kit | ||
| 1 | 278000416 | SEAL WASHER | 1 |
| 208551060 | PHILLIPS SCREW M5 X 10 | ||
| 208662560 | PHILLIPS SCREW M6 X 25 | ||
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 2 | 293150011 | Pop Rivet 3/16" | 2 |
| 2 | 234052600 | Flat Washer 5 mm, Stainless | 2 |
| 219704457 | ADHESIVE LOCTITE 425 20ML | ||
| 1 | 204470220 | Bilge Pump | 1 |
| 204470476 | Water sensor Includes 44 - 47. | ||
| 1 | 278000273 | Male Housing, 3 Circuits | 1 |
| 3 | 409007300 | Female Terminal | 3 |
| 3 | 710000048 | Wire Seal | 3 |
| 204470470 | Fuse Block Includes 48 - 57. | ||
| 409012800 | FUSE, 1 AMPERE | ||
| 2 | 278001197 | Fuse, 10 Amperes | 2 |
| 278001196 | FUSE, 3 AMPERES | ||
| 2 | 278000344 | Fuse, 5 Amperes | 2 |
| 2 | 278000704 | FUSE, 7.5 AMPERES | 2 |
| 4 | 278000223 | Female Terminal | 4 |
| 4 | 278000218 | Wire Seal | 4 |
