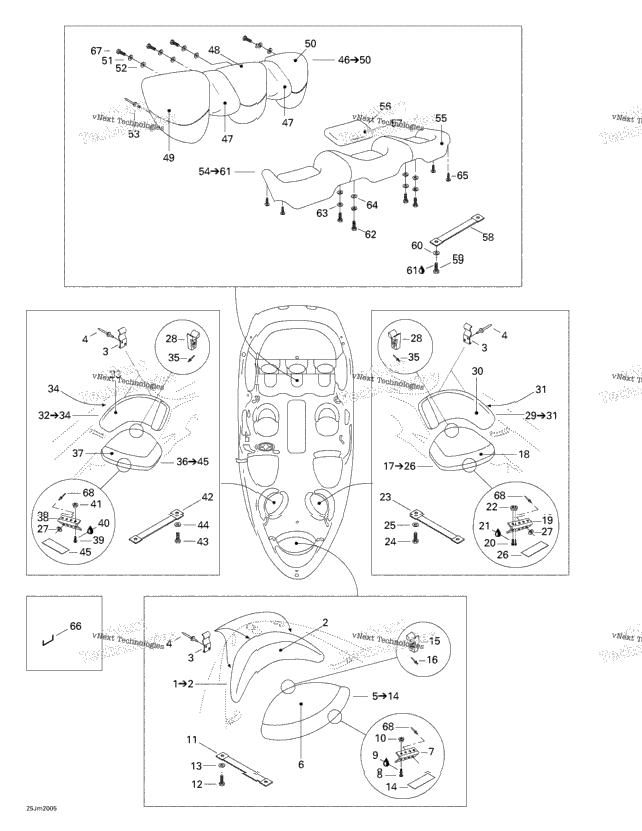

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 204610687 | Front Backrest Ass'y Includes 1 - 2. | ||
| 204610688 | Front Backrest Cover | ||
| 269000388 | SEAT SUPPORT | ||
| 14 | 293150043 | Pop Rivet 3/16" | 14 |
| 204610689 | Front Seat Ass'y Includes 5 - 14. | ||
| 204610989 | Front Seat ass'y | ||
| 204610940 | Seat Hinge | ||
| 204100045 | SOCKET HEAD SCREW 10-32 X .75 | ||
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 4 | 204100044 | TEE-NUT #10-32 | 4 |
| 204610941 | Front Seat Strap | ||
| 1 | 241642060 | Flange Screw K40 X 20 | 1 |
| 1 | 234042600 | Flat Washer 4 mm, Stainless | 1 |
| 204610972 | Hinge Cover | ||
| 204610961 | Seat Latch | ||
| 2 | 293150036 | RIVET_POP 1/8 X ,750 | 2 |
| 204610692 | LH Front Seat Ass'y Includes 17 - 26. | ||
| 204610964 | LH Front Seat Cover | ||
| 8 | 234051600 | Flat Washer M5, Stainless | 8 |
| 204610947 | LH Backrest Ass'y Includes 29 - 31. | ||
| 204610954 | Backrest Cover | ||
| 293200032 | TRAY SEAL, METER | ||
| 204610948 | RH Backrest Ass'y Includes 32 - 34. | ||
| 204610957 | Backrest Cover | ||
| 4 | 293150036 | RIVET_POP 1/8 X ,750 | 4 |
| 204610694 | RH Front Seat Ass'y Includes 36 - 45. | ||
| 204610971 | RH Front Seat Cover | ||
| 204610695 | Rear Backrest Ass'y Includes 46 - 50. | ||
| 204610696 | Rear Bump Cover | ||
| 204610697 | Backrest Cover (Metalic Quartz) | ||
| 204610698 | RH Backrest Cover (Metalic Quartz) | ||
| 204610699 | LH Backrest Cover (Metalic Quartz) | ||
| 4 | 234062600 | Flat Washer M6, Stainless | 4 |
| 4 | 234082600 | Flat Washer 8 mm, Stainless | 4 |
| 293150065 | RIVET | ||
| 204610700 | Rear Seat Ass'y Includes 54 - 61. | ||
| 204610701 | Rear Seat Cover | ||
| 204610719 | Rear Seat Cushing Ass'y Includes 56 - 57. | ||
| XXXX | Not Available As Spare Part - Rear Seat Cushion Cover | ||
| 204610703 | Rear Seat Strap | ||
| 4 | 207161660 | Hex. Screw M6 X 16 | 4 |
| 4 | 207364560 | Hex. Screw M6 x 45, Scotch Grip | 4 |
| 4 | 204100006 | Washer | 4 |
| 4 | 293730021 | Dart | 4 |
| 293730005 | Staple | ||
| 207364060 | Hex. Screw M6 X 40, Scotch Grip | ||
| 12 | 293150043 | Pop Rivet 3/16" | 12 |
