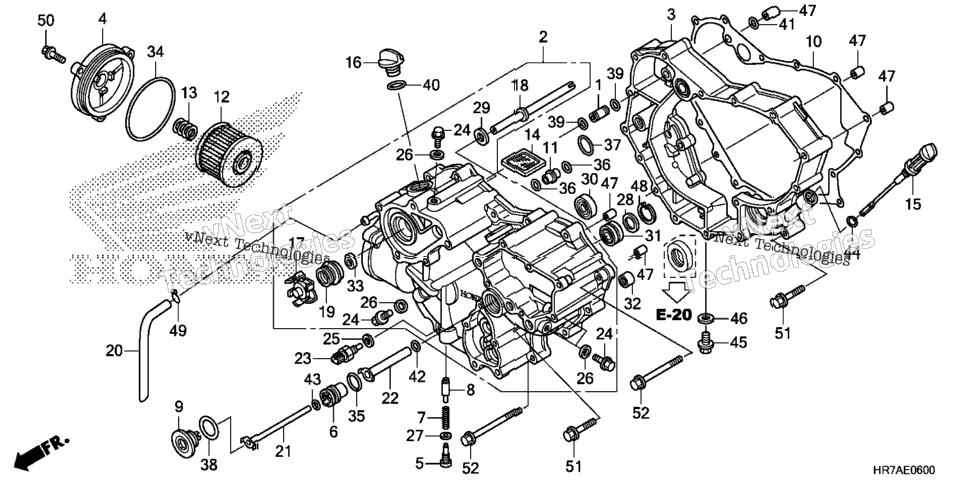

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 11145-HP7-A01 | PIN, OIL GUIDE (8MM) | 1 |
| 1 | 11300-HR3-WE0 | COVER ASSY., FR. CRANKCASE | 1 |
| 1 | 11321-HP7-A00 | SPACER, FR. COVER | 1 |
| 1 | 11333-HP7-A00 | COVER, OIL FILTER | 1 |
| 1 | 11334-HN2-000 | BOLT, VALVE SETTING | 1 |
| 1 | 11335-HN8-000 | COLLAR, OIL FEED PIPE SETTING | 1 |
| 1 | 11336-HN2-000 | SPRING, ORIFICE VALVE (PINK) | 1 |
| 1 | 11337-HN2-000 | VALVE, RELIEF | 1 |
| 1 | 11337-HN8-000 | BOLT, OIL FEED PIPE SETTING | 1 |
| 1 | 11392-HP7-A00 | GASKET, FR. CRANKCASE SPACER | 1 |
| 1 | 15235-HN2-000 | JOINT, SPECIAL (Honda Code 6441620) | 1 |
| 1 | 15412-HP7-A01 | ELEMENT, OIL FILTER | 1 |
| 1 | 15414-KF0-000 | SPRING, OIL FILTER ELEMENT SETTING | 1 |
| 1 | 15421-HR3-A60 | SCREEN, OIL FILTER | 1 |
| 1 | 15650-HP7-A00 | DIPSTICK, OIL | 1 |
| 1 | 15655-HN5-670 | CAP, OIL FILLER | 1 |
| 1 | 19215-HR6-B00 | IMPELLER, WATER PUMP | 1 |
| 1 | 19216-HP7-A00 | SHAFT, WATER PUMP | 1 |
| 1 | 19217-MAL-300 | SEAL, MECHANICAL | 1 |
| 1 | 19507-HP7-A00 | HOSE, DRAIN | 1 |
| 1 | 22710-HP7-A00 | PIPE A, FEED | 1 |
| 1 | 22715-HP7-A00 | PIPE B, FEED | 1 |
| 1 | 37750-KPH-701 | SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445) | 1 |
| 4 | 90024-612-000 | BOLT, SEALING (8MM) | 4 |
| 1 | 90443-MB0-000 | WASHER, SEALING (10.2MM) | 1 |
| 4 | 90471-580-000 | WASHER (8MM) | 4 |
| 1 | 90545-MC0-000 | WASHER, OIL BOLT (10.2X15X1.4) | 1 |
| 1 | 90554-KA5-680 | WASHER, THRUST (19MM) | 1 |
| 1 | 90599-767-C10 | WASHER, THRUST (12X23X2) | 1 |
| 1 | 91009-HF1-671 | BEARING, RADIAL BALL (15X32X9) | 1 |
| 1 | 91022-HP7-A01 | BEARING, NEEDLE (16X28X13) | 1 |
| 1 | 91053-719-005 | BEARING, NEEDLE (12X16X10) (NTN) | 1 |
| 1 | 91101-PZ9-000 | BEARING, NEEDLE (12X16X10) | 1 |
| 1 | 91201-MV4-003 | OIL SEAL (12X26X7) (ARAI) | 1 |
| 1 | 91301-107-000 | O-RING (75X2.5) | 1 |
| 1 | 91301-P7X-003 | O-RING (19.20X1.90) (NOK) | 1 |
| 2 | 91303-KF0-003 | O-RING (14.8X2.4) (ARAI) | 2 |
| 1 | 91304-HP5-601 | O-RING (20.6X1.9) | 1 |
| 1 | 91305-KF0-003 | O-RING (27X2) (ARAI) | 1 |
| 2 | 91305-MG7-003 | O-RING (5X1.7) (ARAI) | 2 |
| 1 | 91307-KF0-003 | O-RING (18X3) (ARAI) | 1 |
| 1 | 91313-MN5-004 | O-RING (7.8X1.9) (NOK) | 1 |
| 1 | 91314-PC9-003 | O-RING (8.5X1.9) (ARAI) | 1 |
| 1 | 91314-PC9-004 | O-RING (8.5X1.9) (NOK) | 1 |
| 1 | 91315-PC9-004 | O-RING (6X1.5) (N0K) | 1 |
| 1 | 91316-MJ8-003 | O-RING (8.4X2.4) | 1 |
| 1 | 92800-12000 | BOLT, DRAIN PLUG (12MM) | 1 |
| 1 | 94109-12000 | WASHER, DRAIN PLUG (12MM) | 1 |
| 5 | 94301-08140 | PIN, DOWEL (8X14) (Honda Code 0069310) | 5 |
| 1 | 94520-28000 | CIRCLIP (INNER) (28MM) | 1 |
| 1 | 95002-02130 | CLIP, TUBE (B12.5) | 1 |
| 3 | 95701-06022-00 | BOLT, FLANGE (6X22) | 3 |
| 2 | 95701-06040-00 | BOLT, FLANGE (6X40) BOLT, FLANGE (6X45) | 2 |
| 13 | 95701-06090-00 | BOLT, FLANGE (6X90) (Honda Code 2533842) | 13 |
