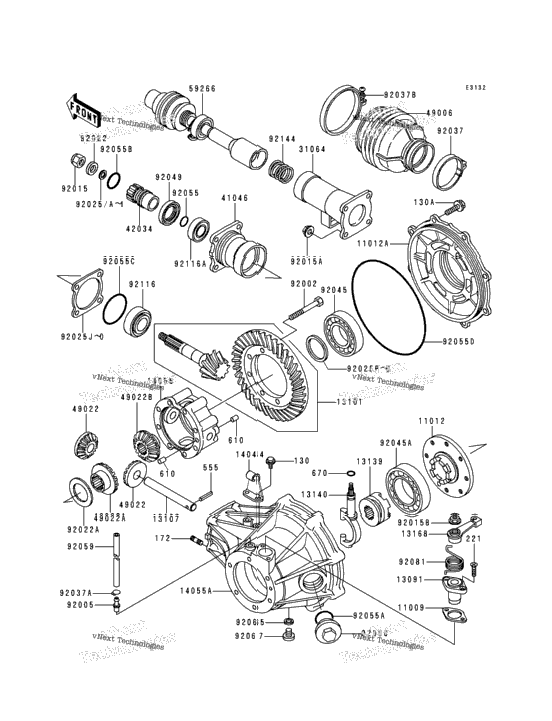

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 11009-1521 | GASKET | ||
| 1 | 11012-1444 | CAP,BEVEL GEAR | 1 |
| 1 | 11012-1614 | CAP,DIFFERENTIAL CASE | 1 |
| 1 | 13091-1375 | HOLDER | 1 |
| 1 | 13101-5054 | GEAR-ASSY,DIFFERENTIA | 1 |
| 1 | 13107-1149 | SHAFT,BEVEL GEAR | 1 |
| 1 | 13139-1055 | SHIFTER | 1 |
| 1 | 13140-1136 | FORK-SHIFT,DIFF LOCK | 1 |
| 1 | 13168-1268 | LEVER | 1 |
| 1 | 14044-1058 | HOLDER-CABLE,DIFFEREN | 1 |
| 1 | 14055-1072 | CASE-GEAR,BEVEL | 1 |
| 1 | 14055-1082 | CASE-GEAR | 1 |
| 31064-1093 | PIPE-COMP | ||
| 1 | 41046-1065 | HOUSING-BEARING | 1 |
| 1 | 42034-1078 | COUPLING,DIFFERENTIAL | 1 |
| 1 | 49006-1237 | BOOT,DRIVE SHAFT | 1 |
| 2 | 49022-1065 | GEAR-BEVEL,10T | 2 |
| 1 | 49022-1104 | GEAR-BEVEL,OD=35,16T | 1 |
| 1 | 49022-1106 | GEAR-BEVEL,OD=30,16T | 1 |
| 59266-1070 | JOINT-BALL | ||
| 8 | 92002-1553 | BOLT,8X68 | 8 |
| 1 | 92005-1127 | FITTING,BREATHER | 1 |
| 1 | 92015-1182 | NUT,12MM | 1 |
| 4 | 92015-1402 | NUT,8MM | 4 |
| 1 | 92015-1406 | NUT,FLANGED,8MM | 1 |
| 1 | 92022-1293 | WASHER,12X3X25X3.2 | 1 |
| 1 | 92022-1742 | WASHER | 1 |
| 1 | 92025-1282 | SHIM,12.5X17X1.30 | 1 |
| 1 | 92025-1287 | SHIM,12.5X17X0.1 | 1 |
| 1 | 92025-1288 | SHIM,12.5X17X0.2 | 1 |
| 1 | 92025-1289 | SHIM,12X5X17X0.3 | 1 |
| 1 | 92025-1290 | SHIM,12.5X17X0.5 | 1 |
| 1 | 92025-1291 | SHIM,12.5X17X0.6 | 1 |
| 1 | 92025-1292 | SHIM,12.5X17X0.7 | 1 |
| 1 | 92025-1293 | SHIM,12.5X17X0.8 | 1 |
| 1 | 92025-1294 | SHIM,12.5X17X0.9 | 1 |
| 1 | 92025-1295 | SHIM,12.5X17X1.0 | 1 |
| 1 | 92025-1703 | SHIM,T=0.10 | 1 |
| 1 | 92025-1704 | SHIM,T=0.15 | 1 |
| 1 | 92025-1705 | SHIM,T=0.50 | 1 |
| 2 | 130D0610 | BOLT-FLANGED | 2 |
| 8 | 130G0825 | BOLT-FLANGED,8X25 | 8 |
| 4 | 172G0825 | BOLT-STUD,8X25 | 4 |
| 2 | 221B0618 | SCREW 6X18 | 2 |
| 1 | 555A0528 | PIN-SPRING | 1 |
| 2 | 610A0812 | ROLLER,8X12 | 2 |
| 1 | 670B2010 | O RING,10MM | 1 |
| 1 | 92025-1706 | SHIM,T=0.80 | 1 |
| 1 | 92025-1707 | SHIM,T=1.00 | 1 |
| 1 | 92025-1708 | SHIM,T=1.20 | 1 |
| 1 | 92025-1709 | SHIM,40.5X50X0.10 | 1 |
| 1 | 92025-1710 | SHIM,40.5X50X0.15 | 1 |
| 1 | 92025-1711 | SHIM,40.5X50X0.50 | 1 |
| 1 | 92025-1712 | SHIM,40.5X50X0.80 | 1 |
| 1 | 92025-1713 | SHIM,40.5X50X1.00 | 1 |
| 1 | 92025-1714 | SHIM,40.5X50X1.20 | 1 |
| 1 | 92037-1523 | CLAMP | 1 |
| 1 | 92037-1610 | CLAMP | 1 |
| 1 | 92037-1654 | CLAMP | 1 |
| 1 | 92045-1145 | BEARING-BALL,6208CM | 1 |
| 1 | 92045-1213 | BEARING-BALL,6210CM | 1 |
| 1 | 92049-1231 | SEAL-OIL | 1 |
| 1 | 92055-022 | RING-O,17.5X1.5 | 1 |
| 1 | 92055-1005 | RING-O,35.8X3.0 | 1 |
| 1 | 92055-1119 | RING-0,27MM | 1 |
| 92055-1296 | RING-O,54.8MM | ||
| 1 | 92055-1297 | RING-O,179.8MM | 1 |
| 1 | 92059-1939 | TUBE | 1 |
| 1 | 92065-058 | GASKET,10.5X16X1 | 1 |
| 92066-1006-7J | PLUG,OIL FILLER CAP,M | ||
| 1 | 92067-001 | PLUG,DRAIN,10X12 | 1 |
| 1 | 92081-1853 | SPRING | 1 |
| 1 | 92116-1005 | BEARING-ROLLER,4T-CR- | 1 |
| 1 | 92116-1010 | BEARING-ROLLER,4T3200 | 1 |
| 1 | 92144-1235 | SPRING | 1 |
