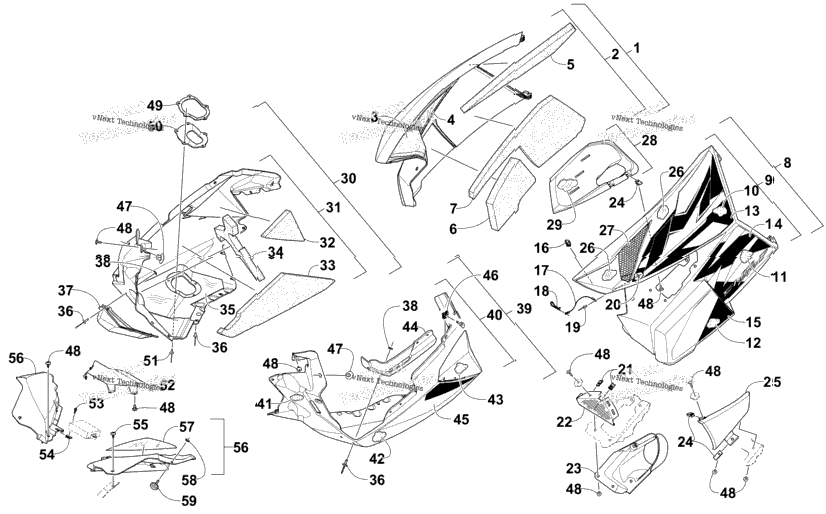

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 4718-654 | Panel, Side - w/Decals - Right - Black (inc. 2-7,13-15 and 17-20) | ||
| 1 | 3718-180 | Panel, Side - Right w/Foam - Black (inc. 3-7 and 17-20) | 1 |
| 1 | 0617-626 | Foam, Side Panel - Upper Front - Right | 1 |
| 1 | 6606-414 | Foil, Protective | 1 |
| 1 | 0617-628 | Foam, Side Panel - Upper Rear - Right | 1 |
| 1 | 0617-632 | Foam, Side Panel - Lower Front - Right | 1 |
| 1 | 0617-634 | Foam, Side Panel - Lower Rear - Right | 1 |
| 4718-655 | Panel, Side - w/Decals - Left - Black (inc. 9-20) | ||
| 1 | 4718-553 | Panel, Side w/Foam- Left - Black (inc. 10-12 and 16-20) | 1 |
| 1 | 0617-629 | Foam, Side Panel - Upper Rear - Left | 1 |
| 1 | 0617-635 | Foam, Side Panel - Lower Rear - Left | 1 |
| 1 | 0617-681 | Foam, Side Panel - Lower Front - Left | 1 |
| 1 | 2621-432 | Decal, Side Panel - Upper - Right - Black | 1 |
| 1 | 2621-433 | Decal, Side Panel - Upper - Left - Black | 1 |
| 1 | 2621-438 | Decal, Side Panel - Lower Rear - Right - Black | 1 |
| 1 | 2621-439 | Decal, Side Panel - Lower Rear - Left - Black | 1 |
| 1 | 2621-436 | Decal, Side Panel - Lower Front - Right - Black | 1 |
| 1 | 2621-437 | Decal, Side Panel - Lower Front - Left - Black | 1 |
| 1 | 1623-637 | Clip, U-Nut | 1 |
| 2 | 0607-447 | Cable | 2 |
| 2 | 0605-283 | Clip, Hairpin | 2 |
| 2 | 8060-486 | Rivet | 2 |
| 2 | 8050-127 | Washer | 2 |
| 2 | 1623-052 | Clip, U-Nut | 2 |
| 1 | 6606-925 | Screen, Intake | 1 |
| 1 | 2602-794 | Duct, Intake - Inner | 1 |
| 4 | 1623-030 | Clip, U-Nut | 4 |
| 1 | 2602-793 | Duct, Intake - Outer - Black | 1 |
| 1 | 0619-206 | Foil, Protective | 1 |
| 1 | 5706-531 | Screen, Intake | 1 |
| 1 | 1702-369 | Duct, Belt Cooling (inc. 29) | 1 |
| 1 | 6606-694 | Foil, Protective | 1 |
| 4718-656 | Plate, Skid - w/Decals - Right - Black (inc. 31-38 and 45) | ||
| 1 | 3718-422 | Plate, Skid - w/o Decals - Right - Black (inc. 32-38) | 1 |
| 1 | 0617-640 | Foam, Skid Plate - Upper Rear - Right | 1 |
| 1 | 0617-638 | Foam, Skid Plate - Center Front - Right | 1 |
| 1 | 0617-636 | Foam, Skid Plate - Upper Front - Right | 1 |
| 1 | 2612-850 | Foil, Protective | 1 |
| 26 | 8061-708 | Rivet | 26 |
| 1 | 2612-754 | Deflector, Heat | 1 |
| 8 | 0123-802 | Washer | 8 |
| 1 | 4718-657 | Plate, Skid - w/Decals - Left - Black | 1 |
| 1 | 3718-789 | Plate, Skid - Left w/Foam - Black | 1 |
| 1 | 0617-637 | Foam, Skid Plate - Upper Front - Left | 1 |
| 1 | 0617-639 | Foam, Skid Plate - Center Front - Left | 1 |
| 1 | 0617-641 | Foam, Skid Plate - Upper Rear - Left | 1 |
| 1 | 6606-613 | Panel, Reinforcement | 1 |
| 2621-440 | Decal, Skid Plate - Lower Front - Right - Black | ||
| 1 | 2621-441 | Decal, Skid Plate - Lower Front - Left - Black | 1 |
| 2 | 2623-005 | Clip, Retaining | 2 |
| 2 | 6606-592 | Pin, Retaining | 2 |
| 1623-129 | Screw, Self-Tapping | ||
| 1 | 2612-796 | Plate, Exhaust Outlet | 1 |
| 1 | 2612-795 | Seal, Exhaust Outlet | 1 |
| 6 | 8061-710 | Rivet | 6 |
| 1 | 6606-295 | Shield, Heat - EMC | 1 |
| 2 | 8408-620 | Screw, Cap | 2 |
| 2 | 0423-031 | Clip, U-Nut | 2 |
| 2 | 0623-784 | Screw, Self-Tapping | 2 |
| 1 | 6606-342 | Fascia, Front - Right - Black | 1 |
| 1 | 3718-303 | Fascia, Front - Left - Black (inc. 57) | 1 |
| 6606-405 | Foil, Protective | ||
| 1 | 2623-001 | RETAINER,PUSHNUT - 3/16" STUD | 1 |
| 1 | 1623-999 | Screw, Thumb | 1 |
