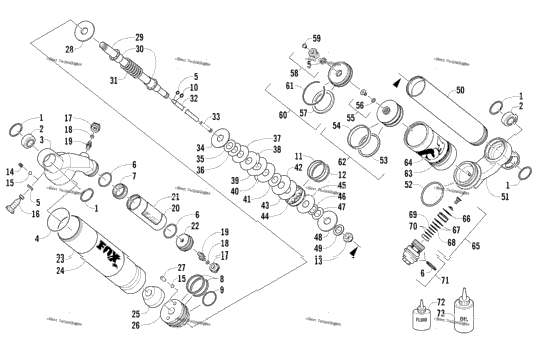

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 2703-908 | Complete Shock Absorber - Right | 1 |
| 1 | 2703-909 | Complete Shock Absorber - Left | 1 |
| 4 | 3604-147 | Ring, Retaining | 4 |
| 2 | 1604-664 | Bearing | 2 |
| 2603-027 | End Cap, Shock - Right | ||
| 1 | 2603-026 | End Cap, Shock - Left | 1 |
| 1 | 2603-929 | Kit, Seal/Bearing Rebuild (inc. 5-13) | 1 |
| 1604-318 | O-Ring | ||
| 3 | 2603-502 | O-Ring | 3 |
| 1 | 3604-653 | Piston, Internal Floating | 1 |
| 2 | 2603-863 | Strap, Teflon | 2 |
| 1 | 1604-420 | O-Ring | 1 |
| 3603-011 | O-Ring | ||
| 2603-994 | Strap, Piston | ||
| 1 | 3603-010 | O-Ring | 1 |
| 0603-301 | Nut, Cap - Fox Shock | ||
| 2603-529 | Spring | ||
| 1604-315 | Ball, Bleed | ||
| 3603-004 | Knob, Damping Adjuster | ||
| 2603-980 | Cap, Air Valve | ||
| 2 | 2603-965 | Seal | 2 |
| 2 | 2603-511 | Valve, Air | 2 |
| 3603-002 | Reservoir | ||
| 1 | 2603-958 | Decal, Reservoir | 1 |
| 1 | 2603-966 | End Cap, Reservoir | 1 |
| 2603-025 | SLEEVE,DUAL WIPER-1.834IDX2.08ODX8.415" | ||
| 3603-006 | Decal, Shock | ||
| 3603-005 | Bumper, Shock | ||
| 2603-023 | Bearing - Assembly | ||
| 1603-940 | Screw, Set | ||
| 3603-008 | Spacer | ||
| 1 | 2603-029 | Rod, Shock | 1 |
| 2 | 2603-522 | Guide, Spring | 2 |
| 2603-024 | Spring | ||
| 3603-001 | Rod, Damping Adjuster | ||
| 2603-943 | Valve, Check - Assembly | ||
| 1 | 0603-540 | Washer, Top Out - 1.125OD x 0.378ID x 0.093 | 1 |
| 0603-335 | Valve, 0.800 x 0.010 in. | ||
| 0603-338 | Valve, 0.900 x 0.010 in. | ||
| 0603-341 | Valve, 1.000 x 0.010 in. | ||
| 0603-344 | Valve, 1.100 x 0.010 in. | ||
| 1 | 0603-347 | Valve, 1.250 x 0.010 in. | 1 |
| 0603-350 | Valve, 1.300 x 0.010 in. | ||
| 1 | 0603-336 | Valve, 0.900 x 0.006 in. | 1 |
| 0603-349 | Valve, 1.300 x 0.008 in. | ||
| 0603-348 | Valve, 1.300 x 0.006 in. | ||
| 1 | 2603-995 | Piston, 0.059 in. - Orifice | 1 |
| 0603-343 | Valve, 1.100 x 0.008 in. | ||
| 3604-171 | Valve, 0.600 x 0.004 in. | ||
| 0603-333 | Valve, 0.800 x 0.006 in. | ||
| 3604-170 | Washer, Top Out | ||
| 0603-389 | Washer, Backup | ||
| 2603-022 | Body, Shock - Lower | ||
| 2603-021 | End Cap, Shock/Reservoir | ||
| 1 | 3604-539 | Kit, Rebuild - Reservoir (inc. one No. 5-6 and 53-59) | 1 |
| 1603-236 | O-Ring | ||
| 1603-235 | Strap, Piston | ||
| 1604-316 | Screw, Machine - w/O-Ring (inc. 56) | ||
| 1604-425 | O-Ring (FOX only) | ||
| 0603-671 | O-Ring | ||
| 1 | 0703-341 | Valve, Pressure - Assembly (inc. one No. 5) | 1 |
| 0624-097 | Screw, Valve | ||
| 1 | 2603-525 | End Cap, Reservoir - Assembly - Bore (inc. one No. 5 and 57-58) | 1 |
| 1 | 0604-992 | Ring, Retaining | 1 |
| 1 | 3604-524 | Piston, Internal Floating (inc. 53-56) | 1 |
| 1 | 2603-515 | Reservoir | 1 |
| 3603-007 | Decal, Reservoir | ||
| 3603-003 | Piston, Concentric - Damping Adjuster (inc. 66-70) | ||
| 0603-331 | Valve, 0.700 x 0.008 in. | ||
| 2603-501 | Valve, 0.700 x 0.010 in. | ||
| 2603-500 | Valve, 0.600 x 0.010 in. | ||
| 2603-499 | Valve, 0.500 x 0.006 in. | ||
| 3604-165 | Plate, Backup | ||
| 2603-527 | Cartridge, Damping Adjuster (inc. 6) | ||
| 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | ||
| 5639-530 | SEMI-SYN SHOCK OIL-1 QUART |
