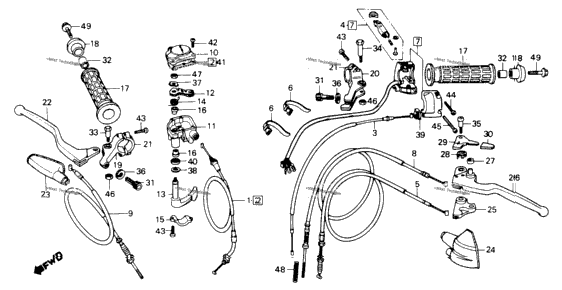

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 17910-HA6-000 | CABLE, THROTTLE | ||
| 17910-HA6-680 | CABLE, THROTTLE | ||
| 17950-HA6-000 | CABLE, CHOKE | ||
| 17962-HA6-305 | LEVER, CHOKE | ||
| 22880-HA6-000 | CABLE, REVERSE ASSIST | ||
| 22880-HA6-680 | CABLE, REVERSE ASSIST | ||
| 2 | 32161-404-000 | BAND B1, CABLE | 2 |
| 35200-HA6-003 | SWITCH ASSY., LIGHTING ENGINE Use up to Frame SN FM053002 | ||
| 35200-HA6-013 | SWITCH ASSY., LIGHTING ENGINE | ||
| 43460-HA0-405 | CABLE, BRAKE | ||
| 43460-HA6-000 | CABLE, HAND BRAKE | ||
| 45450-HA6-000 | CABLE, FR. BRAKE | ||
| 53141-HA0-000 | COVER, THROTTLE CASE (NA USE ALT:04005-HA0-000) | ||
| 53142-HA0-000 | CASE, THROTTLE LEVER (NA USE ALT:04005-HA0-000) | ||
| 1 | 53144-HA0-000 | ARM, THROTTLE | 1 |
| 1 | 53144-HA0-010 | ARM, THROTTLE | 1 |
| 1 | 53145-HA0-000 | LEVER, THROTTLE | 1 |
| 1 | 53145-HA0-770 | LEVER, THROTTLE | 1 |
| 1 | 53146-HA0-000 | SPRING, THROTTLE RETURN | 1 |
| 53147-965-000 | HOLDER, THROTTLE CASE | ||
| 2 | 53148-HA0-000 | BUSH, THROTTLE PIVOT | 2 |
| 2 | 53165-958-010 | GRIP, HANDLE | 2 |
| 2 | 53167-958-680 | GUARD, HANDLEBAR END | 2 |
| 53171-HA6-000 | BRACKET, R. HANDLE LEVER | ||
| 53172-HA6-000 | BRACKET, BRAKE LEVER | ||
| 2 | 53173-376-000 | HOLDER, LEVER BRACKET | 2 |
| 53175-HA6-000 | LEVER, R. HANDLEBAR | ||
| 53176-VM6-000 | COVER, R. HANDLE LEVER | ||
| 53177-VM6-000 | COVER, L. HANDLEBAR | ||
| 1 | 53179-HA6-000 | ARM, REVERSE ASSIST | 1 |
| 53180-HA6-000 | LEVER, RR. BRAKE | ||
| 1 | 53187-VM6-000 | CAP, REVERSE PIN | 1 |
| 1 | 53191-961-010 | SPRING, PARKING BRAKE LEVER | 1 |
| 1 | 53192-HA6-000 | LEVER, PARKING LOCK | 1 |
| 1 | 53192-HA8-770 | LEVER, PARKING LOCK | 1 |
| 1 | 53192-HA8-771 | LEVER, PARKING LOCK | 1 |
| 1 | 53193-VM6-000 | CAP, PARKING LEVER | 1 |
| 1 | 53193-HA0-770 | CAP, PARKING LEVER | 1 |
| 2 | 53193-968-000 | BOLT, WIRE ADJUSTING | 2 |
| 2 | 84906-118-000 | COLLAR, NUMBER BRACKET SETTING | 2 |
| 90113-HA6-000 | BOLT, HANDLE LEVER PIVOT | ||
| 1 | 90114-HA6-000 | BOLT, HANDLE LEVER PIVOT | 1 |
| 1 | 90115-HA6-000 | SCREW, PARKING LEVER PIVOT | 1 |
| 2 | 90321-315-670 | NUT, FIXING | 2 |
| 2 | 90321-968-000 | NUT, FIXING | 2 |
| 1 | 90501-HA0-000 | WASHER, LOCK (6MM) | 1 |
| 1 | 90504-HA0-000 | WASHER (9X20) | 1 |
| 1 | 91210-HA0-003 | DUST SEAL (9X16X5) (ARAI) | 1 |
| 1 | 91210-HA0-004 | DUST SEAL (9X16X5) (NOK) | 1 |
| 1 | 91532-HA0-000 | GASKET, THROTTLE CASE | 1 |
| 1 | 91532-HA0-010 | GASKET, THROTTLE CASE | 1 |
| 1 | 91532-HA0-020 | GASKET, THROTTLE CASE | 1 |
| 3 | 93500-04012-0G | SCREW, PAN (4X12) | 3 |
| 6 | 93500-05018-0G | SCREW, PAN (5X18) | 6 |
| 1 | 93500-05025-0G | SCREW, PAN (5X25) | 1 |
| 1 | 93500-05035-0G | SCREW, PAN (5X35) | 1 |
| 2 | 94001-06070-0S | NUT, HEX. (6MM) | 2 |
| 1 | 94002-06000-0S | NUT, HEX. (6MM) | 1 |
| 43467-HA0-000 | SPRING, RR. BRAKE ROD Use from Frame SN FM050253 | ||
| 1 | 95014-73100 | SPRING A, BRAKE ROD Use up to Frame SN FM050252 | 1 |
| 2 | 95700-06025-07 | BOLT, FLANGE (6X25) | 2 |
| 2 | 95701-06025-07 | BOLT, FLANGE (6X25) | 2 |
