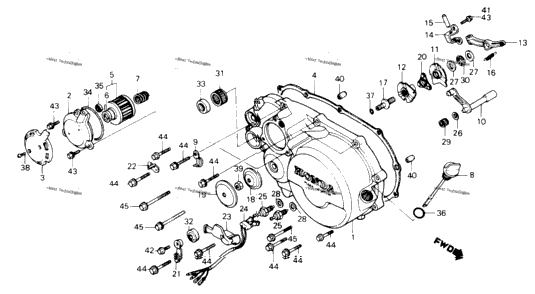

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 11330-HA6-000 | COVER, R. CRANKCASE | ||
| 11330-HA6-770 | COVER, R. CRANKCASE | ||
| 11333-HA6-000 | COVER, OIL FILTER | ||
| 11334-HA0-000 | PROTECTOR, OIL FILTER COVER | ||
| 1 | 11394-HA0-000 | GASKET, R. CRANKCASE COVER | 1 |
| 1 | 11394-HA0-306 | GASKET, R. CRANKCASE COVER | 1 |
| 1 | 15410-KF0-305 | ELEMENT, OIL FILTER | 1 |
| 1 | 15410-KF0-315 | ELEMENT, OIL FILTER | 1 |
| 1 | 15412-KF0-010 | ELEMENT, OIL FILTER | 1 |
| 1 | 15413-MC8-000 | RUBBER, FILTER | 1 |
| 1 | 15414-KF0-000 | SPRING, OIL FILTER ELEMENT SETTING | 1 |
| 15650-HA6-000 | DIPSTICK, OIL | ||
| 17215-393-780 | CLIP, AIR VENT TUBE | ||
| 22810-HA0-000 | LEVER, CLUTCH | ||
| 22821-HA0-300 | PLATE, CLUTCH CAM | ||
| 22830-HA0-000 | PLATE, CLUTCH LIFTER | ||
| 22835-HA0-000 | ARM, CLUTCH | ||
| 22836-HA0-000 | STAY, CLUTCH ARM | ||
| 22837-HA0-000 | SHAFT, CLUTCH ARM | ||
| 22839-HA0-000 | SPRING, CLUTCH ARM | ||
| 22841-HA0-000 | BOLT, CLUTCH ADJUSTING | ||
| 22842-HA0-000 | RETAINER, CLUTCH | ||
| 22850-HA0-000 | CAP, CLUTCH ADJUSTING | ||
| 22860-HA0-000 | RETAINER, BALL | ||
| 24865-HA0-000 | LEVER, REVERSE STOPPER | ||
| 24871-HA0-000 | HOLDER, REVERSE STOPPER WIRE Use up to Engine SN 5089595 | ||
| 24871-HA0-010 | HOLDER, REVERSE STOPPER WIRE | ||
| 24880-HA0-000 | COVER, HARNESS | ||
| 32410-HA0-000 | SUB-WIRE, CHANGE SWITCH | ||
| 32410-HA0-010 | SUB-WIRE, CHANGE SWITCH | ||
| 2 | 35600-KE8-000 | SWITCH ASSY., NEUTRAL | 2 |
| 2 | 35600-KE8-003 | SWITCH ASSY., NEUTRAL | 2 |
| 90405-HA0-000 | WASHER (9MM) | ||
| 2 | 90417-HA0-000 | WASHER, THRUST (14MM) | 2 |
| 2 | 90545-300-000 | WASHER, OIL BOLT | 2 |
| 1 | 91006-HA0-003 | BEARING, NEEDLE (9MM) | 1 |
| 91062-HA0-003 | BEARING, THRUST NEEDLE (15MM) | ||
| 1 | 91106-KF0-008 | BEARING, NEEDLE (20X26X12) | 1 |
| 1 | 91201-965-000 | OIL SEAL (12X22X5) | 1 |
| 1 | 91203-MC8-003 | OIL SEAL (12X22X5) (ARAI) Use up to Engine SN 5153742 | 1 |
| 1 | 91204-KF0-003 | OIL SEAL (20X28X5) | 1 |
| 1 | 91302-KF0-003 | O-RING (54X2.4) (ARAI) | 1 |
| 1 | 91301-671-671 | O-RING (1.9X11) | 1 |
| 91303-HA0-000 | O-RING (11X1.9) (ARAI) | ||
| 1 | 91303-HA0-003 | O-RING (11X1.9) (ARAI) | 1 |
| 1 | 91303-HA0-004 | O-RING (11X1.9) (NOK) | 1 |
| 1 | 91307-KF0-003 | O-RING (18X3) (ARAI) | 1 |
| 1 | 91308-MC7-000 | O-RING (8.2X1.5) | 1 |
| 2 | 90017-HA0-000 | SCREW, TAPPING (4X12) Use from Engine SN 5139334 | 2 |
| 2 | 93901-24320 | SCREW, TAPPING (4X12) Use up to Engine SN 5139333 | 2 |
| 1 | 94031-08000 | NUT, HEX. (8MM) | 1 |
| 2 | 94301-08140 | PIN A, DOWEL (8X14) | 2 |
| 1 | 93493-06012-07 | BOLT-WASHER (6X12) | 1 |
| 1 | 95700-06012 | BOLT, FLANGE (6X12) | 1 |
| 1 | 95700-06012-00 | BOLT, FLANGE (6X12) | 1 |
| 1 | 95700-06012-10 | BOLT, FLANGE (6X12) | 1 |
| 1 | 95701-06012-00 | BOLT, FLANGE (6X12) | 1 |
| 1 | 95800-06012 | BOLT, FLANGE (6X12) | 1 |
| 1 | 95800-06012-00 | BOLT, FLANGE (6X12) | 1 |
| 1 | 95900-06012-00 | BOLT, FLANGE (6X12) | 1 |
| 1 | 95900-06012-02 | BOLT, FLANGE (6X12) | 1 |
| 5 | 96000-06016-00 | BOLT, FLANGE (6X16) | 5 |
| 5 | 96001-06016-00 | BOLT, FLANGE (6X16) | 5 |
| 9 | 96000-06028-00 | BOLT, FLANGE (6X28) | 9 |
| 9 | 96001-06028-00 | BOLT, FLANGE (6X28) | 9 |
| 3 | 96000-06035-00 | BOLT, FLANGE (6X35) | 3 |
| 3 | 96001-06035-00 | BOLT, FLANGE (6X35) | 3 |
