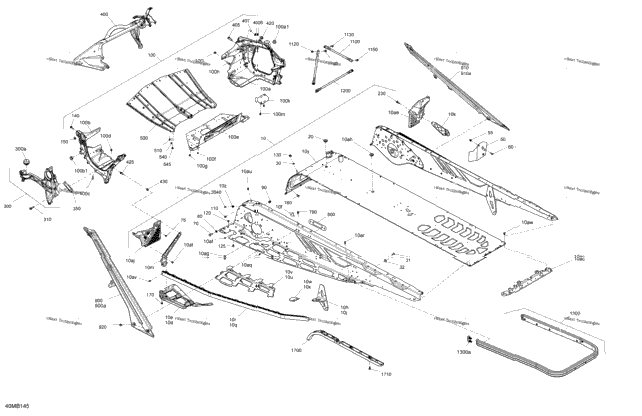

Список запчастей

№	Артикул	Название	Кол-во
1	415130490	Chassis Tunnel Module 154" Includes 10 to 10aw	1
1	518332803	Deep Black, RH Footrest Reinforcement	1
1	518332802	Deep Black, LH Footrest Reinforcement	1
2	518329659	Front Suspension Arm Reinforcement	2
1	518329632	LH Bracket	1
1	518329633	RH Bracket	1
1	518331253	Stirrup Reinforcement	1
1	518332924	Deep Black, LH Chassis Reinforcement	1
1	518328451	RH Roller	1
1	518328452	LH Roller	1
1	518331564	RH Central Tunnel Reinforcement	1
1	518331565	LH Central Tunnel Reinforcement	1
1	518329088	LH Reinforcement Plate	1
1	518329089	RH Reinforcement Plate	1
1	518332554	Radiator Tunnel 154	1
3	250100199	Insert Half Hex Body M6 x 1.0	3
1	518328990	Rear Cap	1
1	518330691	RH Footrest	1
3	293730041	Full Moon Dart 8 mm	3
2	293730059	Full Moon Dart 10 mm	2
1	293730052	Black, Plug	1
1	518331559	LH Foot Protector	1
1	293150203	Rivet Avibulb 3/16	1
6	293150183	Rivet	6
4	293150096	Hemlock Rivet, 6.5 mm	4
1	293150119	Hemlock Rivet, 6.5 mm	1
4	293150174	Hemlock Rivet, 6.4 mm	4
2	293150147	Hemlock Rivet	2
2	234081410	Flat Washer 8 mm	2
12	250000779	Torx Screw M6 X 1.0 X 18, Scotch Grip	12
12	224061201	Flat Washer	12
1	518331823	Heat Shield	1
2	293450275	Insert	2
2	250000717	Torx Head Screw M6 X 16	2
2	250000942	Hex Screw M8 X 30	2
1	293150096	Hemlock Rivet, 6.5 mm	1
2	233281414	Hex. Flange Elastic Nut M8	2
1	518332691	Engine Chassis Module Ass'y Includes 100 to 100m	1
1	518332689	RH Member Ass'y Includes 100a to 100a1	1
1	505072690	Leg Bushing	1
1	518332688	LH Member Ass'y Includes 100b to 100b1	1
3	293150148	Rivet Magna-Grip 6,4 X 50,8	3
3	293150149	Collar Huck Magna-Grip 6.4	3
1	518332715	Bottom Plate	1
10	293150203	Rivet Avibulb 3/16	10
1	293450268	Insert M5 X 0.8	1
2	250000945	Hex. Flange Screw M6 X 25	2
2	233261414	Hex. Flange Elastic Nut M6 x 1.0	2
1	518329454	Oil Plate	1
2	250000767	Torx Truss Screw M6 X 12	2
3	293150147	Hemlock Rivet	3
2	293150174	Hemlock Rivet, 6.4 mm	2
2	293150120	Hemlock Rivet 6.5 mm	2
2	207662046	Hex. Flange Screw M6 X 20	2
2	233261416	Elastic Flange Nut M6 X 1.0	2
1	293450267	Insert M5 - 0.8	1
4	207661646	Hex. Flange Screw M6 X 16	4
1	207562056	Hex. Flange Screw M6 X 20	1
1	518333691	LH Side Member Ass'y Includes 300 to 300a	1
2	512060295	Rubber Mount	2
4	250001060	Screw-Pan HD.Torx M8X30	4
1	518331740	LH Front Chassis Reinforcement	1
1	518331593	Chassis Suspension Module	1
2	250001148	Screw Hex M10 X 30	2
2	234001410	Flat Washer 10 mm	2
2	505072448	O-Ring	2
2	250100165	Hex. Flange Elastic Nut M10	2
1	233261416	Elastic Flange Nut M6 X 1.0	1
1	518331615	Front Bottom Plate	1
5	293450268	Insert M5 X 0.8	5
4	390909100	Avex Rivet	4
3	293150173	Rivet 6,4 mm	3
2	293450278	Insert	2
2	518329480	Member Fixation Plate	2
	518333266	Deep Black,LH Rear Diagonal Cross Member Includes 900 to 900a
	518333264	LH Rear Diagonal Cross Member
	518333267	Deep Black,RH Rear Diagonal Cross Member Includes 910 to 910a
	518333265	RH Rear Diagonal Cross Member
4	250000887	Pan Head Torx Screw M8 X 12	4
2	518329370	Upper Colomn Support	2
7	233261416	Elastic Flange Nut M6 X 1.0	7
1	207662556	Hex. Flange Screw M6 X 25	1
6	207662046	Hex. Flange Screw M6 X 20	6
1	518329755	Center Column Support	1
1	860201250	Black, Hitch Bumper 154 Includes 1300 to 1300a	1
2	520001629	Bumper Cap	2
1	518329982	Front Protector	1
3	293150108	Pop Rivet 3/16”	3
2	293730079	Dart	2
