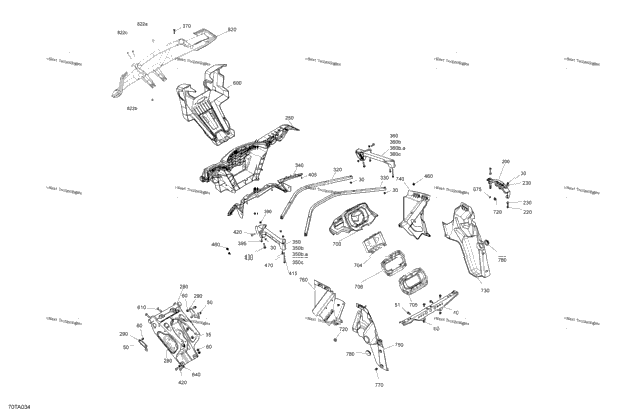

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 233261434 | Flange Elastic Nut M6 | 1 |
| 2 | 233281434 | Hex. Flange Elastic Nut M8 Model DPS | 2 |
| 2 | 233201434 | Hex. Flange Elastic Nut M10 Models XTP and LTD | 2 |
| 1 | 705006812 | Cargo Rack Center Support | 1 |
| 6 | 207682044 | Hex. Flange Screw M8 X 20 | 6 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 12 | 233281434 | Hex. Flange Elastic Nut M8 | 12 |
| 1 | 715007677 | Shifter Gate Ass'y | 1 |
| 2 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 2 |
| 4 | 224061201 | Flat Washer | 4 |
| 1 | 705012822 | Fascia | 1 |
| 705009253 | Black, Front Bumper Support | ||
| 2 | 705004565 | Lower Fender Support | 2 |
| 2 | 705016091 | Bent Sectional Tube | 2 |
| 2 | 705016092 | Bent Sectional Tube | 2 |
| 1 | 705004523 | Lugage Rack Moulding | 1 |
| 1 | 705011553 | LH Support Luggage Rack Ass'y Includes 350 to 350c | 1 |
| 2 | 269501943 | Elastic Nut Housing M8 | 2 |
| 1 | 232581200 | Hex. Elastic Nut M8 Brass | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 705011555 | RH Support Luggage Rack Ass'y Includes 360 to 360c | 1 |
| 16 | 250000646 | Black, Torx Screw M6 X 35 | 16 |
| 8 | 250100199 | Insert Half Hex Body M6 x 1.0 | 8 |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 2 |
| 4 | 241140060 | Screw K40 X 10 | 4 |
| 2 | 207567044 | Hex. Flange Screw M6x70, Scotch Grip | 2 |
| 2 | 250000886 | Torx Screw M8 X 30 Models XTP and LTD | 2 |
| 2 | 207683544 | Hex. Flange Screw M8 X 35 | 2 |
| 8 | 517302785 | Edge Clip | 8 |
| 2 | 250000101 | Plastite Screw Type K-40, M4 X 25 | 2 |
| 1 | 705006299 | Front Guard Plate | 1 |
| 2 | 236282054 | Hex. Screw M8 X 20 Model DPS | 2 |
| 2 | 205003044 | Socket Screw M10 x 30 Models XTP and LTD | 2 |
| 2 | 705004497 | Ring | 2 |
| 2 | 250000723 | Phillips Screw K40 X 16 | 2 |
| 1 | 705013984 | Gauge Support | 1 |
| 4 | 250100143 | Extruded Panel Nut M4 X 0.7 Not shown | 4 |
| 1 | 705015548 | Interior Gauge Support Model DPS | 1 |
| 1 | 705013985 | Front Gauge Trim Models XTP and LTD | 1 |
| 1 | 705015547 | Gauge Trim Model DPS | 1 |
| 4 | 250000797 | Torx Head Screw M4 X 16 Not shown | 4 |
| 4 | 705003264 | Grommet | 4 |
| 1 | 705013925 | RH Wheel Arch Protector | 1 |
| 1 | 705011463 | RH Front Inner Fender | 1 |
| 1 | 705013924 | LH Wheel Arch Protector | 1 |
| 1 | 705011465 | LH Front Inner Fender | 1 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
| 1 | 293250242 | Rubber Cover | 1 |
| 1 | 715004837 | Deep Black, Bumber Kit | 1 |
| 2 | 207782044 | Carriage Bolt, M8 X 20 Models XTP and LTD | 2 |
| 2 | 233281434 | Hex. Flange Elastic Nut M8 Models XTP and LTD | 2 |
