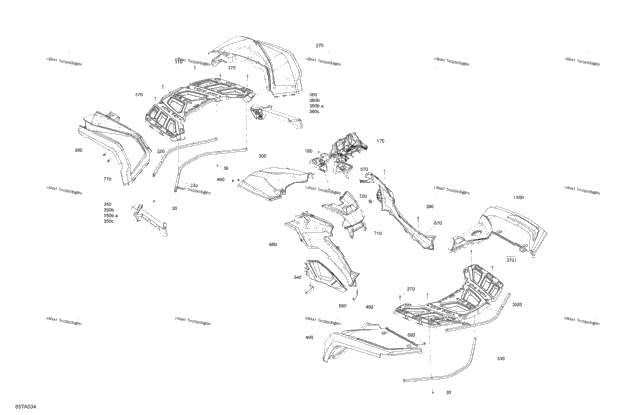

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 233261434 | Flange Elastic Nut M6 | 1 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 1 | 715003984 | Dash Support Kit | 1 |
| 1 | 715007557 | Oxford Blule, LH Front Fender Ass'y Package LTD | 1 |
| 1 | 715007559 | Carbon Black, LH Front Fender Ass'y Package XTP | 1 |
| 1 | 715007560 | Granit Grey, LH Front Fender Ass'y Package DPS | 1 |
| 1 | 715007586 | Oxford Blue, RH Front Fender Ass'y Package LTD | 1 |
| 1 | 715007596 | Carbon Black, RH Front Fender Ass'y Package XTP | 1 |
| 1 | 715007597 | Granite Grey, RH Front Fender Ass'y Package DPS | 1 |
| 1 | 715007668 | Oxford Blue, Central Hood Ass'y Package LTD | 1 |
| 1 | 715007675 | Granite Grey, Central Hood Ass'y Package DPS | 1 |
| 708303673 | Phoenix Orange Met, Hood Package XTP | ||
| 1 | 715002240 | Rack Kit | 1 |
| 2 | 705016091 | Bent Sectional Tube | 2 |
| 2 | 705016092 | Bent Sectional Tube | 2 |
| 1 | 705004523 | Lugage Rack Moulding | 1 |
| 1 | 705011553 | LH Support Luggage Rack Ass'y Includes 350 to 350c | 1 |
| 2 | 269501943 | Elastic Nut Housing M8 | 2 |
| 1 | 232581200 | Hex. Elastic Nut M8 Brass | 1 |
| 1 | 232561600 | Hex. Elastic Stop Nut M6 | 1 |
| 1 | 705011555 | RH Support Luggage Rack Ass'y Includes 360 to 360c | 1 |
| 16 | 250000646 | Black, Torx Screw M6 X 35 | 16 |
| 8 | 250100199 | Insert Half Hex Body M6 x 1.0 | 8 |
| 8 | 517302785 | Edge Clip | 8 |
| 1 | 715006960 | Boreal Green, LH Rear Fender Kit Package LTD | 1 |
| 1 | 715007655 | Phoenix Orange, LH Rear Fender Package XTP | 1 |
| 1 | 715007658 | Granite Grey, LH Rear Fender Ass'y Package DPS | 1 |
| 1 | 707002457 | Heat Shield | 1 |
| 1 | 705015819 | Oxford Blue Met, RH Rear Fender Model Oxford Blue Metallic | 1 |
| 1 | 705013877 | Carbon Black, RH Rear Fender Model Phoenix Orange Metallic | 1 |
| 1 | 705014396 | Granite Grey, RH Rear Fender Model Granite Grey | 1 |
| 4 | 732610072 | Push Nut | 4 |
| 7 | 250000722 | Torx Screw M6 X 20 | 7 |
| 1 | 705015840 | Oxford Blue Met, LH Central Panel Model Oxford Blue Metallic | 1 |
| 1 | 705015838 | Phoenix Orange Met, LH Central Panel Model Phoenix Orange Metallic | 1 |
| 1 | 705016111 | Granite Grey, LH Central Body Panel Model Granite Grey | 1 |
| 1 | 705015839 | Oxford Blue Met, RH Central Panel Model Oxford Blue Metallic | 1 |
| 1 | 705015837 | Phoenix Orange Met, RH Central Panel Model Phoenix Orange Metallic | 1 |
| 1 | 705016114 | Granite Grey, RH Central Body Panel Model Granite Grey | 1 |
| 1 | 715007294 | Deflector Body Panel Kit | 1 |
| 1 | 715007686 | Console Cap Ass'y Package XTP_LTD | 1 |
| 1 | 715002783 | Dash Kit Package DPS | 1 |
| 4 | 705003264 | Grommet | 4 |
| 1 | 293150230 | Tuflok Plastic Rivet | 1 |
