Демо
PowerCatalog
Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

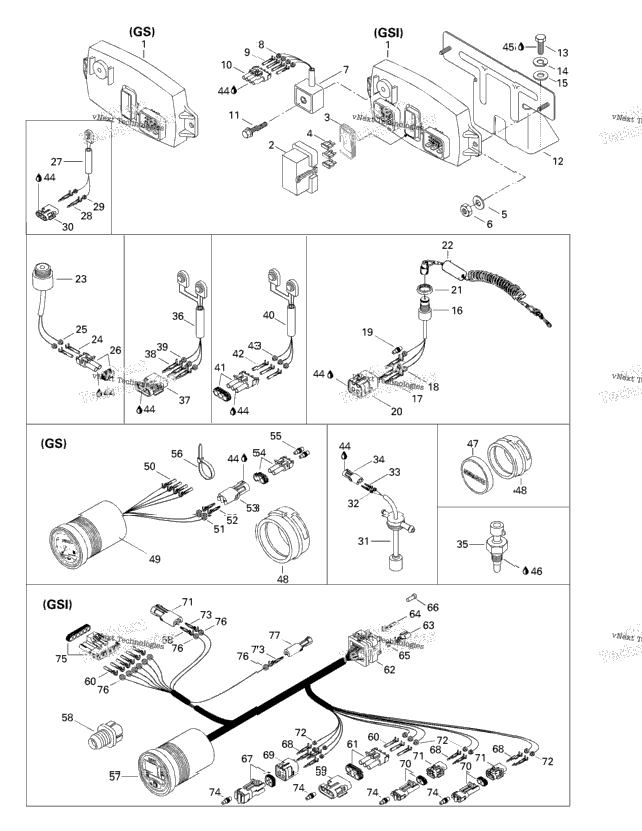

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 278000916 | ELECTRONIC MODULE ASS'Y Includes 1 - 4. GS 5621. | ||
| 278000928 | Electronic Module Ass'y GSI 5622. | ||
| 1 | 278001069 | Fuse Holder Cover | 1 |
| 278001070 | Cover Seal | ||
| 2 | 278000343 | Fuse, 15 Amperes | 2 |
| 2 | 278000704 | FUSE, 7.5 AMPERES | 2 |
| 2 | 278000344 | Fuse, 5 Amperes | 2 |
| 2 | 213200007 | Washer 6 mm | 2 |
| 2 | 212000001 | Elastic Stop Nut M6 | 2 |
| 278001056 | Rectifier Ass'y Includes 7 - 10. | ||
| 4 | 278000218 | Wire Seal | 4 |
| 4 | 409007300 | Female Terminal | 4 |
| 1 | 278000395 | Male Housing, 4 Circuits | 1 |
| 211000105 | Screw Hex. Tapping M6 x 35 | ||
| 278001128 | Box Support Ass'y | ||
| 4 | 211000074 | Screw Plastite | 4 |
| 4 | 217351500 | Lock Washer 5 mm | 4 |
| 4 | 213200015 | Washer 5 mm | 4 |
| 278000977 | Safety Switch Includes 16 - 20. | ||
| 3 | 278000222 | Male Terminal | 3 |
| 3 | 278000218 | Wire Seal | 3 |
| 1 | 278000216 | Wire Seal | 1 |
| 278000890 | FEMALE CONNECTOR, 4 CIRCUITS | ||
| 1 | 278000508 | Safety Switch Nut | 1 |
| 1 | 295500444 | Safety Landyard Ass'y | 1 |
| 278000978 | Buzzer Ass'y Includes 23 - 26. | ||
| 2 | 278000223 | Female Terminal | 2 |
| 2 | 278000218 | Wire Seal | 2 |
| 1 | 278000220 | Male Connector, 2 Circuits | 1 |
| 278001115 | Ignition Switch Ass'y (Stop / Start) Includes 27 - 30. | ||
| 2 | 278000222 | Male Terminal | 2 |
| 1 | 278000217 | Female Housing, 2 Circuits | 1 |
| 278000478 | Oil Level Sensor Includes 31 - 34. | ||
| 1 | 278000965 | Temperature Sensor | 1 |
| 278001076 | VTS Switch Ass'y Includes 36 - 39. GSI 5622. | ||
| 1 | 278000281 | Female Terminal Housing, 3 Circuits GSI 5622. | 1 |
| 3 | 278000222 | Male Terminal GSI 5622. | 3 |
| 3 | 278000218 | Wire Seal GSI 5622. | 3 |
| 278001077 | Gauge Switch Ass'y Includes 40 - 43. GSI 5622. | ||
| 1 | 278000273 | Male Housing, 3 Circuits GSI 5622. | 1 |
| 3 | 278000223 | Female Terminal GSI 5622. | 3 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 1 | 219704456 | Était/Was 293800038 Loctite 518, 50 ml | 1 |
| 293000067 | Gauge Cap (Bright Violet) GS 5621. | ||
| 293000069 | Gauge Cap (Indigo Blue) GSI 5622. | ||
| 293720047 | Gauge Support | ||
| 278000976 | Oil / Fuel Level Gauge Includes 49 - 56. GS 5621. | ||
| 278000995 | FEMALE TERMINAL GS 5621. | ||
| 2 | 278001065 | Wire Seal GS 5621. | 2 |
| 2 | 278000222 | Male Terminal GS 5621. | 2 |
| 1 | 278000217 | Female Housing, 2 Circuits GS 5621. | 1 |
| 1 | 278000220 | Male Connector, 2 Circuits GS 5621. | 1 |
| 2 | 278000216 | Wire Seal GS 5621. | 2 |
| 1 | 293750002 | Tie Wrap 142 mm GS 5621. | 1 |
| 278001050 | LCD Info Gauge Includes 57 - 77. GSI 5622. | ||
| 1 | 293720042 | GROMMET GSI 5622. | 1 |
| 9 | 278000223 | Female Terminal GSI 5622. | 9 |
| 278000993 | Male Connector, 26 Circuits GSI 5622. | ||
| 3 | 278000994 | FEMALE TERMINAL GSI 5622. | 3 |
| 278000995 | FEMALE TERMINAL GSI 5622. | ||
| 278000996 | WIRE SEAL GSI 5622. | ||
| 5 | 293000070 | SEALING CAP GSI 5622. | 5 |
| 1 | 278000891 | MALE CONNECTOR, 4 CIRCUITS GSI 5622. | 1 |
| 9 | 278000222 | Male Terminal GSI 5622. | 9 |
| 278000890 | FEMALE CONNECTOR, 4 CIRCUITS GSI 5622. | ||
| 2 | 278000220 | Male Connector, 2 Circuits GSI 5622. | 2 |
| 3 | 278000217 | Female Housing, 2 Circuits GSI 5622. | 3 |
| 11 | 278001065 | Wire Seal GSI 5622. | 11 |
| 2 | 409004300 | Male Terminal GSI 5622. | 2 |
| 11 | 278000216 | Wire Seal GSI 5622. | 11 |
| 278000221 | MALE CONNECTOR, 6 CIRCUITS GSI 5622. | ||
| 9 | 278000218 | Wire Seal GSI 5622. | 9 |
| 1 | 278000161 | Female Housing, 1 Circuit GSI 5622. | 1 |
| 1 | 278001307 | WIRE SEAL | 1 |
