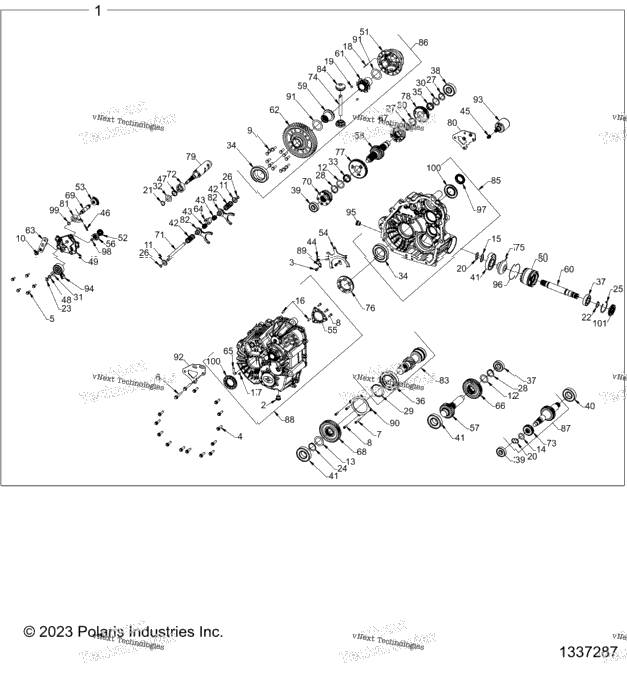

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 1337282 | ASM-GEARCASE,REAR,DIFF [INCL ALL] | 1 |
| 1 | 3234756 | SOCKET HEAD W/ MAG PLUG 18 MM X | 1 |
| 2 | 3234309 | SCREW, TORX PAN HD M6 X 1 X 16 | 2 |
| 13 | 3234898 | HEX HEAD FLANGE SCREW 8MMX1.25M | 13 |
| 5 | 3235206 | SCREW | 5 |
| 2 | 3235207 | SCREW | 2 |
| 1 | 3235208 | SCREW, 6 MM X 1.0 MM 40 MM | 1 |
| 6 | 3235332 | SOCKET HEAD SCREW, 6 MM X 1 MM | 6 |
| 12 | 3236169 | SCREW CAP, 8 MM X 1.25 MM X 20 | 12 |
| 1 | 3235210 | HEXFLANGE NUT, NYLON, 8 MM X 1. | 1 |
| 2 | 3234091 | CUP WASHER | 2 |
| 2 | 3235211 | WASHER | 2 |
| 1 | 3235212 | WASHER | 1 |
| 1 | 3235991 | WASHER 22.7 X 32 X 1.5 | 1 |
| 1 | 3236410 | WASHER 22.5 X 30 X 1.5 | 1 |
| 2 | 3234330 | PIN, DOWEL, 6 X 20 | 2 |
| 1 | 7043746 | SPRING-SLOTTED PIN,6MM | 1 |
| 1 | 3236286 | DOWEL PIN, 3 X 40 | 1 |
| 2 | 3236295 | PIN,DOWEL 6X10 | 2 |
| 2 | 7710434 | SNAP RING | 2 |
| 1 | 3233045 | RETAINING RING | 1 |
| 1 | 3233106 | SNAP RING | 1 |
| 1 | 3233834 | RETAINING RING | 1 |
| 1 | 3233364 | RETAINING RING | 1 |
| 1 | 3234269 | RING,RETAININGBASICINTRNL2.047 | 1 |
| 2 | 3234090 | RETAINING RING | 2 |
| 2 | 3234205 | RETAINING RING | 2 |
| 2 | 3235214 | RETAINING RING | 2 |
| 1 | 3235216 | RETAINING RING | 1 |
| 2 | 3233378 | THRUST WASHER | 2 |
| 1 | 3234642 | THRUST WASHER, .446 X .88 X .02 | 1 |
| 1 | 3235883 | SPACER, 19.4 X 34.0 X 2 | 1 |
| 1 | 3233014 | NEEDLE BEARING | 1 |
| 2 | 3233268 | BALL BEARING | 2 |
| 1 | 3233384 | NEEDLE BEARING | 1 |
| 1 | 3235218 | BALL BEARING | 1 |
| 2 | 3235585 | BEARING-BALL 6205R25X52X15 | 2 |
| 1 | 3235328 | BALL BEARING | 1 |
| 2 | 3235588 | BALL BEARING, 6303R | 2 |
| 1 | 3236746 | BEARING-BALL,DGBB-62/32P2 | 1 |
| 3 | 3239477 | BEARING-BALL | 3 |
| 2 | 3234078 | COMPRESSION SPRING | 2 |
| 2 | 3234089 | COMPRESSION SPRING | 2 |
| 1 | 3234276 | TORSION RETURN SPRING | 1 |
| 1 | 3234277 | SPRING,COMPRSSN.54ODX.44IDX.05 | 1 |
| 1 | 3234578 | COMPRESSION DETENT SPRING | 1 |
| 1 | 3235885 | SPRING TORSION | 1 |
| 1 | 3235327 | SPRING WASHER | 1 |
| 3235890 | COVER, SECTOR GEARS MACH | ||
| 1 | 3236120 | SNORKLE TUBE, MACHINED | 1 |
| 1 | 3239366 | CARRIER-DIFFERENTIAL,MACH | 1 |
| 1 | 3233839 | SECTOR GEAR, 16 TOOTH | 1 |
| 1 | 3233832 | SECTOR GEAR, 31 TOOTH CUT TO 11 | 1 |
| 1 | 3235455 | FORK SHIFT | 1 |
| 1 | 3235456 | PARK PLATE | 1 |
| 1 | 3239586 | STAR-DETENT | 1 |
| 1 | 3235223 | IDLER SHAFT, 29 TOOTH | 1 |
| 1 | 3235224 | REVERSE SHAFT, 29 TOOTH | 1 |
| 1 | 3236290 | GEAR,OUTPUT 14T MACH | 1 |
| 1 | 3236411 | OUTPUT SHAFT, FRONT | 1 |
| 1 | 3236289 | GEAR,OUTPUT 14T DISCONNECT MAC | 1 |
| 1 | 3239368 | GEAR-OUTPUT,53T | 1 |
| 1 | 3236238 | BELLCRANK, ZEUS | 1 |
| 1 | 3234073 | SHIFT COLLAR | 1 |
| 1 | 3234230 | TUBE-VENT,90-1/4 HOSE | 1 |
| 1 | 3235229 | STAGE 2 GEAR, 44 TOOTH | 1 |
| 1 | 3235233 | 6 FACE ENGAGEMENT DOG | 1 |
| 1 | 3235236 | STAGE 3 GEAR, 46 TOOTH | 1 |
| 1 | 3235238 | SHIFT SHAFT | 1 |
| 1 | 3235457 | PARK/LOW SHIFT DOG | 1 |
| 1 | 3235542 | SHIFT RAIL, SHAFT | 1 |
| 1 | 3235983 | PARK CAM | 1 |
| 1 | 3235990 | LOW GEAR, 31T | 1 |
| 1 | 3236292 | DIFFERENTIAL PIN | 1 |
| 1 | 3236412 | SNORKEL GEAR, 13 TOOTH | 1 |
| 1 | 3236293 | DOG, ENGAGEMENT | 1 |
| 1 | 3239449 | GEAR-LOW,61T | 1 |
| 1 | 3239529 | GEAR-49T | 1 |
| 1 | 3239561 | DRUM-SHIFT,MACH | 1 |
| 1 | 3239545 | WELD-REAR MNT BRKT | 1 |
| 1 | 3235452 | ROLLER PAWL | 1 |
| 2 | 3235920 | SHIFT FORK SUBASSEMBLY | 2 |
| 1 | 3236140 | PINION SHAFT, 11 TOOTH | 1 |
| 2 | 3236288 | BEVEL PINION, 10T | 2 |
| 3239392 | SUBASSEMBLY, LH CASE | ||
| 1 | 3239476 | SUBASSEMBLY-DIFFERENTIAL | 1 |
| 1 | 3239530 | SUBASSEMBLY- INPUT,45T/25T | 1 |
| 1 | 3239562 | SUBASSEMBLY-COVER,RH | 1 |
| 2 | 3234934 | FORK RETAINER | 2 |
| 1 | 3235241 | CENTER DRIVE BEARING COVER | 1 |
| 2 | 3236294 | WASHER,THRUST 40.83X56.25X0.38 | 2 |
| 1 | 3236343 | MOUNT BRACKET, REAR | 1 |
| 1 | 3235478 | SOLENOID | 1 |
| 1 | 7662299 | RESISTIVE 2 PIN ROTARY SWITCH | 1 |
| 1 | 3234755 | PLUG, M18 X 1.5 | 1 |
| 1 | 3236136 | O-RING, 2.989 X .070 | 1 |
| 1 | 3236141 | VITRON TRIPLE LIP SEAL, 32 X 49 | 1 |
| 1 | 3233836 | O-RING | 1 |
| 1 | 3233828 | O-RING | 1 |
| 2 | 3235052 | VITON TRIPLE LIP SEAL, 40 X 70 | 2 |
| 1 | 3236135 | SEAL, TRIPLE LIP, 25 X 55 X 8 | 1 |
