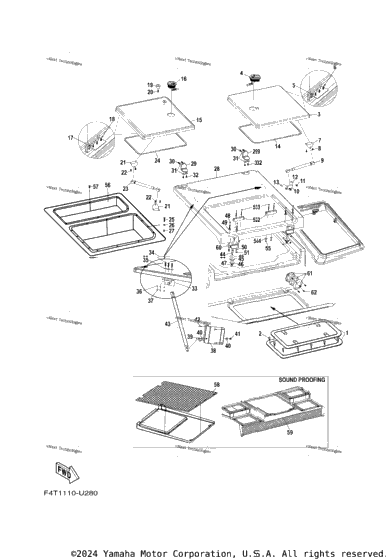

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | F3M-U5131-00-00 | Hatch, Tank 1 | 1 |
| 12 | 90167-08S12-00 | Screw, Tapping | 12 |
| 1 | F4T-U517H-00-00 | Lid Hatch | 1 |
| 2 | F4A-U2816-00-00 | Hinge 1 | 2 |
| 12 | 90162-12SA1-00 | Screw, Tapping | 12 |
| 1 | F3F-U2899-00-00 | Bracket, Hatch Support 2 | 1 |
| 2 | 90167-10S08-00 | Screw, Tapping | 2 |
| 1 | F4T-U2896-00-00 | Support, Hatch 2 | 1 |
| 1 | F1C-U2899-00-00 | Bracket, Hatch Support 2 | 1 |
| 2 | 90157-10S16-00 | Screw, Pan Head | 2 |
| 2 | 90201-10S00-00 | Washer, Plate | 2 |
| 2 | 90185-10S00-00 | Nut, Self-Locking | 2 |
| 1 | F4A-U3262-50-00 | Seal | 1 |
| 1 | F4T-U517H-10-00 | Lid Hatch | 1 |
| 1 | F1C-U5741-01-00 | Cushion, Rubber | 1 |
| 1 | 90167-06S10-00 | Screw, Tapping | 1 |
| 2 | F3F-U2899-00-00 | Bracket, Hatch Support 2 | 2 |
| 4 | 90167-10S08-00 | Screw, Tapping | 4 |
| 1 | F4T-U2896-10-00 | Support, Hatch 2 | 1 |
| 1 | F4T-U3262-20-00 | Seal | 1 |
| 14 | 90151-14S24-00 | Screw, Countersunk | 14 |
| 14 | 90201-14S00-00 | Washer, Plate | 14 |
| 14 | 90185-14S00-00 | Nut, Self-Locking | 14 |
| 1 | F3M-U516A-00-00 | Engine Hatch Comp | 1 |
| 2 | F1T-U2826-20-00 | Hinge 5 | 2 |
| 4 | 90149-14SD2-00 | Screw | 4 |
| 8 | 90209-14SA2-00 | Washer | 8 |
| 4 | 90149-14SA1-00 | Screw | 4 |
| 2 | F3M-U288B-10-00 | Base, Hatch Support | 2 |
| 6 | 90152-14S24-00 | Screw, Countersunk | 6 |
| 6 | 90201-14S00-00 | Washer, Plate | 6 |
| 6 | 90209-14SA6-00 | Washer | 6 |
| 6 | 90185-14S00-00 | Nut, Self-Locking | 6 |
| 2 | F3M-U2899-10-00 | Bracket, Hatch Support 2 | 2 |
| 2 | F3M-U146E-00-00 | Stud, Joint Ball | 2 |
| 4 | 90201-15S00-00 | Washer, Plate | 4 |
| 2 | 90185-15S00-00 | Nut, Self-Locking | 2 |
| 8 | 90160-12S16-00 | Screw, Round Tapping | 8 |
| 2 | F3M-U2896-10-00 | Support, Hatch 2 | 2 |
| 2 | GP1-U3774-01-00 | Pin | 2 |
| 6 | 90209-17SA5-00 | Washer | 6 |
| 2 | GP1-U5194-01-00 | Washer, Special | 2 |
| 2 | 95680-10100-00 | Nut, U | 2 |
| 4 | 90152-14S40-00 | Screw, Countersunk | 4 |
| 4 | 90209-14SA6-00 | Washer | 4 |
| 4 | 90201-14S00-00 | Washer, Plate | 4 |
| 4 | 90185-14S00-00 | Nut, Self-Locking | 4 |
| 2 | F1C-U3748-11-00 | Bracket, Seat Fitting | 2 |
| 4 | 90152-10S36-00 | Screw, Countersunk | 4 |
| 4 | 90209-10SB1-00 | Washer | 4 |
| 4 | 90185-10S00-00 | Nut, Self-Locking | 4 |
| 1 | F4T-U4629-10-00 | Tray | 1 |
| 90151-08SA2-00 | Screw, Countersunk | ||
| 1 | F4T-U5164-00-00 | Sound-Proof 1 | 1 |
| 1 | F4T-U5165-00-00 | Sound-Proof 2 | 1 |
| 2 | GJ3-63850-03-00 | Seat Lock Assy | 2 |
| 1 | F2D-U273A-00-00 | Plate 2 Assy | 1 |
| 4 | 90161-08SA4-00 | Screw, Tapping | 4 |
| 2 | F3H-U5540-00-00 | Lock Assy | 2 |
| 1 | F3H-U2844-00-00 | . .Lever, Hatch Lock | 1 |
