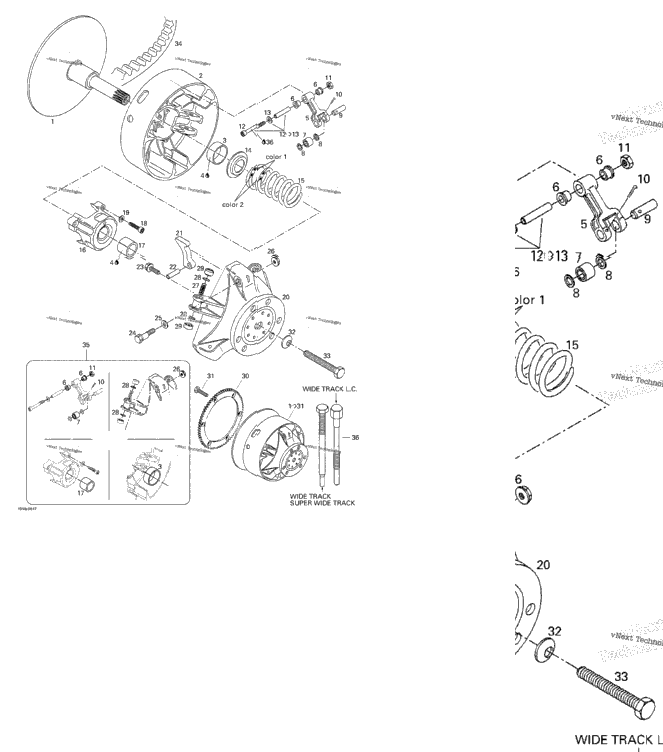

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 417011004 | Drive Pulley Ass'y Includes 1 - 31. Skandic Wide Track. | ||
| 417011003 | Drive Pulley Ass'y Skandic Super Wide Track. | ||
| 417011005 | Drive Pulley Ass'y Skandic Wide Track LC. | ||
| 417003502 | Inner Half Ass'y Skandic Wide Track. Skandic Wide Track LC. | ||
| 417003500 | Inner Half Ass'y Skandic Super Wide Track. | ||
| 417003700 | OUTER HALF ASS'Y Includes 2 - 3. | ||
| 1 | 417004201 | Bushing | 1 |
| 1 | 413703100 | Loctite 609, 10 ml | 1 |
| 417003800 | Lever Ass'y Includes 5 - 6. | ||
| 6 | 417004305 | Bushing | 6 |
| 3 | 417003900 | Roller Ass'y | 3 |
| 6 | 417004302 | Stopper Washer | 6 |
| 3 | 417004303 | Pin Skandic Wide Track. Skandic Wide Track LC. | 3 |
| 3 | 417004304 | Pin Skandic Super Wide Track. | 3 |
| 3 | 732958001 | Cotter Pin | 3 |
| 3 | 228561045 | Elastic Stop Nut M6 | 3 |
| 3 | 417004800 | SCREW ASSY Includes 12 - 13. | 3 |
| 3 | 222965065 | Allen Screw M6 X 50 | 3 |
| 3 | 224061151 | Washer 6 mm | 3 |
| 417005000 | Spring Seat | ||
| 414689700 | SPRING, YELLOW/ORANGE Skandic Wide Track. | ||
| 1 | 414818000 | SPRING (YELLOW/BLUE) Skandic Super Wide Track. | 1 |
| 1 | 414817500 | CLUTCH SPRING, RED/YELLOW Skandic Wide Track LC. | 1 |
| 417004000 | Spring Cover Ass'y Includes 16 - 17. | ||
| 1 | 417004501 | Bushing | 1 |
| 222964066 | Allen Screw M6 x 40 | ||
| 420245370 | WASHER | ||
| 417004700 | Gouvernor Cup Ass'y | ||
| 417005290 | Ramp 290 Skandic Wide Track. Skandic Super Wide Track. | ||
| 417005146 | Ramp 146 Skandic Wide Track LC. | ||
| 732804009 | Pin M8 X 24 | ||
| 732601249 | Hex. Locking Screw M6 x 18 | ||
| 3 | 417005500 | Calibration Screw | 3 |
| 3 | 417005600 | Washer | 3 |
| 3 | 228467045 | Locking Nut M6 | 3 |
| 3 | 417005700 | Spring | 3 |
| 6 | 732401030 | O-Ring | 6 |
| 6 | 417005800 | Slider Shoe | 6 |
| 415043100 | Ring Gear (86 tooth) | ||
| 6 | 732601246 | Screw M8 x 16 | 6 |
| 1 | 732900026 | Conical Spring Washer Skandic Wide Track. Skandic Super Wide Track. | 1 |
| 1 | 732900021 | Conical Spring Washer Skandic Wide Track LC. | 1 |
| 1 | M40800 | Screw 1/2-20X6 1/2 Skandic Wide Track. Skandic Super Wide Track. | 1 |
| 1 | 417120000 | Drive Pulley Bolt Skandic Wide Track LC. | 1 |
| 1 | 414633800 | Drive Belt | 1 |
| 417008500 | Clutch Repair Kit | ||
| 1 | 529007900 | Puller Inner Half Skandic Wide Track. Skandic Super Wide Track. | 1 |
| 1 | 529022400 | Puller Inner Half Skandic Wide Track LC. | 1 |
| 861764200 | High Altitude Kit (Not Shown) Skandic Wide Track. | ||
| 861764300 | High Altitude Kit (Not Shown) Skandic Super Wide Track. | ||
| 861764100 | High Altitude Kit (Not Shown) Skandic Wide Track LC. |
